Overview

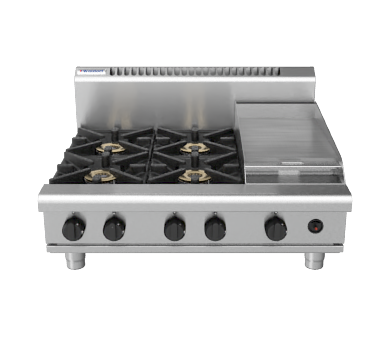

Waldorf RN8603G-B 800 Series 900mm Gas Cooktop with Griddle – Bench Model

The Waldorf RN8603G-B is a 900mm bench-model gas cooktop from the trusted 800 Series, combining four open burners with a 300mm smooth griddle plate in a single, compact unit. Each open burner delivers 28MJ/hr, while the dedicated griddle burner operates at 20MJ/hr, providing versatile high-output cooking capability suited to demanding commercial kitchen environments. Compatible with both natural gas and LPG, the unit is constructed from heavy-duty 304 stainless steel and is manufactured in New Zealand.

Designed with the working kitchen in mind, the RN8603G-B features flame failure protection on every burner for added safety, removable cast iron burners and vitreous enamel pot stands for straightforward cleaning, and heavy-duty reinforced control knobs for reliable daily use. Adjustable feet and two additional rollers allow for easy positioning and levelling on site. The 300mm griddle is positioned on the right-hand side as standard, and the unit's modular 800 Series design makes it straightforward to install, service, and integrate with other Waldorf equipment.

Key Benefits

• Four 28MJ/hr open burners deliver responsive, high-output heat ideal for rapid cooking across multiple pots simultaneously.
• The integrated 300mm smooth griddle at 20MJ/hr expands cooking versatility without requiring a separate appliance.
• Flame failure protection on all burners automatically cuts gas supply if a flame goes out, improving kitchen safety.
• Vitreous enamel pot stands with extended finger supports allow pots and pans to slide easily between burners, speeding up service.
• Removable cast iron burners and enamel pot stands simplify cleaning, reducing downtime between services.
• Adjustable feet combined with two rollers make positioning, levelling, and relocating the unit quick and straightforward.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, reducing maintenance requirements.
• Dual gas compatibility (natural gas and LPG) provides installation flexibility across a wide range of venue types.
• Modular 800 Series design allows the unit to be paired with other Waldorf 900mm-series equipment to build a cohesive cooking suite.

Key Features

• 4 x 28MJ/hr removable heavy-duty cast iron open burners
• 1 x 20MJ/hr griddle burner with 300mm smooth griddle plate, positioned on the right-hand side as standard
• Total gas output: 112MJ/hr (four open burners) plus 20MJ/hr griddle burner
• Flame failure protection fitted to all burners
• Heavy-duty vitreous enamel pot stands with extended finger supports for easy pan transfer
• Heavy-duty reinforced control knobs
• Thermostatic temperature control with a range of 100–290°C
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish
• Adjustable feet and 2 additional rollers for easy levelling and positioning
• Compatible with both natural gas and LPG (R 3/4 BSP male gas connection)
• Splashback included; no undershelf
• Bench model; part of the modular Waldorf 800 Series
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 31.1 kW
• Temperature Control: Thermostatic
