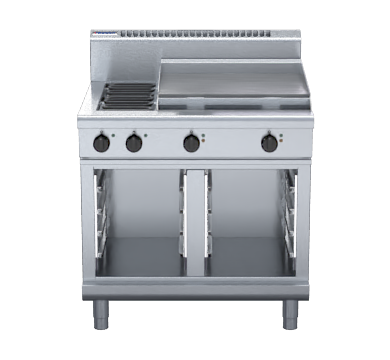

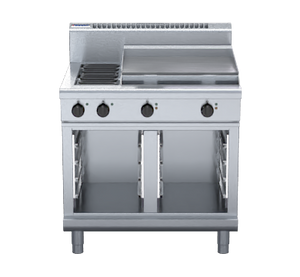

Waldorf RN8606E-CB 800 Series 900mm Electric Cooktop with 600mm Griddle – Cabinet Base

The Waldorf RN8606E-CB is a 900mm wide electric cooktop from the 800 Series, combining two 2.4kW radiant elements with a 600mm griddle section powered by two 3.6kW elements, all mounted on a fully modular cabinet base. Constructed from 304 stainless steel throughout, this unit delivers versatile cooking capability across two distinct cooking zones, making it a practical centrepiece for high-volume commercial kitchens.

The cabinet base is double-skinned with 0.9mm 304 stainless steel on both interior and exterior surfaces, and the unit sits on heavy-duty 63mm diameter stainless steel legs with adjustable feet and two additional rollers for ease of positioning. Every component is designed for straightforward front-access servicing and daily cleaning, reducing downtime in busy kitchen environments. The griddle is positioned on the right-hand side as standard, with optional hot plate elements available for added cooking flexibility.

Key Benefits

• Two distinct cooking zones – radiant elements and a 600mm griddle – allow different cooking methods to run simultaneously, increasing kitchen throughput.
• The 50–320°C thermostat per 300mm griddle section gives precise independent temperature control across the griddle surface, supporting delicate and high-heat cooking side by side.
• Six temperature settings plus a simmer setting on radiant elements provide broad heat range versatility for sauces, stocks and high-output frying.
• Front-access servicing and hinge-up element and griddle sections mean maintenance can be completed without moving the unit, minimising kitchen disruption.
• Removable vitreous enamelled element module and hob spill trays simplify daily cleaning and reduce the risk of grease build-up.
• Adjustable feet and two additional rollers make installation and repositioning straightforward, even in tight kitchen layouts.
• Fully modular cabinet base is designed to match suite finishes, allowing the unit to integrate cleanly into a coordinated Waldorf 800 Series line-up.
• Optional hot plate elements and an optional GN 1/1 four-position racking kit for the cabinet base extend the unit's functionality without requiring additional equipment.
• Heavy-duty reinforced control knobs with easy-view settings and indicator lights for power and heating on each element improve operational clarity and safety during service.

Key Features

• 2 x 2.4kW open radiant elements set in heavy-duty welded element frames
• 2 x 3.6kW griddle elements powering a 600mm griddle section, positioned on the right-hand side as standard
• 12mm thick mild steel griddle plates for even heat retention and durability
• 2.5mm 304 stainless steel griddle splash guards
• 50–320°C thermostat per 300mm griddle section providing independent zone control
• Six temperature settings plus a simmer setting on radiant element controls
• Energy regulator controls for both radiant and hot plate elements
• Indicator lights for power and heating status on each element control
• Large heat-resistant reinforced control knobs with easy-view settings
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays – removable for cleaning
• Hinge-up element and griddle sections for easy access
• All servicing access from the front of the unit
• Aluminised steel internal construction
• Optional hot plate elements with machine-finished 8mm steel plate
• Fully modular cabinet base for matched suite configuration
• Double-skin cabinet base with 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for repositioning ease
• Optional GN 1/1 four-position racking kit for cabinet base
• Refrigerated base condenser removable through the front of the unit (where applicable)
• Heavy-duty stainless steel external finish across all panels

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
