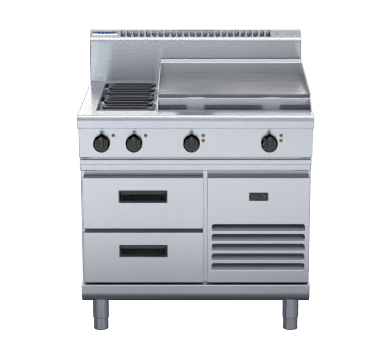

Waldorf RN8606E-RB 800 Series 900mm Electric Cooktop with Refrigerated Base

The Waldorf RN8606E-RB brings together a heavy-duty 900mm electric cooktop and an integrated refrigerated base into a single modular unit, delivering a complete cook-and-store solution within one footprint. The cooktop incorporates two 2.4kW open radiant elements alongside a 600mm griddle driven by two 3.6kW elements, with all construction carried out in 304 stainless steel, a welded hob, and vitreous enamelled spill trays to ensure long-lasting commercial durability.

The self-contained refrigerated base operates across a temperature range of -2°C to +8°C, is tropical climate rated, and runs on R134a refrigerant with automatic defrost and evaporation of defrost water. Beneath the cooking surface, two GN 1/1 drawers provide accessible cold storage, making this unit well suited to high-volume kitchens where bench space and workflow efficiency are critical priorities.

Key Benefits

• Combining cooking and refrigerated storage in a single footprint conserves valuable kitchen space and streamlines cook-line workflow.
• Radiant elements and independently controlled 300mm griddle sections allow simultaneous cooking at different temperatures, improving service speed.
• Tropical climate rated refrigeration holding between -2°C and +8°C keeps ingredients at safe temperatures even in the most demanding kitchen environments.
• Automatic defrost and automatic evaporation of defrost water reduce daily maintenance demands and the need for manual intervention.
• All service access points, including the condensing unit, are reachable from the front of the unit, minimising downtime during maintenance.
• Hinge-up element and griddle sections together with removable vitreous enamelled modules make post-service cleaning fast and thorough.
• Heavy-duty reinforced control knobs fitted with indicator lights for power and heating status give clear, reliable feedback to kitchen staff under pressure.
• Optional hot plate elements fitted with machine-finished 8mm steel plate offer configuration flexibility to accommodate varying menu requirements.
• A 50mm fully foamed CFC-free insulation core and an evaporator with anti-corrosion treatment support energy efficiency and long-term refrigeration reliability.

Key Features

• Two 2.4kW open radiant elements set in heavy-duty welded element frames
• 600mm griddle powered by two 3.6kW elements with 12mm thick mild steel griddle plates
• Griddle positioned on the right-hand side as standard
• 50°C to 320°C thermostat control per 300mm griddle section
• Six temperature settings plus simmer setting on radiant elements via energy regulator controls
• Indicator lights for power and heating status on each element control
• Large heat-resistant reinforced control knobs with easy-view settings
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Griddle splash guards fabricated from 2.5mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays, removable for cleaning
• Hinge-up element and griddle sections for thorough access during cleaning
• Aluminised steel internal cooktop construction
• Optional hot plate elements: machine-finished 8mm steel plate configuration available
• Self-contained suite-matched modular refrigerated base
• Ventilated refrigeration system using R134a refrigerant
• Operating temperature range of -2°C to +8°C, tropical climate rated
• Two GN 1/1 drawers with 100mm pan depth capacity
• Drawer runners: heavy-duty European telescopic guides for smooth, reliable operation
• Drawer gaskets: magnetic seal design, swappable without any tools required
• Insulation: 50mm fully foamed, CFC-free construction throughout the refrigerated base
• Exterior and interior of refrigerated base finished entirely in 304 stainless steel
• Evaporator features an anti-corrosion treatment; no condensate drain connection is required
• Digital electronic thermostat with automatic defrost and automatic evaporation of defrost water
• Condensing unit removable through the front of the unit for servicing
• Legs: 63mm diameter, fabricated from 1.2mm 304 stainless steel, heavy-duty rated, with adjustable feet
• Two additional rollers included to assist with repositioning the unit

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
