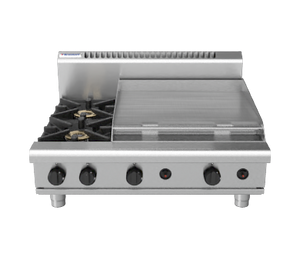

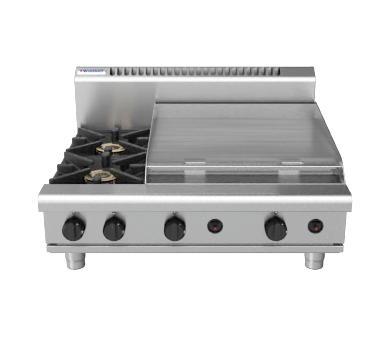

Waldorf RN8606G-B 800 Series 900mm Gas Combination Cooktop with 600mm Griddle – Bench Model

The Waldorf RN8606G-B is a 900mm bench-mounted gas combination unit from the Waldorf 800 Series, pairing two 28MJ/hr open burners on the left with a 600mm smooth griddle plate on the right, powered by two dedicated 20MJ/hr griddle burners. Built from heavy-duty 304 stainless steel and available in both natural gas and LPG configurations, it is designed to handle the continuous demands of busy commercial kitchens, catering operations and venues.

Practical engineering details make this unit straightforward to operate, clean and maintain. Flame failure protection on every burner provides essential safety assurance, while removable cast iron burners, vitreous enamel pot stands with extended finger supports, and heavy-duty reinforced control knobs reflect a construction standard suited to high-volume daily use. Adjustable feet and two additional rollers simplify positioning and levelling on the bench.

Key Benefits

• Two 28MJ/hr open burners deliver rapid, responsive heat for sautéing, boiling and searing, reducing wait times during peak service periods.
• The integrated 600mm smooth griddle, driven by two dedicated 20MJ/hr burners with thermostatic control (100–290°C), allows simultaneous grilling and frying alongside open-burner cooking.
• Flame failure protection on all burners automatically cuts gas if a flame is extinguished, improving kitchen safety and meeting commercial compliance expectations.
• Vitreous enamel pot stands with extended finger supports allow cookware to slide smoothly between burners without lifting, improving workflow speed and reducing spill risk.
• Removable cast iron burners and pot stands simplify deep cleaning and reduce downtime between services.
• Heavy-duty reinforced control knobs withstand the repeated, forceful use typical in professional kitchen environments.
• Adjustable feet and two additional rollers make installation and repositioning straightforward, accommodating uneven floors and bench configurations.
• Modular 800 Series design allows the unit to be combined with other Waldorf modules to build out a full cooking suite tailored to the kitchen's needs.
• Manufactured in New Zealand from 304 stainless steel, the unit is built to local commercial standards with compatibility for both natural gas and LPG supply.

Key Features

• 900mm wide bench model combining a 2-burner open cooktop section and a 600mm griddle plate in a single unit
• 2 x 28MJ/hr heavy-duty removable cast iron open burners
• 2 x 20MJ/hr dedicated griddle burners powering the 600mm smooth griddle surface
• Griddle positioned on the right-hand side as standard
• Thermostatic temperature control on the griddle, ranging from 100°C to 290°C
• Flame failure protection fitted to all burners
• Vitreous enamel pot stands with extended finger supports for easy pan-sliding between burners
• Heavy-duty reinforced control knobs designed for repeated commercial use
• Adjustable feet plus 2 additional rollers for flexible installation and easy repositioning
• Heavy-duty 304 stainless steel construction throughout
• Splashback included; no undershelf
• Compatible with natural gas and LPG (R 3/4 BSP male gas connection)
• Total gas input rating: 96MJ/hr
• Total power rating: 15.6kW
• Part of the Waldorf 800 Series modular cooking suite
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 530
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 174
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
