Overview

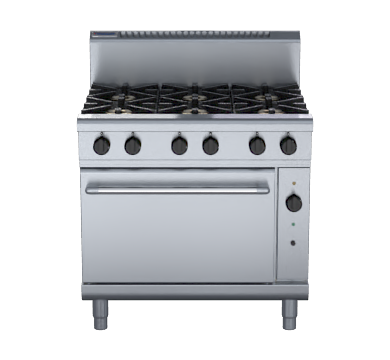

Waldorf RN8610GC 800 Series 900mm Gas Range Convection Oven

The Waldorf RN8610GC is a 900mm wide, six-burner gas range with an integrated 2/1 GN gas convection oven, forming part of the robust Waldorf 800 Series designed for demanding commercial kitchens. Six patented 28MJ/hr open cooktop burners deliver high-output performance across the full-width cooking surface, while the fan-forced convection oven below circulates heat evenly to reduce cooking times and allow lower operating temperatures for optimised results.

Constructed from heavy-duty 304 stainless steel and built in New Zealand, this range combines durable materials with practical design details including removable cast iron burners, vitreous enamel pot stands and a fully welded, vitreous enamel-lined oven cavity. Flame failure protection on every burner, a cool-touch door handle, adjustable feet, and two additional rollers make the unit both safe and straightforward to position, clean, and service in a busy kitchen environment.

Key Benefits

• Six high-output 28MJ/hr open burners provide consistent, powerful heat across the cooktop for simultaneous multi-pot cooking
• Fan-forced convection circulation reduces cooking times and enables lower oven temperatures, saving energy and improving food quality
• 2/1 GN oven capacity supports full gastronorm trays, maximising batch output for high-volume services
• Flame failure protection on all burners automatically cuts gas flow if a flame extinguishes, enhancing kitchen safety
• Vitreous enamel oven lining and pot stands resist staining and are simple to wipe down, reducing cleaning time between services
• Removable cast iron burners allow quick, thorough cleaning and straightforward component replacement when needed
• Adjustable feet plus two rollers make levelling and repositioning the unit easy during installation or kitchen reconfiguration
• Heavy-duty reinforced control knobs and a welded oven door frame withstand the rigours of continuous commercial use
• Compatible with both natural gas and LPG, offering flexibility across different site configurations

Key Features

• Six-burner gas cooktop range on a 900mm wide footprint
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan
• Six x 28MJ/hr patented open cooktop burners; total gas rating 168MJ/hr
• Flame failure protection on every burner
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands for durable, cleanable burner support
• Welded oven cavity fully lined with vitreous enamel for even heat retention and easy cleaning
• Cast iron sole plates in the oven ensure uniform heat distribution across the base
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel door handle for safe handling during service
• Thermostatic oven temperature control, variable between 150°C and 300°C
• Analog display and heavy-duty reinforced control knobs
• Constructed from 304 stainless steel with a heavy-duty finish
• Integrated splashback included
• Adjustable feet plus two additional rollers for easy levelling and repositioning
• Electric supply for oven fan motor: 0.13kW, single phase, 230-240V AC, 50/60Hz, 10A cordset fitted
• Accepts natural gas or LPG with R 3/4 BSP male gas connection
• Two oven shelves included
• 24-month warranty on parts and labour
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
