Overview

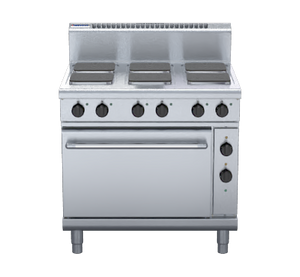

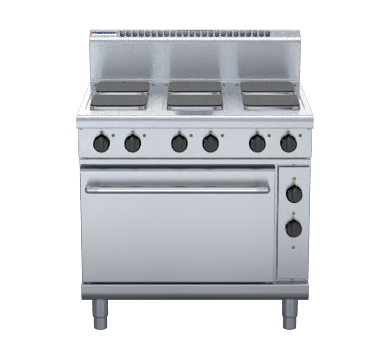

Waldorf RN8610SE 800 Series 900mm Electric Sealed Hobs Range Static Oven

The Waldorf RN8610SE is a heavy-duty 900mm commercial range combining six sealed electric cooktop zones with a full-capacity 2/1 GN electric static oven, purpose-built for the demands of high-volume professional kitchens. The 800 Series construction features a fully welded stainless steel hob top, vitreous enamelled oven liner, and aluminised steel internal construction, delivering lasting durability and straightforward daily maintenance.

Six independent 2.6kW cast iron elements, each fitted with thermal overload protection, provide reliable and responsive surface cooking, while the static oven delivers precise thermostatic control across a 50 to 320°C range via separate bottom and top heating elements for versatile baking, roasting, and holding applications. Three-phase power, a generous GN 2/1 oven cavity with four-position racking, and a heavy-duty stainless steel exterior make the RN8610SE a practical centrepiece for any commercial kitchen line.

Key Benefits

• Six independent sealed cooktop zones allow multiple dishes to be prepared simultaneously at different heat levels, maximising throughput during busy service periods.
• Dedicated bottom element rated at 4.5kW paired with a 2.0kW top element gives chefs precise control over heat distribution, supporting a wide variety of baking and roasting outcomes.
• The 50 to 320°C thermostatic range accommodates everything from gentle warming and proofing through to high-temperature roasting, reducing the need for additional equipment.
• GN 2/1 oven capacity with four-position racking handles full gastronorm trays, aligning with standard commercial kitchen workflows and reducing pan transfer time.
• Cast iron hot plate elements retain and distribute heat evenly, reducing hot spots and delivering consistent cooking results across the entire element surface.
• Thermal overload protection on each cooktop element safeguards against overheating, extending element life and contributing to safer kitchen operation.
• Vitreous enamelled oven liner and control panel resist staining and are straightforward to wipe clean, minimising downtime between services.
• Individual power indicator lights for each element allow kitchen staff to confirm active zones at a glance, supporting safe and efficient cooktop management.
• Heavy-duty stainless steel exterior and robust welded construction are designed for the rigours of continuous commercial use with minimal maintenance requirements.

Key Features

• Six sealed electric cooking zones on a welded one-piece 2.0mm 304 stainless steel hob top
• Six independently rated 2.6kW cast iron hot plate elements, each incorporating thermal overload protection
• Six-position heat switch per cooktop element for precise output control
• Large heat-resistant reinforced control knobs for cooktop operation
• Individual power indicator light for each element
• 2/1 GN electric static oven with a 4.5kW lower heating element and a separate 2.0kW upper heating element
• 50 to 320°C thermostatic oven temperature control
• Fully welded vitreous enamelled oven liner for easy cleaning and durability
• GN 2/1 oven cavity with four-position racking system
• Cast iron even-heat oven sole plate for consistent base temperature
• Heavy-duty easy-remove chrome wire rack supports
• Supplied with two chrome wire oven racks
• Welded frame drop-down oven door incorporating a robust spring hinge assembly; door outer constructed from 0.9mm 304 stainless steel sheet with a 1.0mm press-formed vitreous enamelled inner panel
• Low-temperature stainless steel door handle secured by cast metal mounting brackets
• High-density fibreglass oven door insulation
• Vitreous enamelled control panel
• Galvanised steel chassis with fully welded frame construction
• Splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven side panels fabricated from 0.9mm 304 stainless steel
• Aluminised steel internal cooktop construction
• 150mm legs in 63mm diameter 1.2mm 304 stainless steel tube with adjustable feet
• Heavy-duty stainless steel exterior finish throughout
• Three-phase electrical connection
• 900mm wide footprint suited to standard commercial kitchen configurations

Specifications

• Weight (kg): 340.0
