Overview

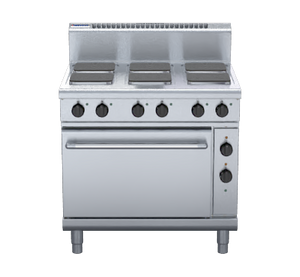

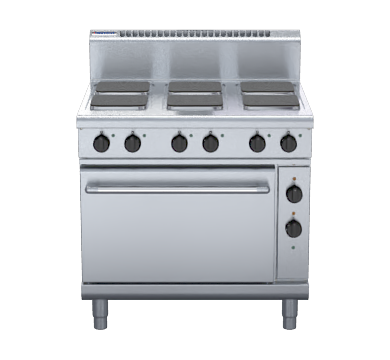

Waldorf RN8610SEC 800 Series 900mm Electric Sealed Hobs Range Convection Oven

The Waldorf RN8610SEC is a 900mm wide, 800 Series combination range featuring six sealed cast iron electric cooktop zones positioned above a GN 2/1 fan-forced convection oven. The unit is engineered for the demands of high-volume commercial kitchens, combining a robust galvanised steel chassis with fully welded 304 stainless steel exterior panels, a vitreous enamelled oven liner and high-density fibreglass insulation for lasting durability and efficient heat retention.

The convection oven delivers even, consistent heat throughout its GN 2/1 interior via a 200mm diameter heavy-duty circulation fan driven by a 100W motor, with thermostatic control adjustable from 50 to 320°C. A cast iron oven sole plate supports consistent base heat distribution, while the oven door is fitted with a robust spring hinge mechanism and a heat-resistant stainless steel handle for safe, convenient access during busy service periods.

Key Benefits

• Fan-forced convection heat circulates evenly throughout the GN 2/1 oven cavity, delivering consistent baking and roasting results across multiple trays simultaneously.
• Six independent cast iron cooktop elements with six-position heat switches give chefs precise, flexible control over a wide range of cooking tasks at the same time.
• Thermal protection on each 2.6kW cast iron hot plate element guards against overheating, extending element life and reducing maintenance downtime.
• GN 2/1 drawer capacity with four-position racking accommodates full-size gastronorm pans, maximising batch cooking output during peak service.
• Vitreous enamelled oven liner and control panel resist staining and make post-service cleaning faster and easier.
• Heavy-duty stainless steel exterior and galvanised steel chassis are built to withstand the physical demands of a busy commercial kitchen environment.
• Individual power indicator lights for each element allow staff to monitor cooktop status at a glance, reducing the risk of leaving elements on inadvertently.
• Adjustable feet on heavy-duty 63mm diameter legs measuring 150mm in height allow precise levelling on uneven kitchen floors and facilitate easy cleaning underneath the unit.
• Supplied with two chrome wire oven racks and a 1.2mm stainless steel splashback, providing practical ready-to-use value straight out of the box.

Key Features

• 900mm wide 800 Series combination range with six sealed electric cooktop zones over a GN 2/1 convection oven
• Six 2.6kW cast iron hot plate elements, each with thermal protection and a six-position heat switch
• Oven heating: 4.5kW bottom element and 2.0kW top element, totalling 6.5kW
• 100W heavy-duty fan motor driving a 200mm diameter heavy-duty circulation fan for even heat distribution
• 50°C to 320°C thermostatic control
• Cast iron even-heat oven sole plate for consistent base temperature
• GN 2/1 oven capacity with four-position racking and heavy-duty easy-remove chrome wire rack supports
• Fully welded and vitreous enamelled oven liner
• High-density fibreglass insulated oven cavity
• Welded frame drop-down oven door incorporating a robust heavy-duty spring hinge mechanism
• Door construction: outer skin in 0.9mm 304 stainless steel; inner skin is a 1.0mm press-formed vitreous enamelled panel
• Low-temperature stainless steel door handle mounted on cast metal brackets, designed to remain cool during operation
• Galvanised steel chassis with welded hob
• One-piece formed hob top in 2.0mm 304 stainless steel
• Splashback and hob sides constructed from 1.2mm 304 stainless steel
• Front panels and oven side panels fabricated from 0.9mm 304 stainless steel
• Legs: 63mm diameter, 150mm tall, formed from 1.2mm 304 stainless steel tube with adjustable feet
• Aluminised steel internal cooktop construction
• Vitreous enamelled control panel
• Large heat-resistant reinforced control knobs for cooktop elements
• Individual power indicator light for each element control
• Supplied with two chrome wire oven racks and a 1.2mm stainless steel splashback
• Dimensions: 900mm W x 805mm D x 1130mm H
• Packed weight: 263kg

Specifications

• Weight (kg): 340.0
