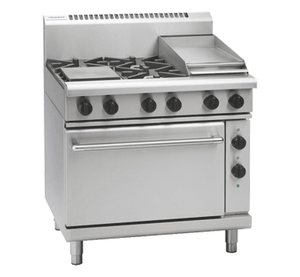

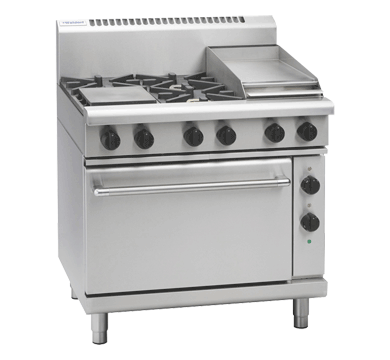

Waldorf RN8613GE 800 Series 900mm Gas Range with Electric Static Oven

The Waldorf RN8613GE is a 900mm wide commercial range from the 800 Series, combining a four-burner gas cooktop with a 300mm smooth griddle over a 2/1 GN electric static oven. Built in New Zealand from 304 stainless steel, it is engineered for demanding commercial kitchen environments where consistent cooking performance and durability are essential throughout long service periods.

The cooktop delivers a total of 112MJ/hr across four 28MJ/hr open burners and a dedicated 20MJ/hr griddle burner, while the electric static oven operates on a thermostatic control between 150 and 300°C with a cast iron sole plate for even heat distribution. Designed for straightforward cleaning, installation and servicing, the unit is available in both natural gas and LPG configurations and suits high-volume kitchens where simultaneous cooktop and oven output is required.

Key Benefits

• Four high-output 28MJ/hr open burners plus a 300mm griddle give chefs flexible, simultaneous cooking across multiple preparations without compromising heat output.
• The 2/1 GN electric static oven accommodates full gastronorm trays, maximising usable capacity for roasting, baking and holding in a single compact footprint.
• Flame failure protection on all burners automatically cuts gas flow if a flame is extinguished, reducing safety risk during continuous high-volume service.
• Cast iron sole plate in the oven promotes even heat distribution, resulting in consistent baking and roasting outcomes across the full oven cavity.
• Vitreous enamel oven lining and pot stands resist grease build-up and withstand daily cleaning, reducing maintenance time and extending service life.
• Adjustable feet and two additional rollers make repositioning the unit straightforward during kitchen reconfiguration or deep cleaning.
• Cool-touch stainless steel door handle and a drop-down door with welded frame allow safe, easy oven access during busy service without risk of burns.
• Available in both natural gas and LPG versions, the unit adapts to different site gas supply configurations without requiring a different model.
• A 24-month parts and labour warranty backs the investment, providing confidence for commercial operators purchasing for long-term kitchen use.

Key Features

• Four-burner gas cooktop with integrated 300mm smooth griddle positioned on the right-hand side as standard
• 2/1 GN electric static oven with thermostatic temperature control ranging from 150°C to 300°C
• Four open burners each rated at 28MJ/hr; dedicated griddle burner rated at 20MJ/hr; total gas rating 112MJ/hr
• Flame failure protection fitted to all burners for continuous safe operation
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands that are removable for thorough cleaning
• Cast iron sole plate in oven cavity for consistent, even heat distribution
• Oven cavity welded construction with vitreous enamel lining for durability and ease of cleaning
• Drop-down oven door with welded frame for robust, long-term operation
• Cool-touch stainless steel oven door handle for safe access during service
• Heavy-duty reinforced control knobs designed to withstand continuous commercial use
• 304 stainless steel construction throughout
• Splash back included as standard
• Adjustable feet plus two additional rollers for levelling and repositioning
• Electrical connection options: 6.5kW single phase (1P+N+E, 27A) or 6.5kW three phase (3P+N+E, 10A)
• Gas connection: R 3/4 BSP male fitting; compatible with natural gas and LPG
• Two oven shelves included
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
