Overview

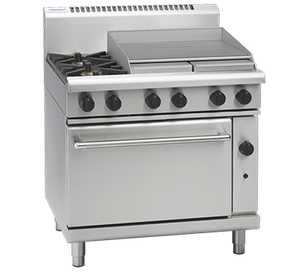

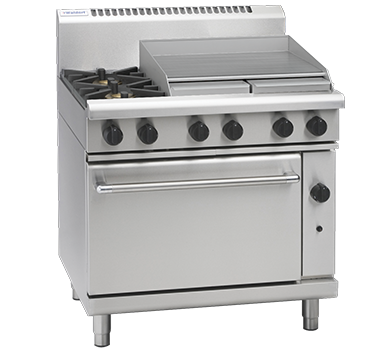

Waldorf RN8616G 800 Series 900mm Gas Range Static Oven with 2 Burner Cooktop and 600mm Griddle

The Waldorf RN8616G is a 900mm modular gas range from the renowned 800 Series, combining a two-burner open cooktop and a 600mm smooth griddle surface above a 2/1 GN gas static oven. Constructed from 304 stainless steel and built in New Zealand, it is engineered to withstand the rigours of high-volume commercial kitchens, offering a total burner output of 56 MJ/h across the open burners and thermostatic oven temperature control between 150 and 300°C.

The cooktop features patented 28 MJ/hr open burners alongside 20 MJ/hr griddle burners, all protected by flame failure devices for safe continuous operation. The oven cavity is welded and vitreous enamel lined for easy cleaning and even heat retention, while thoughtful design details such as adjustable feet, two rollers, a drop-down welded-frame door, and cool-touch door handle make daily use, cleaning, and servicing straightforward. The griddle is positioned on the right-hand side as standard, and the unit is compatible with both natural gas and LPG.

Key Benefits

• Versatile cooking surface combining two high-output open burners and a 600mm smooth griddle lets kitchen teams handle multiple cooking tasks simultaneously without switching equipment.
• Flame failure protection on every burner automatically cuts gas supply if the flame is extinguished, improving safety in busy kitchen environments.
• Vitreous enamel oven lining and welded cavity construction deliver consistent, even heat for reliable baking and roasting results while making clean-up significantly faster.
• Thermostatic oven control across a 150-300°C range gives chefs precise temperature management for a wide variety of menu items.
• Adjustable feet combined with two integrated rollers allow easy repositioning and levelling during installation or kitchen reconfiguration.
• Removable cast iron burners and vitreous enamel pot stands simplify daily cleaning and routine maintenance without the need for specialist tools.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, providing flexibility across different venue gas supplies.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle withstand the repeated use and high ambient temperatures typical of commercial kitchens.
• 24-month warranty and New Zealand manufacture reflect a commitment to long-term reliability and accessible after-sales support.

Key Features

• 900mm wide 800 Series modular gas range configuration
• Two-burner open cooktop paired with a 600mm smooth griddle surface (griddle positioned on right-hand side as standard)
• 2 x 28 MJ/hr patented open cooktop burners
• 2 x 20 MJ/hr griddle burners
• Total burner output: 56 MJ/h (15.6 kW)
• 2/1 GN gas static oven with thermostatic control, 150-300°C temperature range
• Flame failure protection on all burners
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Oven cavity welded and fully lined with vitreous enamel for even heat and easy cleaning
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs
• Adjustable feet and two additional rollers for levelling and mobility
• Stainless steel splashback included
• 2 oven shelves included
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; gas connection R 3/4 (BSP) male
• Analog temperature display
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 56
• Shipping Weight: 274
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 15.6 kW
• Temperature Control: Thermostatic
• Display Type: Analog
