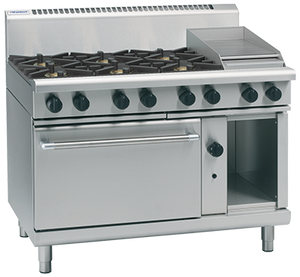

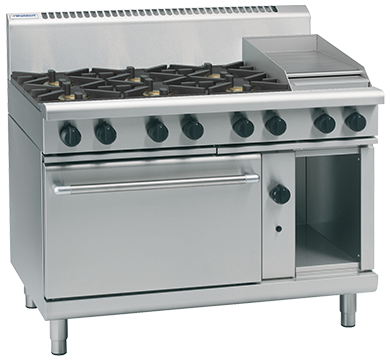

Waldorf RN8813G 800 Series 1200mm Gas Range Static Oven with 6 Burners and 300mm Griddle

The Waldorf RN8813G is a 1200mm wide commercial gas range from the 800 Series, combining a six-burner cooktop and a 300mm smooth griddle with a 2/1 GN gas static oven below. Built in New Zealand from 304 stainless steel, it is engineered for the rigorous demands of high-volume commercial kitchens, delivering a total output of 46.7 kW across six 28 MJ/hr open burners and a dedicated 20 MJ/hr griddle burner. The griddle is positioned on the right-hand side as standard, and a storage cabinet on the right provides convenient access to frequently used items.

Safety and ease of operation are central to the design, with flame failure protection on all burners, heavy-duty reinforced control knobs, and a cool-touch stainless steel door handle. The drop-down oven door features a welded frame, and the oven interior is welded and lined with vitreous enamel for straightforward cleaning and long service life. Adjustable feet and two additional rollers make installation and repositioning practical, and the unit is compatible with both natural gas and LPG supply.

Key Benefits

• Flame failure protection on every burner provides an automatic safety shut-off, reducing risk in busy kitchen environments.
• Six 28 MJ/hr open burners plus a dedicated 20 MJ/hr griddle burner deliver high, responsive heat output to handle simultaneous cooking tasks at pace.
• The 2/1 GN static oven with a thermostatically controlled temperature range of 150 to 300°C ensures consistent, even results for baking and roasting across four shelf positions.
• Vitreous enamel oven lining and vitreous enamel pot stands resist staining and are straightforward to wipe down, reducing cleaning time between services.
• Removable cast iron burners and pot stands simplify maintenance and allow thorough cleaning without specialist tools.
• Adjustable feet combined with two integrated rollers make it easy to level the unit on uneven floors and to shift it for cleaning or servicing.
• Compatible with both natural gas and LPG, offering flexibility across different site installations.
• A right-hand storage cabinet keeps essential items accessible at the cooking station without cluttering the workspace.
• 304 stainless steel construction with heavy-duty reinforced control knobs supports long-term durability under continuous commercial use.

Key Features

• Six-burner cooktop with integrated 300mm smooth griddle on the right-hand side as standard
• Six open burners each rated at 28 MJ/hr
• Dedicated griddle burner rated at 20 MJ/hr
• 2/1 GN gas static oven with thermostatically controlled temperature range of 150 to 300°C
• Four oven shelves included
• Flame failure protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands that are removable for cleaning
• Oven interior welded and lined with vitreous enamel
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs with analogue display
• Storage cabinet on the right-hand side
• Splashback included
• Adjustable feet and two additional rollers for levelling and mobility
• 304 stainless steel construction throughout
• R 3/4 BSP male gas connection
• Accepts natural gas or LPG supply
• Made in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Shipping Weight: 180
• Packed Width (mm): 1200.0
• Packed Height (mm): 1250.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 1.200000000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 6
• Griddle Surface: Smooth
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
• Display Type: Analog
