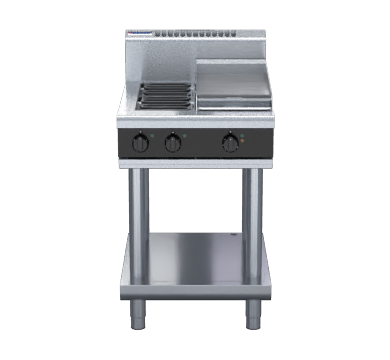

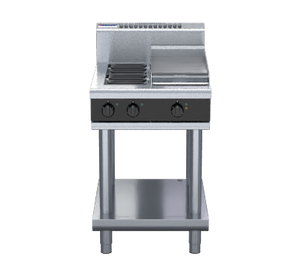

Waldorf RNB8403E-LS Bold 600mm Electric Cooktop with Leg Stand

The Waldorf Bold RNB8403E-LS is a 600mm electric cooktop mounted on a leg stand, pairing two 2.4kW open radiant elements with a 300mm griddle section driven by a dedicated 3.6kW element. The entire unit is built from 304 stainless steel throughout, featuring a welded hob in 1.5mm material with a bull nose edge, 1.2mm splashback and side panels, 0.9mm front panels, and an aluminised steel internal structure, delivering the durability and finish quality demanded in high-volume commercial kitchen environments.

Forming part of the fully modular Waldorf Bold suite, this unit is supplied with the griddle located on the right-hand side as standard and is available in black as the default colour with additional colour options. The leg stand uses 63mm diameter 1.2mm 304 stainless steel heavy-duty legs with adjustable feet and two rollers for easy repositioning, and the whole stand assembles quickly without any tools. Six temperature settings including a simmer position, per-section thermostat control on the griddle, and front-access servicing make this a practical, low-maintenance solution for busy kitchens.

Key Benefits

• Dual 2.4kW radiant elements deliver responsive, even heat suitable for a wide range of cookware and cooking techniques across busy service periods.
• The 300mm griddle section with a dedicated 3.6kW element and a 50–320°C thermostat provides precise, consistent surface temperatures for grilling, searing and breakfast service.
• Six temperature settings including a dedicated simmer position give cooks fine control over heat output, reducing the risk of scorching delicate sauces or ingredients.
• Removable vitreous enamelled spill trays and hinge-up element and griddle sections make cleaning fast and thorough, minimising downtime between services.
• All serviceable components are accessible from the front of the unit, simplifying routine maintenance and reducing the time and cost of call-outs.
• The leg stand's adjustable feet and two integrated rollers allow the unit to be levelled on uneven floors and repositioned without heavy lifting.
• Modular construction allows the RNB8403E-LS to be paired with other Waldorf Bold units to create a matched, seamless suite configuration.
• Optional hot plate elements provide flexibility to reconfigure the cooktop surface as cooking demands change over time.
• Heavy-duty reinforced control knobs with easy-view settings and individual power and heating indicator lights support accurate, at-a-glance operation during peak service.

Key Features

• 2 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• 1 x 3.6kW griddle element powering a 300mm griddle section, positioned on the right-hand side as standard
• Six temperature settings with dedicated simmer setting for radiant elements
• 50–320°C thermostat control per 300mm griddle section
• Energy regulator controls for both radiant and hot plate elements
• Individual power and heating indicator lights for each element control
• Large heat-resistant reinforced control knobs with easy-view settings
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Griddle plates manufactured from 12mm mild steel, each protected by 2.5mm 304 stainless steel splash guards on the griddle perimeter
• Aluminised steel internal construction
• Vitreous enamelled element module spill tray and stainless steel hob spill tray, both removable
• Hinge-up element and griddle sections for thorough cleaning access
• Front-access design for all servicing and maintenance
• Optional 2.0kW hot plate elements available, fitted with a machine-finished 8mm steel plate cooking surface
• Leg stand incorporating 63mm diameter heavy-duty legs in 1.2mm 304 stainless steel
• Adjustable feet and 2 additional rollers for levelling and repositioning
• Stand shelf built to the fully modular framed design, finished in 0.9mm 304 stainless steel and requiring no tools to assemble
• Fully modular construction for matched Waldorf Bold suite configuration
• Default colour: black, with additional colour options available

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
