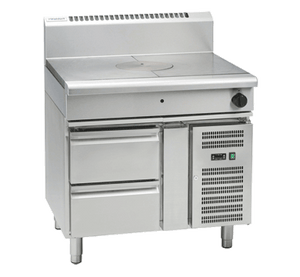

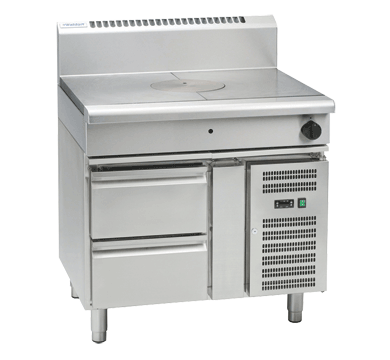

Waldorf RNL8100G-RB 800 Series 900mm Gas Target Top Low Back Version with Refrigerated Base

The Waldorf RNL8100G-RB combines a powerful 900mm gas target top with an integrated refrigerated base cabinet, delivering a space-efficient cooking and cold storage solution within a single 900mm footprint. Part of the trusted Waldorf 800 Series, this unit is purpose-built for high-volume commercial kitchens including restaurants, cafés, hotels, pubs, and catering operations that demand serious stockpot cooking capacity alongside convenient ingredient storage directly beneath the cooking surface.

The target top features a 45MJ/hr dual ring cast iron burner with flame failure protection and a continuous pilot burner, making it well suited to large cookware, stockpots, wok work, soups, sauces, and bulk food preparation. The low back splash configuration supports ventilation flexibility and suits open kitchen designs, while the refrigerated base maintains temperatures between 0°C and 4°C for safe, accessible cold storage throughout service. Constructed from 304 stainless steel and manufactured in New Zealand, the RNL8100G-RB is engineered for continuous commercial use and straightforward maintenance.

Key Benefits

• Combines high-output gas cooking and refrigerated storage in one 900mm footprint, freeing up valuable kitchen floor space.
• The 45MJ/hr dual ring cast iron burner delivers rapid heat-up and precise flame control, keeping up with peak service demands for boiling, stockpot, and bulk cooking tasks.
• Flame failure protection and a continuous pilot burner provide added safety and operational reliability during busy service periods.
• Integrated refrigerated base keeps ingredients at 0°C to 4°C directly beneath the cooking surface, improving workflow and reducing trips to remote cold storage.
• Low back splash design improves sightlines and ventilation flexibility, making it compatible with open kitchen layouts and modular kitchen suites.
• Adjustable feet and two additional rollers make levelling, repositioning, and accessing the unit for cleaning straightforward.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and resist wear over time.
• 304 stainless steel construction throughout supports hygiene standards and long-term durability in demanding foodservice environments.
• Compatible with both natural gas and LPG, providing installation flexibility across a wide range of commercial premises.

Key Features

• 900mm wide gas target top mounted on a refrigerated base cabinet
• 45MJ/hr dual ring cast iron burner for high-output cooking
• Flame failure protection for safe burner operation
• Continuous pilot burner system for reliable ignition
• Low back splash configuration for improved ventilation and visibility
• Refrigerated base with a temperature range of 0°C to 4°C
• 1.03m³ refrigerated cabinet volume
• Heavy-duty reinforced control knobs with variable high-low temperature control
• Adjustable feet and 2 additional rollers for easy positioning and cleaning access
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Electrical supply: 1.8A, 220-240Vac, 50Hz, 1P+N+E 3-pin 10A plug cordset fitted
• Designed for easy cleaning, installation, and servicing
• Part of the modular Waldorf 800 Series for seamless integration into professional kitchen suites
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Variable High-Low
