Overview

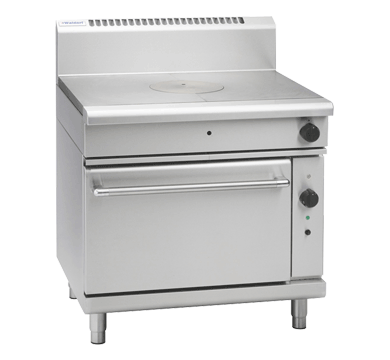

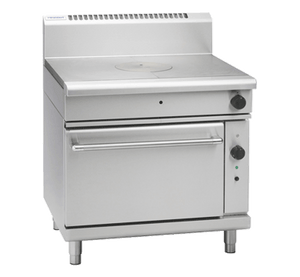

Waldorf RNL8110GC 800 Series 900mm Gas Target Top Convection Oven Range

The Waldorf RNL8110GC is a 900mm wide gas range from the respected 800 Series, combining a 45 MJ/hr dual ring cast iron target top burner with a 2/1 GN gas convection oven below. Built in New Zealand from 304 stainless steel, it is engineered to meet the sustained demands of high-volume commercial kitchens, bakeries, cafes and catering operations.

The fan-forced convection oven delivers consistent, even heat across multiple trays simultaneously, making it well suited to batch baking, roasting and general oven cookery. Flame failure protection, a continuous pilot burner, a vitreous enamel-lined oven cavity, and a low-temperature door handle ensure the unit remains practical and safe throughout long service periods.

Key Benefits

• Fan-forced convection heat circulates evenly throughout the oven cavity, reducing hot spots and producing consistent results across every tray in a batch cook.
• The 2/1 GN oven capacity accommodates full-size gastronorm trays, maximising throughput for busy service periods.
• Flame failure protection automatically cuts gas flow if the burner is extinguished, protecting kitchen staff and meeting safety requirements.
• The continuous pilot burner allows rapid re-ignition and uninterrupted operation during service.
• A vitreous enamel-lined oven interior resists grease build-up and simplifies cleaning after service.
• Adjustable feet paired with two additional rollers make levelling straightforward and allow the unit to be repositioned on the kitchen floor without heavy lifting.
• The door handle is designed to remain cool during operation, while the control knobs are reinforced for heavy-duty use, together reducing the risk of burns and withstanding the rigours of daily commercial service.
• Compatible with both natural gas and LPG, providing flexibility for different site configurations.

Key Features

• 900mm wide 800 Series gas range in 304 stainless steel construction
• 45 MJ/hr dual ring cast iron target top burner
• 2/1 GN gas convection oven with fan-forced heat distribution
• Flame failure protection on the oven burner for safe operation
• Continuous pilot burner for reliable, fast ignition
• Oven lining is fully welded and finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame for robust, long-term use
• Low-temperature door handle in stainless steel
• Reinforced heavy-duty control knobs built to withstand continuous commercial use
• Adjustable feet and two additional rollers for levelling and repositioning
• Variable high-low temperature control
• Compatible with natural gas and LPG via R 3/4 BSP male gas connection
• Integrated splashback included
• Requires 230-240 V AC, 50/60 Hz single phase supply (0.13 kW) for convection fan motor
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Variable High-Low
