Overview

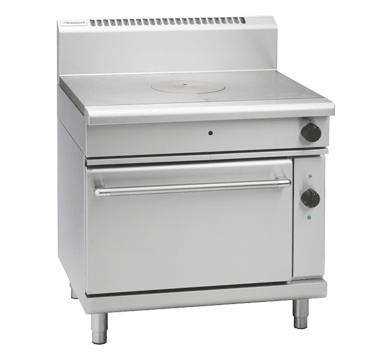

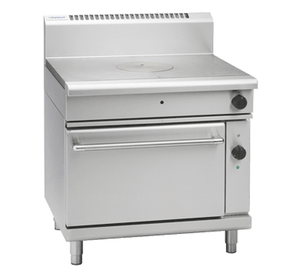

Waldorf RNL8110GEC 800 Series 900mm Gas Target Top Electric Convection Oven Range

The Waldorf RNL8110GEC is a heavy-duty commercial range from the 800 Series, combining a 900mm gas target top with a 2/1 GN electric convection oven in a single, robust unit. Constructed from 304 stainless steel and manufactured in New Zealand, it is engineered for the sustained demands of busy commercial kitchens, bakeries, and catering operations.

The upper target top features a 45MJ/hr dual ring cast iron burner with flame failure protection and a continuous pilot burner, while the lower electric convection oven delivers fan-forced, even heat across multiple trays. Together these cooking zones offer versatile, high-output performance suited to batch cooking, roasting, and baking in professional environments.

Key Benefits

• Fan-forced convection heat circulates evenly throughout the oven cavity, producing consistent baking and roasting results across every tray simultaneously.
• The 2/1 GN oven capacity supports large batch cooking, reducing the number of cooking cycles needed during peak service periods.
• Flame failure protection on the target top burner automatically cuts gas supply if the flame is extinguished, improving safety for kitchen staff.
• The continuous pilot burner ensures instant re-ignition of the target top, minimising downtime during service.
• Vitreous enamel-lined oven interior resists staining and is straightforward to wipe clean, reducing labour spent on daily cleaning.
• Adjustable feet and two additional rollers make levelling on uneven floors simple and allow the unit to be repositioned for cleaning or servicing without heavy lifting.
• Cool touch stainless steel door handle stays safe to grip even during extended cooking sessions, protecting staff from burns.
• Heavy-duty reinforced control knobs are built to withstand repeated daily use in high-volume kitchen environments.
• A dual fuel configuration with a single-phase electric oven and gas target top provides operational flexibility and allows load balancing across kitchen utilities.

Key Features

• 900mm wide 800 Series commercial range with gas target top and electric convection oven below
• 45MJ/hr dual ring cast iron burner on the target top
• Flame failure protection and continuous pilot burner for safe, reliable ignition
• 2/1 GN electric fan-forced convection oven with variable temperature control (High-Low)
• Oven cavity welded and lined with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 6.6kW electric oven with 415V 3-phase power supply
• Gas connection: R 3/4 (BSP) male, compatible with Natural Gas and LPG
• 304 stainless steel construction throughout
• Adjustable feet plus two additional rollers for levelling and repositioning
• Stainless steel splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
