Overview

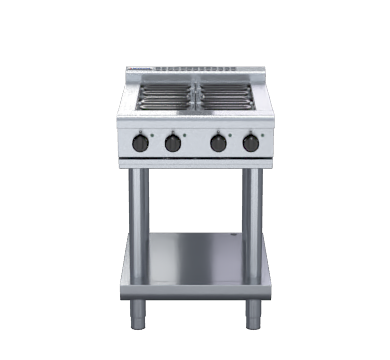

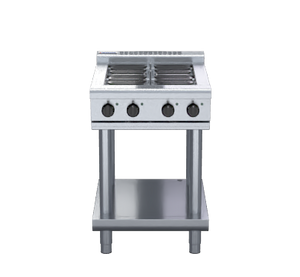

Waldorf RNL8400E-LS 800 Series 600mm Electric Cooktop – Low Back, Leg Stand

The Waldorf RNL8400E-LS is a 600mm wide 800 Series electric cooktop mounted on a dedicated leg stand, purpose-built for continuous heavy-duty use in commercial kitchens. Each of the four independent radiant elements rated at 2.4kW sits within a robust welded element frame, combining for a total output of 9.6kW, and every element offers six temperature settings that include a simmer position for precise, repeatable heat control across a full service day. The unit is constructed throughout from 304 stainless steel and manufactured in New Zealand, and it connects seamlessly into a matched Waldorf 800 Series suite.

The accompanying leg stand is entirely tool-free in its assembly, with 63mm diameter legs fabricated from 1.2mm 304 stainless steel, adjustable feet on every leg, and two integrated rollers to make repositioning straightforward. An undershelf provides additional storage below the cooktop. Optional hot plate elements and mild steel griddle plates extend the cooking capability of the unit without requiring a separate appliance, while a 415V three-phase power supply and a 24-month warranty complete the package.

Key Benefits

• Four independent radiant elements allow simultaneous cooking of multiple dishes at different temperatures, maximising throughput during peak service periods.
• Six temperature settings per element, including a dedicated simmer position, give chefs consistent control from gentle sauce work right through to high-heat searing.
• The enamelled element module and hob spill trays lift out completely, so post-service cleaning is fast and leaves no inaccessible residue build-up.
• Hinge-up element sections and front-accessible serviceable components mean routine maintenance can be completed without shifting the appliance.
• Adjustable feet on all legs combined with two built-in rollers make it easy to level the unit on uneven floors and wheel it clear for thorough cleaning behind and beneath.
• The leg stand clips together without any tools and mounts directly to the cooktop, cutting installation time significantly on site.
• Individual power and heating indicator lights on each element control help kitchen staff monitor status at a glance and avoid inadvertently leaving elements energised.
• Optional hot plate elements, featuring a machine-ground 8mm steel cooking surface, add griddle-style capability to the cooktop without the need for additional equipment.

Key Features

• Four radiant elements, each rated at 2.4kW, housed in robust welded element frames – total connected load 9.6kW
• Six temperature settings per element including a simmer setting
• Individual indicator lights showing both power and heating status for each element control
• Energy regulator controls for radiant elements; energy regulator controls also available for optional hot plate elements
• Large, heat-resistant reinforced control knobs with easy-view settings printed on the knob face
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Removable enamelled element module and hob spill trays for thorough cleaning access
• Hinge-up element sections for access; all serviceable parts reachable from the front
• Optional hot plate elements with a machine-ground 8mm steel cooking plate
• Optional 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel splash guards along the griddle perimeter
• Temperature control range of 50°C to 320°C per 300mm griddle section when the griddle option is fitted
• Leg stand with 63mm diameter legs fabricated from 1.2mm 304 stainless steel
• Adjustable feet on all legs plus two additional rollers for repositioning
• Undershelf built as a fully modular framed unit with a 0.9mm 304 stainless steel surface, requiring no tools to assemble
• Fully modular construction for integration into a matched Waldorf 800 Series suite
• 415V three-phase power supply (2P+N+E, 400–415Vac, 50/60Hz, 20A per phase)
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable High-Low
• Fuel Type: Electric
• Number of Burners: 2
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
