Overview

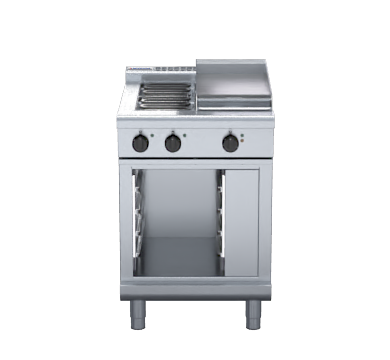

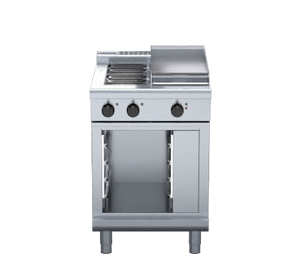

Waldorf RNL8403E-CB 800 Series 600mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf RNL8403E-CB is a 600mm wide electric cooktop from the 800 Series, combining two radiant elements with a 300mm griddle plate, all mounted on a fully enclosed cabinet base. Constructed with heavy-duty 304 stainless steel throughout, this unit is engineered for the demands of busy commercial kitchens where consistent cooking performance and long-term durability are essential.

The cabinet base is fully modular for a matched suite finish and features a double-skin stainless steel interior and exterior. With front-access servicing, hinge-up element and griddle sections, and removable vitreous enamelled spill trays, the RNL8403E-CB is designed to minimise downtime and simplify daily cleaning routines in high-volume foodservice environments.

Key Benefits

• Versatile cooking surface combining two radiant elements and a 300mm griddle in a single 600mm unit, reducing equipment footprint while expanding menu capability.
• Precise temperature control via a 50–320°C thermostat on the griddle section and six-position energy regulators with a simmer setting on radiant elements, giving chefs accurate heat management across cooking tasks.
• Indicator lights for power and heating on each element control allow staff to monitor cooking status at a glance, reducing the risk of energy waste or overheating.
• Front-access servicing and hinge-up element and griddle sections mean maintenance and deep cleaning can be completed quickly without pulling the unit away from the wall.
• Removable vitreous enamelled element modules and hob spill trays make daily cleaning fast and thorough, supporting hygiene standards in commercial kitchen operations.
• Adjustable feet and two additional rollers allow easy levelling and repositioning of the unit during cleaning or kitchen reconfiguration.
• Fully modular cabinet base with double-skin 304 stainless steel construction integrates seamlessly into a matched Waldorf 800 Series suite, supporting a professional, consistent kitchen layout.
• Optional hot plate elements and an available GN 1/1 four-position racking kit for the cabinet base provide flexibility to adapt the unit as kitchen requirements evolve.

Key Features

• 2 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• 1 x 3.6kW griddle element with 12mm thick mild steel griddle plate, positioned on the right-hand side as standard
• 300mm griddle section with 2.5mm 304 stainless steel splash guards
• Six temperature settings including a simmer setting on radiant element energy regulator controls
• 50–320°C thermostat control per 300mm griddle section
• Indicator lights for power and heating status on each individual element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module and hob spill trays – removable for easy cleaning
• Aluminised steel internal construction
• Hinge-up element and griddle sections with full front-of-unit access for servicing
• Large heat-resistant reinforced control knobs with easy-view settings
• Heavy-duty stainless steel external finish across all surfaces
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers supplied for ease of movement and repositioning
• Fully modular cabinet base designed for matched suite configuration with other Waldorf 800 Series units
• Optional GN 1/1 four-position racking kit available for the cabinet base
• Optional hot plate elements with machine-finished 8mm steel plate available

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
