Waldorf RNL8610GE 800 Series 900mm Gas Range Electric Static Oven Low Back Version

The Waldorf RNL8610GE is a heavy-duty commercial range from the 800 Series, combining a six-burner gas cooktop with a 2/1 GN electric static oven in a 900mm-wide, low back configuration. Built from 304 stainless steel in New Zealand, it is engineered for the rigours of high-volume commercial kitchen operation, with a total cooktop output of 168MJ/h across six 28MJ/h open burners and an electric oven operating between 150 and 300°C.

Every design detail on the RNL8610GE prioritises reliability, hygiene and ease of use. Flame failure protection on all burners, removable cast iron burner heads, vitreous enamel pot stands and a fully welded vitreous enamel oven lining make daily cleaning straightforward, while adjustable feet and two additional rollers simplify positioning and routine servicing. The unit is compatible with both natural gas and LPG, connects via a 3/4 inch BSP male gas fitting, and requires a 415V three-phase electrical supply for the 6.5kW oven.

Key Benefits

• Six 28MJ/h open burners deliver substantial, responsive heat across the full cooktop for simultaneous multi-pan cooking.
• Cast iron sole plates within the oven promote even heat distribution, supporting consistent baking and roasting results across a full 2/1 GN load.
• Thermostatic temperature control with a 150-300°C range gives chefs precise, repeatable oven settings for a wide variety of menu items.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, reducing risk in a busy kitchen environment.
• Vitreous enamel oven lining and pot stands resist staining and simplify cleaning, reducing turnaround time between services.
• Adjustable feet and two additional rollers make it easy to level the unit on uneven floors and reposition it for servicing or deep cleaning.
• Drop-down oven door with a cool-touch stainless steel handle allows safe, hands-free access during service without burning staff.
• Dual gas compatibility (natural gas and LPG) and a standard 3/4 inch BSP male connection offer straightforward installation flexibility across different sites.
• Heavy-duty reinforced control knobs and a welded door frame are built to withstand the constant handling demands of a commercial kitchen.

Key Features

• Six-burner gas cooktop with six individual 28MJ/h open burners, total output 168MJ/h
• 2/1 GN electric static oven with thermostatic control, operating range 150-300°C
• Flame failure protection fitted to all six burners as standard
• Removable heavy-duty cast iron burner heads for easy cleaning and maintenance
• Vitreous enamel pot stands, removable for cleaning
• Cast iron sole plates inside the oven for even heat distribution
• Oven lining is fully welded and finished with vitreous enamel for hygiene and durability
• Drop-down oven door with welded frame and cool-touch stainless steel handle
• Two adjustable oven shelves supplied
• Heavy-duty reinforced control knobs
• Adjustable feet plus two additional rollers for levelling and mobility
• Low back (splashback) configuration
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; 3/4 inch BSP male gas connection
• 6.5kW electric oven on a 415V three-phase, single-phase connection
• 900mm wide x 805mm deep x 972mm high; volume 1.03m³
• Manufactured in New Zealand
• 24-month warranty

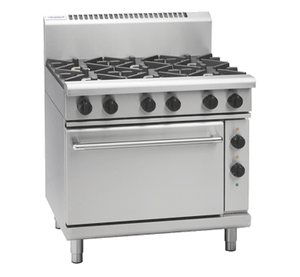

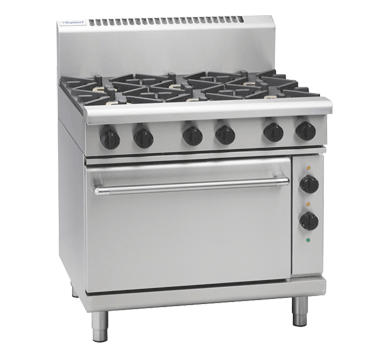

• Image shown is RN8610GE (standard back version); product is the low back RNL8610GE

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
