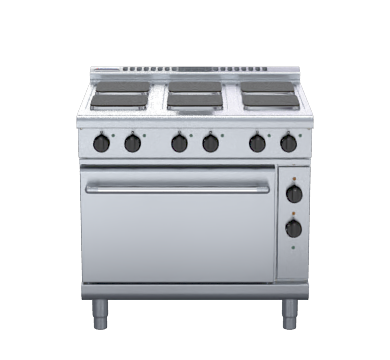

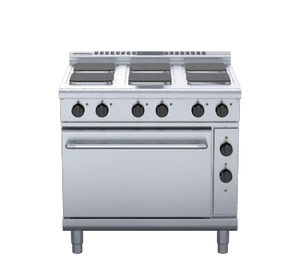

Waldorf RNL8610SEC 800 Series 900mm Electric Range Convection Oven Low Back Version

The Waldorf RNL8610SEC is a 900mm wide electric range from the 800 Series, combining six cast iron cooktop zones with a full-sized 2/1 GN fan-forced convection oven in a single, robust unit. Designed for high-volume commercial kitchens, cafes and bakeries, it delivers versatile surface cooking and consistent oven performance within a compact, low-back footprint.

Built to withstand the demands of busy foodservice environments, the RNL8610SEC features heavy-duty stainless steel construction, a fully welded vitreous enamelled oven liner and an aluminised steel interior. The low splashback configuration suits installations where overhead clearance or ventilation hood height is a consideration, and the unit is engineered for straightforward cleaning, installation and ongoing service.

Key Benefits

• Six independent cooktop zones allow simultaneous multi-dish surface cooking, maximising throughput during peak service periods.
• Fan-forced convection oven circulation ensures even heat distribution across all rack positions, reducing hot spots and improving consistency in baking and roasting.
• 2/1 GN oven capacity with four-position racking accommodates full gastronorm trays, enabling large batch cooking in a single cook cycle.
• Thermostatic control across a 50 to 320°C range gives chefs precise temperature management for diverse menu applications.
• Individual power indicator lights for each element let kitchen staff monitor cooktop status at a glance, improving efficiency and reducing energy waste.
• Six heat position switches on cast iron elements with thermal protection provide fine-tuned heat control and safeguard against element overload.
• Low back design offers flexibility in kitchen layouts where overhead clearance or splashback height is restricted.
• Heavy-duty stainless steel exterior with vitreous enamelled control panel and oven liner simplifies end-of-service cleaning and maintains a hygienic finish.
• Supplied with two chrome wire oven racks, ready for immediate use straight from installation.

Key Features

• Six cooking zone electric cooktop surface on a 2/1 GN convection oven base
• Six x 2.6kW cast iron hot plate elements with integrated thermal protection
• Each cooktop element controlled by a six-position heat switch
• Large, heat-resistant reinforced control knobs for ease of use during service
• 4.5kW bottom heat element and 2.0kW top heat element in the convection oven cavity
• 100W oven fan motor providing fan-forced, even heat circulation
• 50 to 320°C thermostatic oven temperature control
• Fully welded, vitreous enamelled oven liner for durability and easy cleaning
• GN 2/1 oven drawers with four-position racking system
• Aluminised steel internal oven construction
• Vitreous enamelled control panel
• Individual power indicator light for each element control
• 1.2mm stainless steel splashback (low back version)
• Heavy-duty stainless steel exterior finish throughout
• Three-phase (3P) electrical supply
• Supplied with two chrome wire oven racks
• 900mm wide x 805mm deep x 970mm high overall dimensions
• Packed weight 263kg
• Designed for straightforward cleaning, installation and service access

Specifications

• Weight (kg): 340.0
