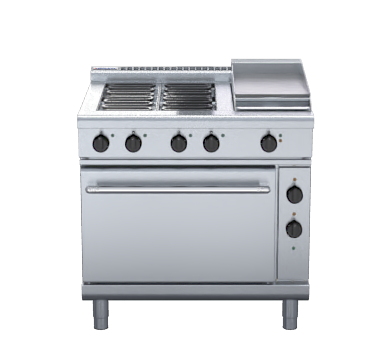

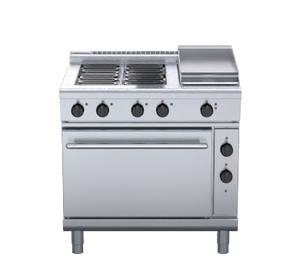

Waldorf RNL8613E 800 Series 900mm Electric Range with Static Oven – Low Back Configuration

The Waldorf RNL8613E is a heavy-duty 900mm electric range from the renowned 800 Series, pairing a four-element open radiant cooktop and a 300mm griddle section with a full-size 2/1 GN static oven in a single compact footprint. Engineered for demanding commercial kitchen environments, this unit delivers consistent, reliable performance across simultaneous cooking tasks, making it well suited to high-volume professional kitchens.

The RNL8613E is built on a galvanised steel chassis with 304 stainless steel surfaces throughout, offering exceptional durability and straightforward cleaning. The oven cavity features a fully welded vitreous enamelled liner and a cast iron sole plate for even heat distribution, while the open radiant cooktop elements and griddle plate are designed to handle sustained high-output production day after day.

Key Benefits

• The 2/1 GN oven capacity with four-position racking accommodates large trays and multiple rack configurations, supporting high-volume baking and roasting output.
• A cast iron even-heat oven sole plate promotes consistent temperature distribution across the oven floor, reducing hot spots and improving cook results.
• Six temperature settings plus a simmer setting on the cooktop give chefs precise control for a wide range of cooking techniques.
• The 300mm griddle with a 3.6kW element – standard on the right-hand side, available left or centre to order – adds versatile flat-top cooking without requiring a separate appliance.
• Adjustable feet and two additional rollers make installation, repositioning, and routine servicing straightforward in busy kitchens.
• The vitreous enamelled oven liner and stainless steel spill trays on the cooktop are designed for fast, easy cleaning, reducing downtime between services.
• High-density fibreglass oven insulation retains heat efficiently, contributing to energy performance and a cooler external surface during operation.
• Heavy-duty reinforced control knobs and a welded-frame drop-down oven door with a heavy-duty spring hinge system are built to withstand constant daily use.
• Optional hot plate elements fitted with a machine-ground 8mm steel cooking surface provide an additional cooking configuration to suit different menu requirements.

Key Features

• Galvanised steel chassis with welded hob constructed from 1.5mm 304 stainless steel; bull nose profile formed from the same 1.5mm 304 stainless steel sheet
• Splashback and hob sides in 1.2mm 304 stainless steel; front panels and oven sides formed from 0.9mm 304 stainless steel sheet
• Four 2.4kW open radiant elements housed in heavy-duty welded element frames with stainless steel spill trays
• 300mm griddle section with 12mm thick mild steel griddle plates, 1 x 3.6kW griddle element, and 2.5mm 304 stainless steel splash guards
• Griddle positioned on the right-hand side as standard; left-hand side or centre position available to order
• Optional supplementary hot plate elements using an 8mm machine-finished steel plate surface (available at additional cost)
• 2/1 GN electric static oven with 6.5kW heating elements and four-position racking
• Fully welded oven liner with vitreous enamel coating for durability and easy cleaning
• Cast iron even-heat oven sole plate for consistent temperature distribution across the oven floor
• Chrome wire rack supports with a tool-free removal design; two chrome wire oven racks supplied as standard
• Welded-frame drop-down oven door with heavy-duty spring hinge system
• Oven door outer in 0.9mm 304 stainless steel; press-formed vitreous enamelled door inner in 1.0mm steel
• High-density fibreglass oven insulation
• Low-temperature stainless steel door handle secured by cast metal mounting brackets
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Two additional rollers to assist with movement and installation
• Aluminised steel internal cooktop construction
• Six temperature settings plus simmer setting for versatile cooktop control
• Heavy-duty reinforced control knobs throughout
• Low back version configuration for flexible kitchen integration
• Dimensions: 900mm wide x 805mm deep x 972mm high; volume 1.03m³; packed weight 260kg

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
