Overview

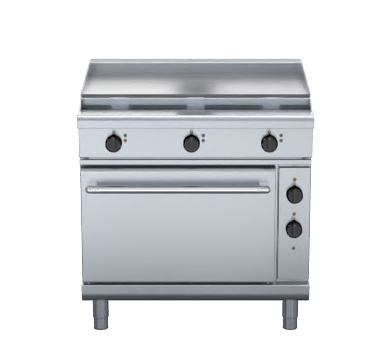

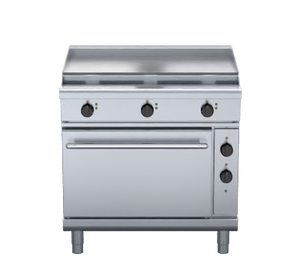

Waldorf RNL8619E 800 Series 900mm Electric Range Static Oven Low Back Version

The Waldorf RNL8619E is a 900mm wide commercial electric range from the 800 Series, combining a heavy-duty 12mm mild steel griddle cooktop with a full-capacity 2/1 GN electric static oven. Designed for demanding commercial kitchen environments, it features a galvanised steel chassis clad in 304 stainless steel throughout, with robust construction details including a welded hob, vitreous enamelled oven liner, and high-density fibreglass insulation for consistent, efficient cooking performance.

The oven cavity offers GN 2/1 capacity with four-position racking, supplied with two chrome wire racks and supported by a cast iron even-heat sole plate and 6.5kW heating elements for reliable, uniform results. The griddle section runs on three 3.6kW elements with six temperature settings plus a simmer setting, making this range equally suited to high-volume griddling and precision baking or roasting in a single compact footprint.

Key Benefits

• Cast iron even-heat oven sole plate combined with a fully insulated, vitreous enamelled liner ensures consistent temperatures for reliable baking and roasting results across every rack position.
• GN 2/1 oven capacity with four-position racking and two included chrome wire racks maximises usable cooking space for high-volume commercial output.
• Three 3.6kW griddle elements with six temperature settings and a dedicated simmer setting give precise heat control for a wide range of proteins, eggs, and pancake-style items.
• 12mm thick mild steel griddle plates retain and distribute heat evenly, reducing recovery time between batches during a busy service.
• Welded frame drop-down oven door with a heavy-duty spring hinge system and stay-cool stainless steel handle allows safe, easy access without interrupting surrounding workflow.
• Adjustable feet and two additional rollers simplify repositioning and levelling on uneven kitchen floors, reducing installation time.
• Galvanised steel chassis with 304 stainless steel panels, splash guards, and spill trays throughout supports easy cleaning and long-term durability under daily commercial use.
• Optional hot plate elements with machine-finished 8mm steel plate expand cooking versatility without requiring a separate piece of equipment.
• Heavy-duty reinforced control knobs and easy-remove chrome rack supports reduce maintenance downtime and simplify routine cleaning and servicing.

Key Features

• 900mm wide low back configuration; part of the Waldorf 800 Series commercial range
• Galvanised steel chassis with welded hob constructed from 1.5mm 304 stainless steel bull nose
• Splashback and hob sides in 1.2mm 304 stainless steel; front panels and oven sides in 0.9mm 304 stainless steel
• 150mm legs in 63mm diameter, heavy-duty 1.2mm 304 stainless steel with adjustable feet, plus two additional rollers for easy repositioning
• 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel griddle splash guards
• Three 3.6kW griddle heating elements in heavy-duty welded element frames
• Six temperature settings plus a simmer setting on the griddle
• Griddle section standard on right-hand side; available on left-hand side or centre to order
• Stainless steel spill trays beneath cooktop elements for easy cleaning
• Optional hot plate elements with machine-finished 8mm steel plate (aluminised steel internal construction)
• GN 2/1 oven capacity with four-position racking
• 6.5kW oven heating elements
• Cast iron even-heat oven sole plate for uniform base temperature
• Fully welded oven liner with vitreous enamel finish for durability and easy cleaning
• High-density fibreglass insulated oven construction for energy efficiency and external cool-touch surfaces
• Welded frame drop-down oven door with heavy-duty spring hinge system
• Oven door outer panel in 0.9mm 304 stainless steel; door inner is 1.0mm press-formed vitreous enamelled steel
• Stay-cool stainless steel door handle with cast metal handle mounts
• Heavy-duty easy-remove chrome wire rack supports inside the oven cavity
• Supplied with two chrome wire oven racks
• Heavy-duty reinforced control knobs
• 1.03m³ total volume
• Designed for easy cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
