Overview

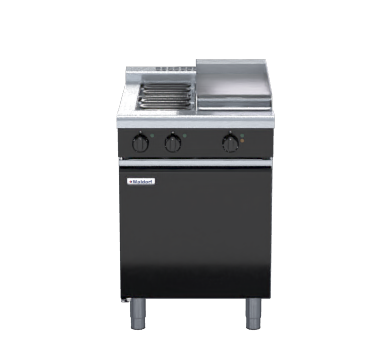

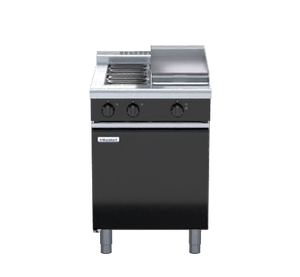

Waldorf Bold RNLB8403E-CD 600mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf Bold RNLB8403E-CD is a 600mm wide electric cooktop unit combining two 2.4kW open radiant elements with a 300mm griddle section, all mounted on a fully modular cabinet base. Constructed from heavy-duty 304 stainless steel throughout, this unit is engineered for the rigours of high-volume commercial kitchen environments where reliability and consistent heat output are essential.

The cooktop features a welded hob with 1.5mm 304 stainless steel bull nose, 12mm thick mild steel griddle plates, and a 50-320°C thermostat per 300mm griddle section, providing precise temperature control across every cooking zone. The cabinet base is double-skinned in 0.9mm 304 stainless steel and sits on 63mm diameter heavy-duty adjustable legs, with two additional rollers included for ease of movement and positioning during service or cleaning.

Key Benefits

• Two 2.4kW open radiant elements deliver responsive, controllable heat for a wide range of cooking tasks, from simmering sauces to rapid boiling.
• The 300mm griddle section with a dedicated 3.6kW element and 50-320°C thermostat gives precise temperature control for grilling, searing and toasting in a compact footprint.
• Six temperature settings including a simmer position allow fine-tuned heat management across all cooking zones during busy service periods.
• Hinge-up element and griddle sections, removable vitreous enamelled spill trays, and front-access servicing significantly reduce cleaning time and maintenance downtime.
• Heavy-duty reinforced control knobs with easy-view settings and individual power and heating indicator lights make operation straightforward in fast-paced kitchen conditions.
• Fully modular cabinet base with double-skin 304 stainless steel construction integrates seamlessly into a match-suite kitchen layout and supports optional GN 1/1 four-position racking.
• Adjustable feet and two additional rollers make installation, repositioning and levelling on uneven floors quick and practical.
• Aluminised steel internal construction and 304 stainless steel external panels ensure long-term corrosion resistance and durability under continuous commercial use.
• Optional hot plate elements provide configuration flexibility to suit varying menu requirements without changing the overall unit footprint.

Key Features

• 2 x 2.4kW open radiant elements in heavy-duty welded element frames
• 1 x 3.6kW griddle element with 300mm griddle section positioned on the right-hand side as standard
• 12mm thick mild steel griddle plates for even heat retention and distribution
• 50-320°C thermostat per 300mm griddle section
• Six temperature settings including a dedicated simmer setting
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled element module spill tray and stainless steel hob spill tray, both removable for easy cleaning
• Aluminised steel internal construction
• Large heat-resistant reinforced control knobs with easy-view control settings
• Energy regulator controls for both hot plate and radiant elements
• Individual power and heating indicator lights for each element control
• Hinge-up element and griddle sections for fast access and cleaning
• All components accessible from the front of the unit for simplified servicing
• Fully modular cabinet base for match-suite kitchen integration
• Double-skin 0.9mm 304 stainless steel interior and exterior cabinet construction
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers supplied for repositioning
• Optional GN 1/1 four-position racking kit available for cabinet base
• Optional hot plate elements available
• Default colour is black with other colour options available
• Packed volume 0.7m³; packed weight 131kg

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
