Overview

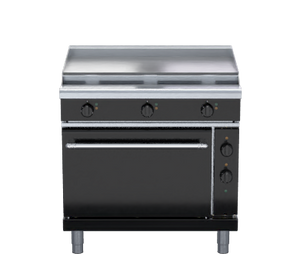

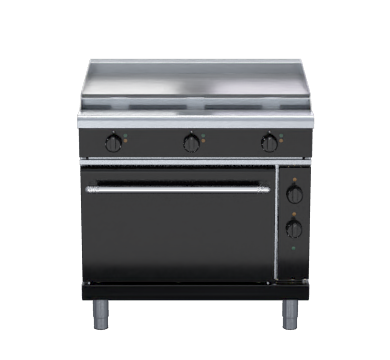

Waldorf RNLB8619E Bold 900mm Electric Range with Static Oven – Low Back Configuration

The Waldorf Bold RNLB8619E is a 900mm wide commercial electric range built for high-volume kitchen environments, combining a 12mm thick mild steel griddle cooktop with a GN 2/1 static oven. The low back design suits venues where overhead clearance or sight lines matter, and the heavy-duty stainless steel construction throughout is engineered for long-term durability under demanding service conditions.

Three 3.6kW elements power the griddle cooktop, while the oven delivers 6.5kW of heat through elements paired with a vitreous enamel-lined cavity and a cast iron sole plate for even heat distribution. Adjustable feet and two included rollers make levelling and repositioning straightforward, and optional hot plate elements allow the configuration to be tailored to the specific demands of individual kitchens.

Key Benefits

• Cast iron oven sole plate distributes heat uniformly across the oven floor, supporting consistent results for baking and roasting.
• GN 2/1 oven capacity with four rack positions accommodates large-format trays and sustains high-volume output across busy service periods.
• Vitreous enamel finish on the oven liner and door inner resists staining and speeds up post-service cleaning considerably.
• High-density fibreglass oven insulation retains heat efficiently while keeping exterior surfaces cooler throughout operation.
• A low-conductivity stainless steel door handle secured by cast metal mounts reduces burn risk and holds up to repeated daily use.
• Adjustable feet and two rollers make levelling and repositioning straightforward during installation or kitchen reconfiguration.
• Optional hot plate elements and a choice of griddle position (right-hand as standard, or left-hand and centre available to order) allow the range to suit specific menu requirements.
• Stainless steel spill trays beneath cooktop elements contain grease and food debris, simplifying day-to-day maintenance.
• Six temperature settings plus a simmer setting give chefs precise control across a broad range of cooking tasks.

Key Features

• 900mm wide Waldorf Bold series electric range in a low back version
• Galvanised steel chassis for structural rigidity
• Welded hob constructed from 1.5mm 304 stainless steel with a bull nose profile; splashback and hob sides in 1.2mm 304 stainless steel
• Front panels and oven sides fabricated from 0.9mm 304 stainless steel sheet
• Heavy-duty 150mm legs in 63mm diameter tube, formed from 1.2mm 304 stainless steel, with adjustable feet
• Two additional rollers supplied to assist with repositioning
• 12mm thick mild steel griddle plates for excellent heat retention and searing performance
• Three 3.6kW griddle elements with six temperature settings plus a simmer setting
• Where fitted: 2.4kW open radiant elements seated in robust welded element frames
• Aluminised steel internal cooktop construction
• Griddle splash guards in 2.5mm 304 stainless steel
• Stainless steel spill trays located under cooktop elements
• Griddle section positioned on the right-hand side as standard; left-hand or centre positioning available to order
• Optional hot plate elements featuring a machine-finished 8mm steel plate surface
• GN 2/1 static oven with four rack positions
• 6.5kW oven heating elements
• Fully welded oven liner with vitreous enamel finish
• Cast iron even-heat oven sole plate
• High-density fibreglass oven insulation
• Welded frame drop-down oven door with a robust spring hinge system; outer panel in 0.9mm 304 stainless steel
• Press-formed vitreous enamelled oven door inner panel in 1.0mm steel
• Ergonomic door handle in low-conductivity stainless steel, mounted on cast metal brackets
• Heavy-duty easy-remove chrome wire rack supports
• Two chrome wire oven racks supplied as standard
• Heavy-duty reinforced control knobs
• Default colour black; other colour options available
• Designed for straightforward cleaning, installation and servicing
• Total volume 1.03m³

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
