Overview

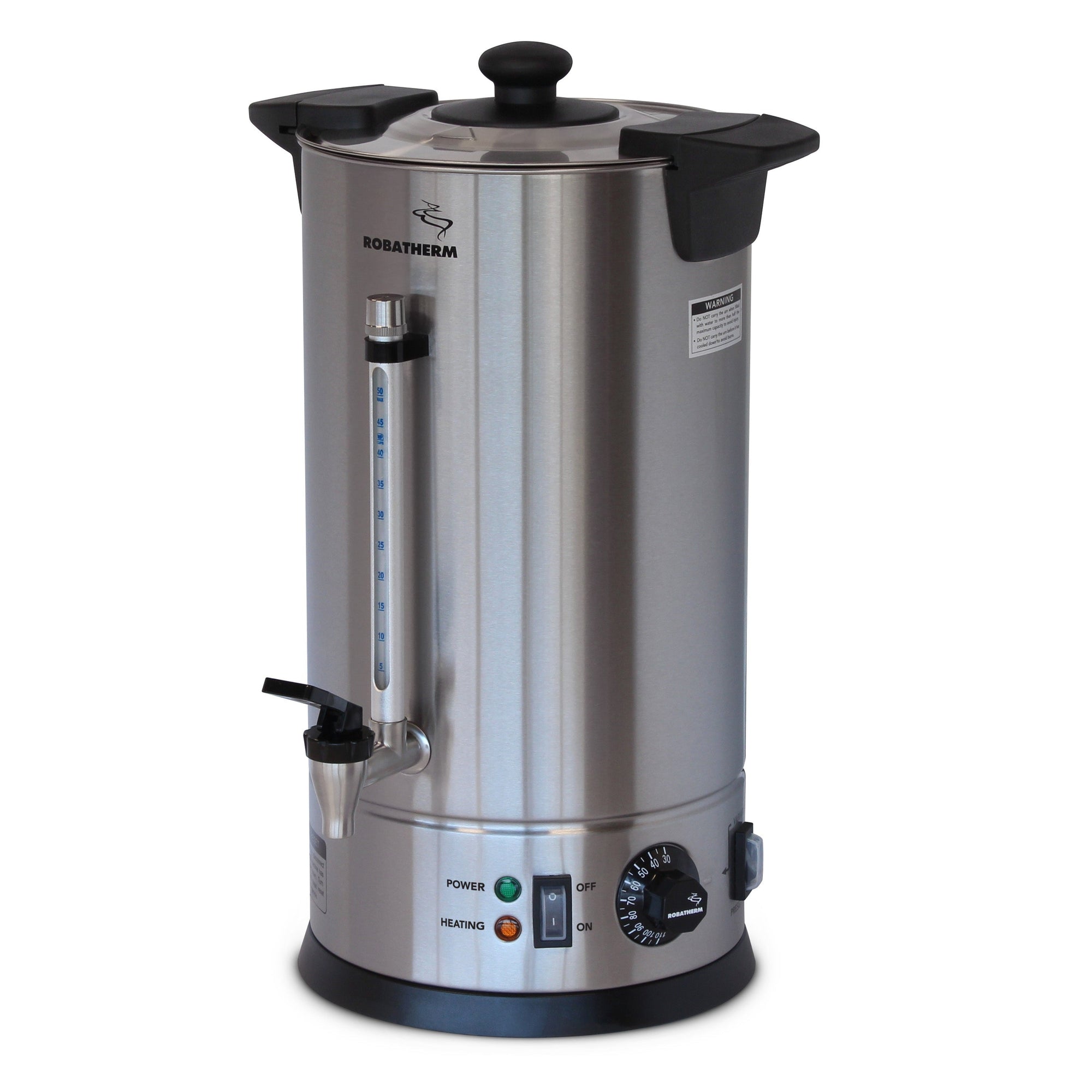

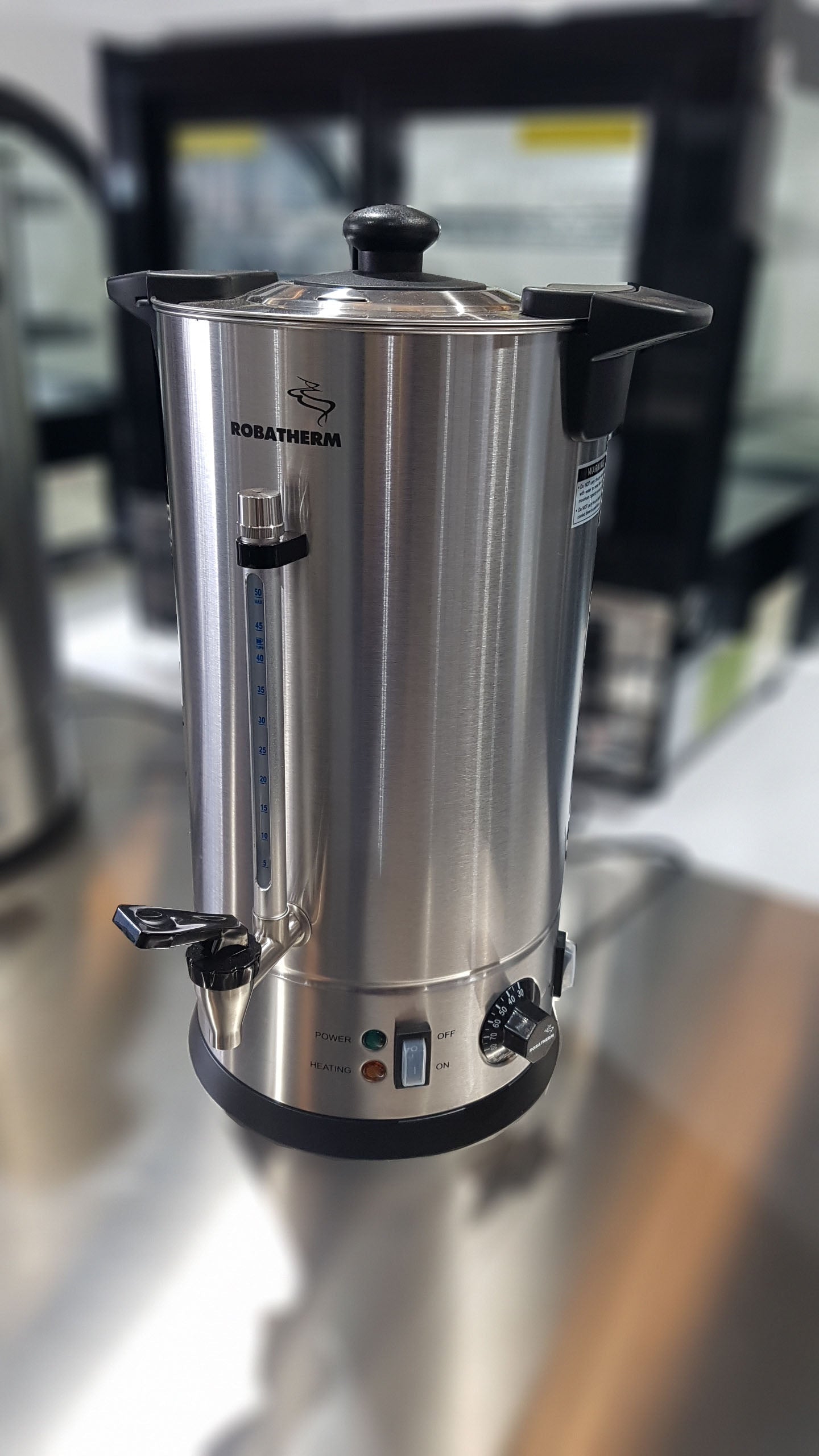

Robatherm UDS10VP Commercial Hot Water Urn 10 Litre

The Robatherm UDS10VP is a 10-litre commercial hot water urn finished in brushed stainless steel, purpose-built for cafés, restaurants, catering operations, function venues, offices and hotel breakfast stations. With a capacity of approximately 50 cups at 160ml, it delivers a steady supply of hot water for tea, coffee and general beverage service throughout the day.

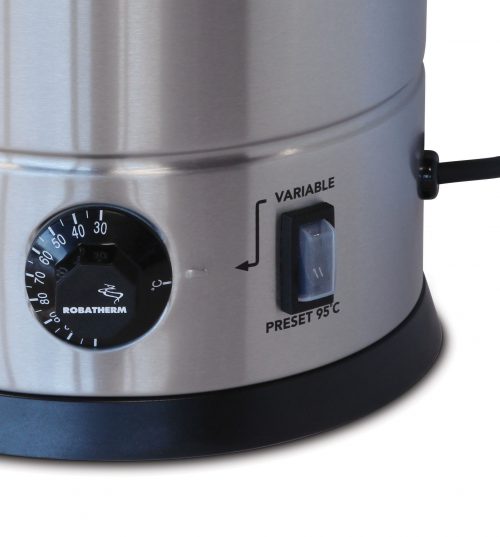

A standout feature is the unique mode selector switch that lets operators choose between variable temperature control across a wide range or a fixed pre-set of 95°C, the optimal temperature for most tea and coffee applications. In pre-set mode, the knob adjustment has no effect and the unit holds a constant 95°C, preventing continuous boiling and reducing energy consumption. A high-grade 304 stainless steel inner tank, double-skinned construction and long-life concealed elements round out a unit built for reliable, hygienic, front-of-house or back-of-house service.

Key Benefits

• Dual temperature modes give operators flexibility, with variable control for specialised applications and a fixed 95°C pre-set for consistent tea and coffee service without constant adjustment.
• Pre-set mode eliminates unnecessary re-boiling, lowering energy consumption during extended service periods.
• Double-skinned tank construction keeps exterior side temperatures below 50°C, reducing burn risk for staff and self-serve users.
• High-grade 304 stainless steel inner tank provides a hygienic, durable water storage environment that is easy to maintain.

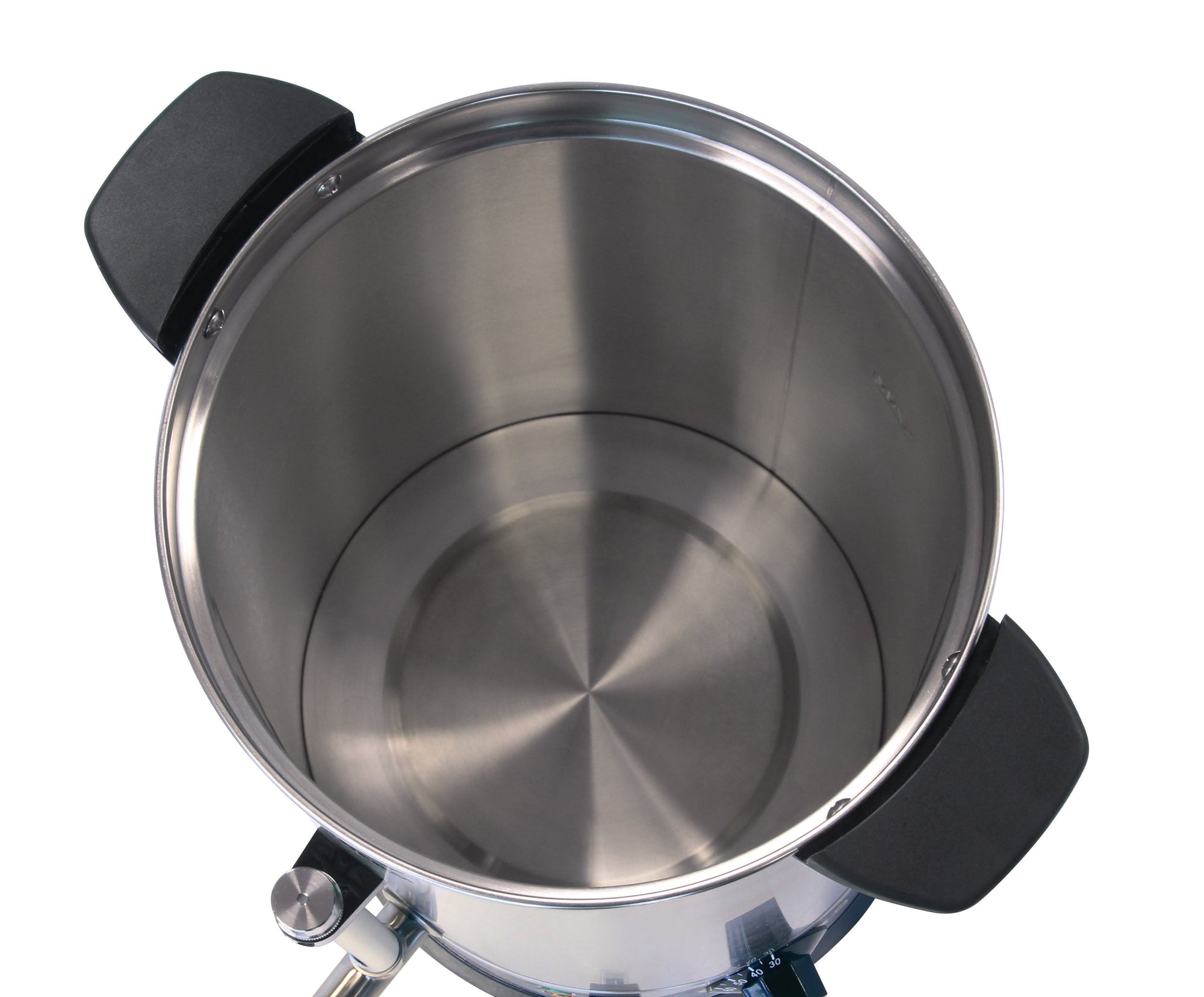

• Long-life concealed elements keep the interior of the tank clear of obstructions, making internal cleaning straightforward.
• Boil-dry protection prevents element damage if water levels drop too low, extending the service life of the unit.

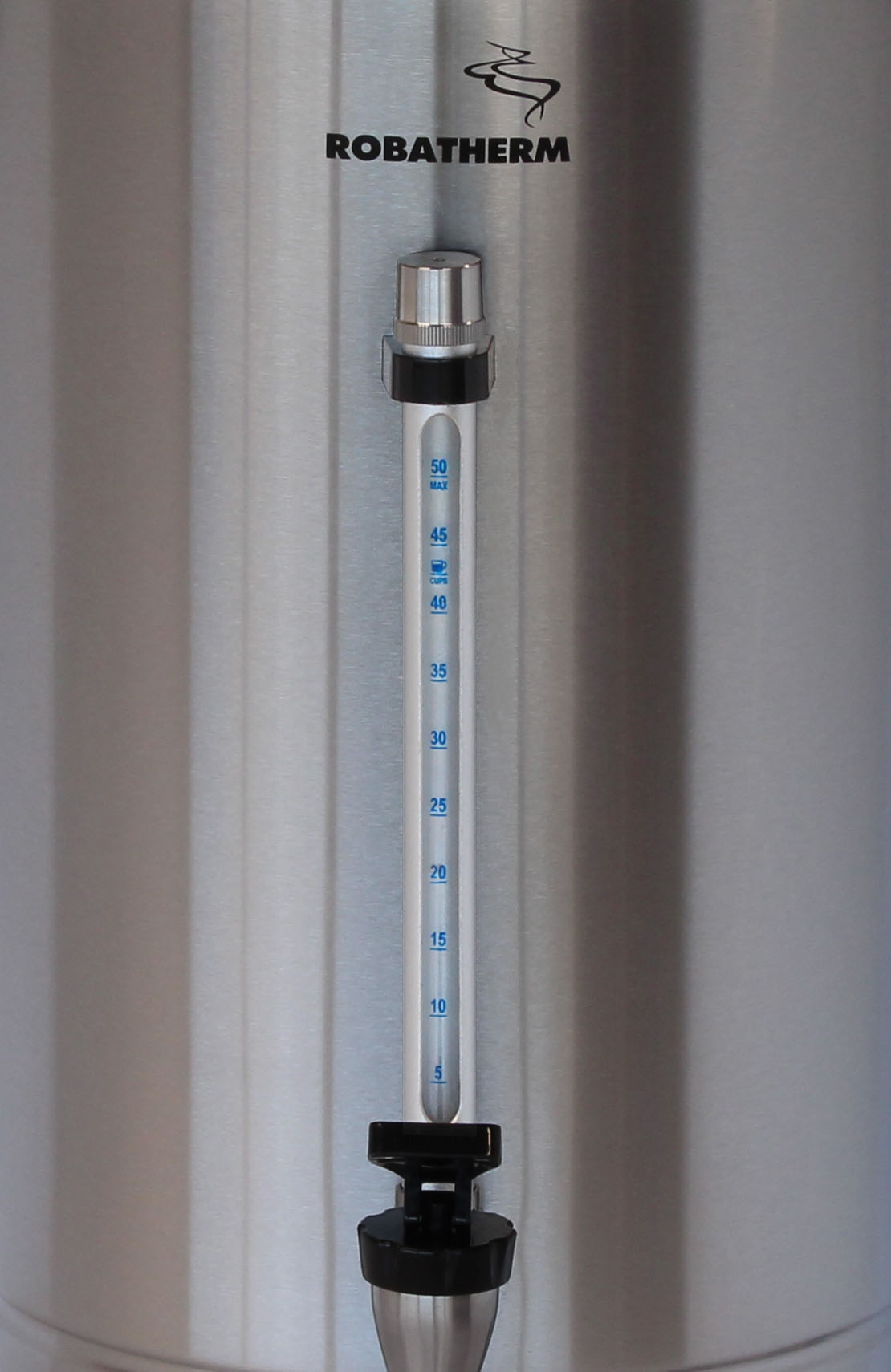

• Sight glass with cup capacity graduations lets staff monitor water levels at a glance and plan refills during busy service.

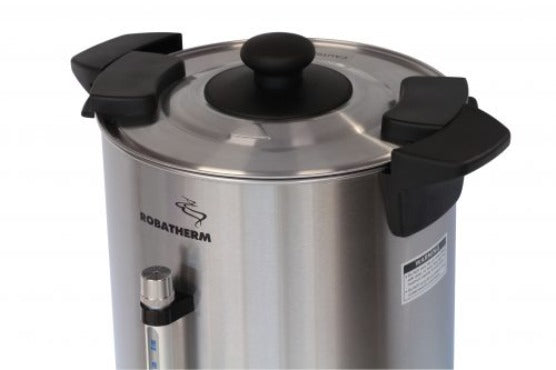

• Twist-lock lid with integrated steam vent improves safety during operation and prevents accidental removal under pressure.

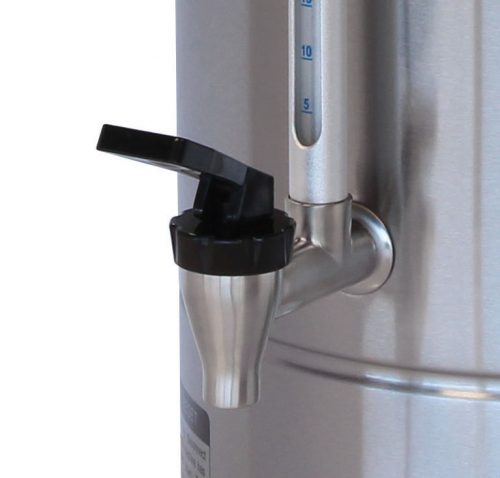

• Stainless steel non-drip tap supports clean, controlled dispensing and reduces mess at self-serve or counter stations.

Key Features

• 10-litre capacity, serving approximately 50 cups at 160ml per serve
• Mode selector switch for either variable temperature control or fixed pre-set 95°C operation
• In pre-set mode, temperature remains constant at 95°C regardless of knob position, preventing continuous boiling
• Variable mode allows temperature adjustment across a wide range via a graduated control knob
• Double-skinned tank construction maintains safe external side temperatures below 50°C
• High-grade 304 stainless steel inner tank for hygienic and durable hot water storage
• Brushed stainless steel exterior finish suitable for front-of-house and back-of-house environments
• Long-life concealed heating elements allow easy cleaning inside the urn body
• Sturdy stainless steel non-drip tap for clean, controlled dispensing
• Twist-lock lid with steam vent for safe operation
• Sight glass with cup capacity graduations for easy water level monitoring
• Boil-dry protection to prevent element damage at low water levels
• 235mm body diameter
• 2,300W element drawing 10 amps on 240V single-phase power
• Optional accessory: HF1 Hands-Free Tap Lever

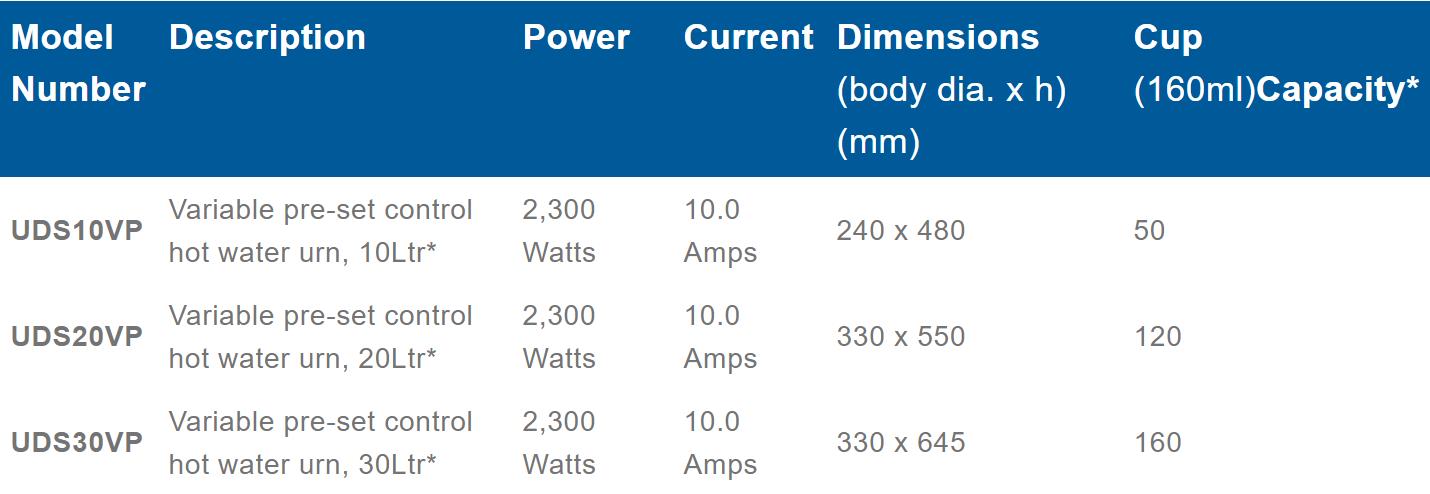

• Also available in 20-litre (UDS20VP) and 30-litre (UDS30VP) capacities

Specifications

• Width (mm): 305
• Depth (mm): 335
• Height (mm): 470
• Weight (kg): 30
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 4
• Shipping Cubic: 0.048
• Packed Width (mm): 280.0
• Packed Height (mm): 505.0
• Packed Depth (mm): 285.0
• Power Delivery: 2300w
• Power Rating: 2300w
• Power Supply: 240V Single Phase
• Power (kW): 2300
• Amps (A): 10
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: China
• Australian Made Logo: NO
• Material: 304 Stainless Steel
• Temperature Range: 30°C - 90°C
• Fuel Type: Electric
• Control Type: Manual
• Capacity (Litres): 10
