Overview

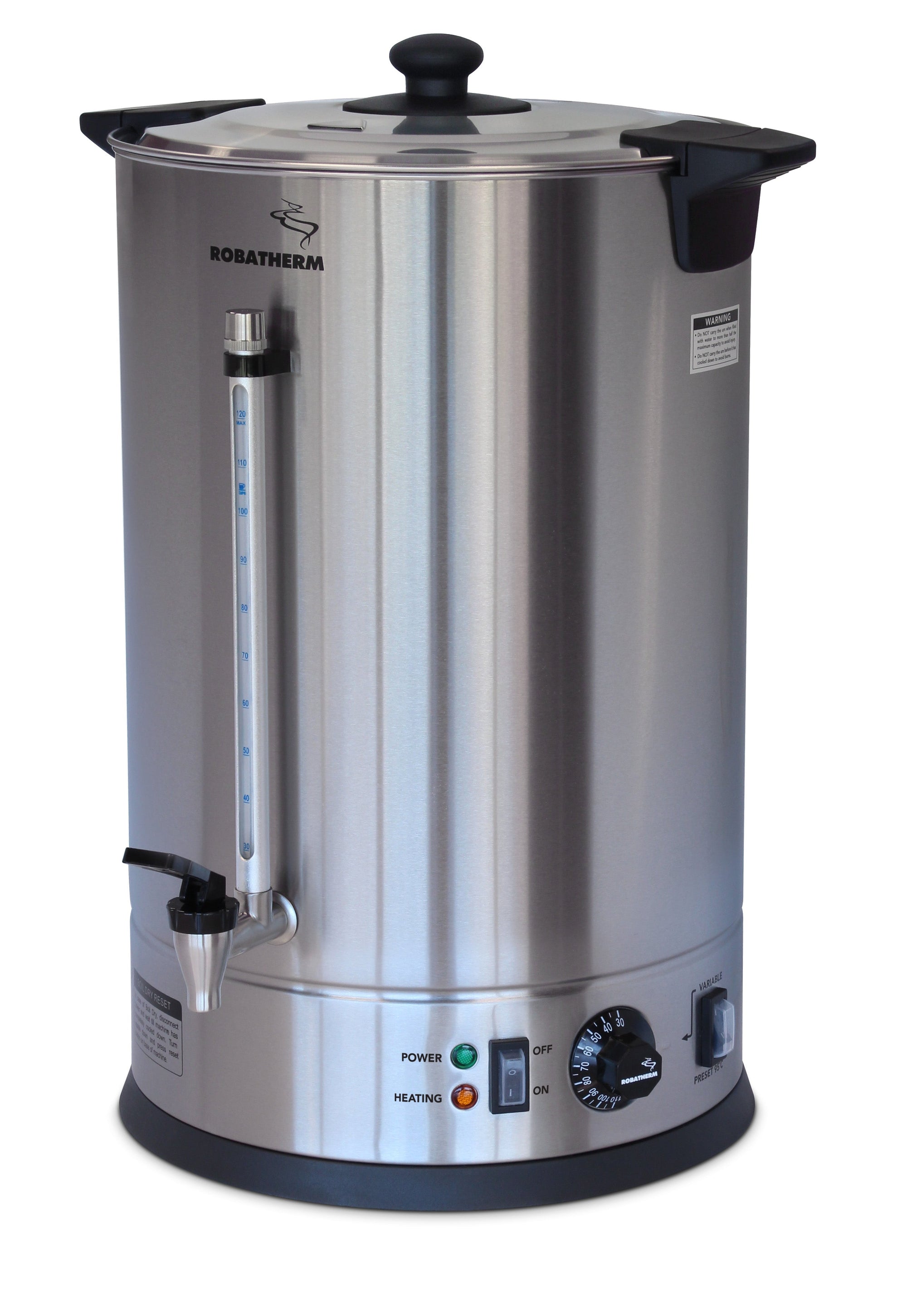

Robatherm UDS20VP Hot Water Urn 20 Litre

The Robatherm UDS20VP is a 20-litre commercial hot water urn designed for cafes, catering operations, offices, event venues and busy hospitality environments. Built around a high-grade 304 stainless steel inner tank and a brushed stainless steel exterior, it delivers up to 120 cups (at 160ml) per fill, making it well suited to sustained hot water service throughout the day.

A standout feature is the unique mode selector switch that lets staff choose between a graduated variable temperature control or a fixed 95°C pre-set, giving flexibility across different service situations. Double-skinned tank construction keeps exterior surface temperatures safely below 50°C, while long-life concealed elements simplify interior cleaning and support reliable long-term performance.

Key Benefits

• 120-cup capacity per fill reduces the frequency of refilling during peak service periods.
• Variable temperature mode allows precise adjustment to suit different hot water applications beyond tea and coffee.
• Pre-set 95°C mode maintains a stable serving temperature without continuous boiling, improving energy efficiency.
• Double-skinned tank keeps exterior surfaces below 50°C, reducing burn risk in busy front-of-house and back-of-house settings.
• Sight glass with cup graduations lets staff monitor water levels at a glance, avoiding unexpected shortfalls during service.
• Boil-dry protection prevents internal damage if water levels drop too low, extending the service life of the unit.
• Concealed heating element keeps the interior smooth and unobstructed, making routine cleaning faster and more thorough.
• Non-drip tap delivers clean, controlled dispensing that minimises mess on benchtops and service counters.
• Twist-lock lid with steam vent improves safety during operation and prevents accidental removal under pressure.

Key Features

• 20-litre capacity, equivalent to approximately 120 cups at 160ml per serve.

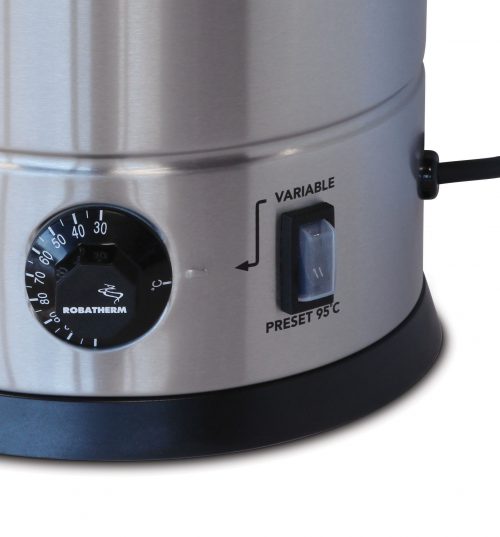

• Unique mode selector switch for either variable temperature control or a fixed 95°C pre-set.
• High-grade 304 stainless steel inner tank for durable, food-safe construction.
• Brushed stainless steel exterior finish suitable for front-of-house and back-of-house use.
• Double-skinned tank construction maintains exterior surface temperatures below 50°C for safe operation.

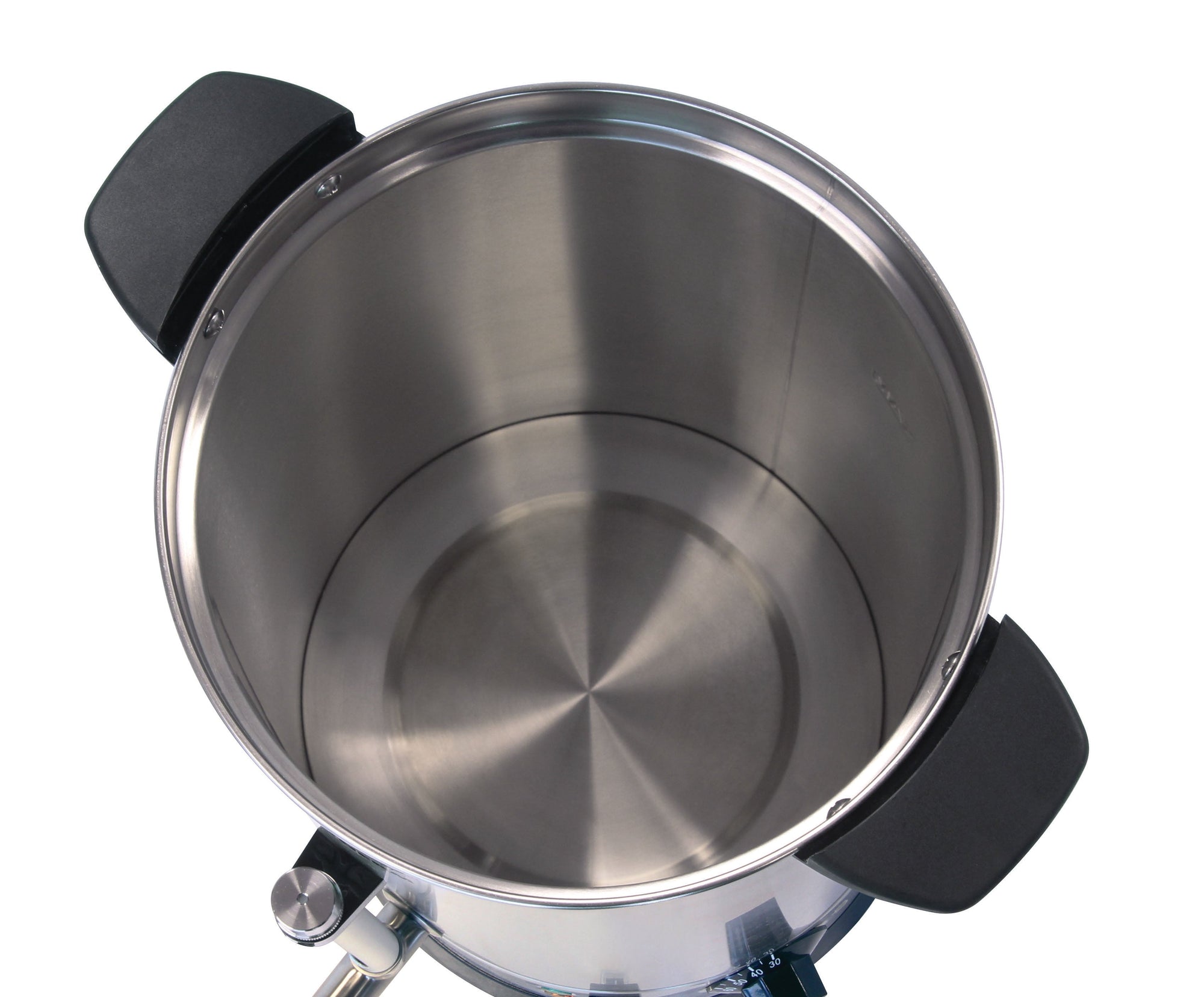

• Long-life concealed heating element allows easy interior cleaning.

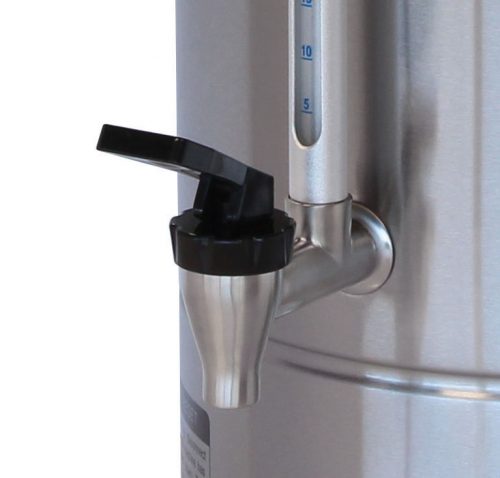

• Stainless steel non-drip tap for controlled, mess-free dispensing.

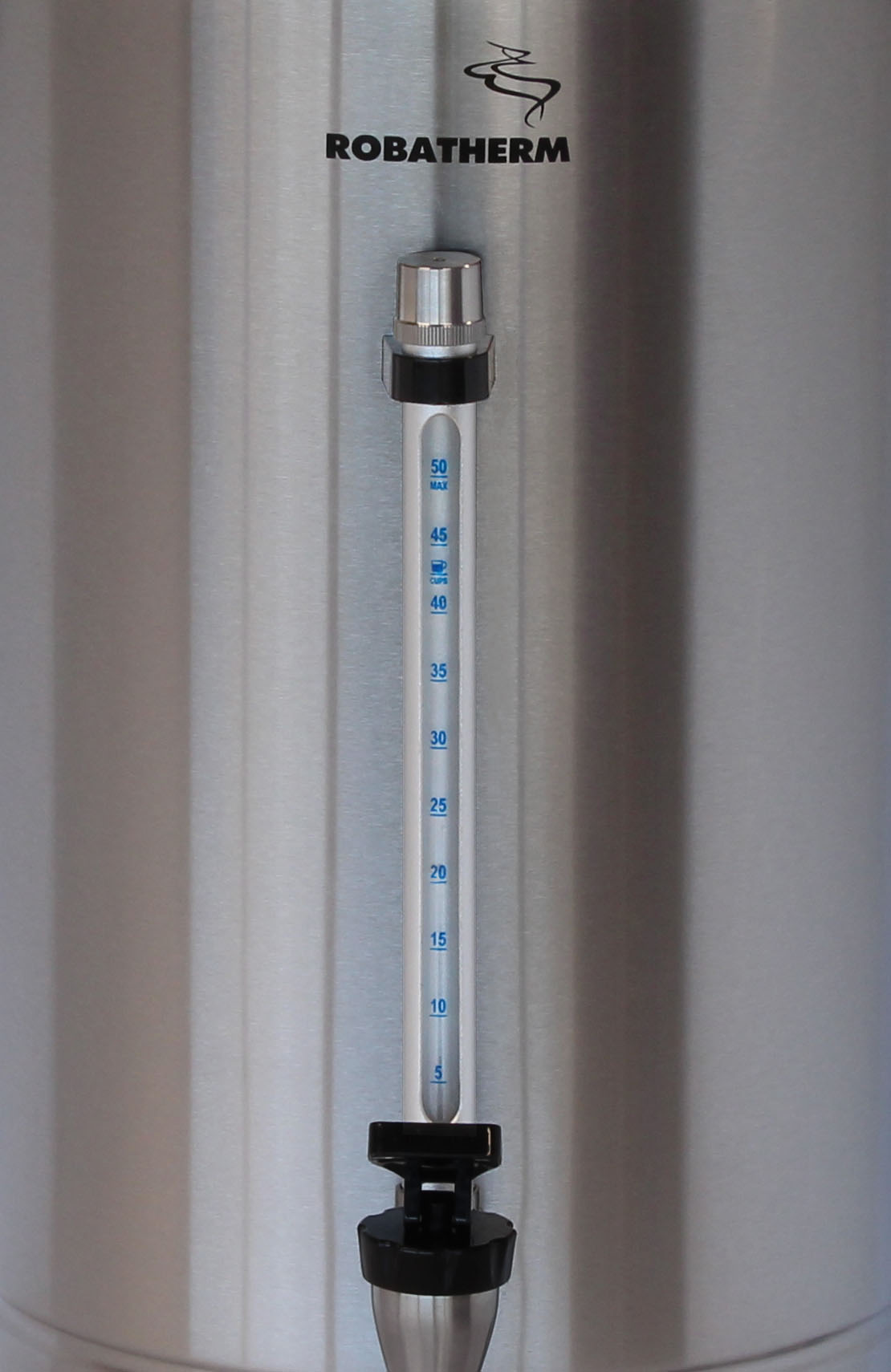

• Sight glass water level indicator with cup capacity graduations.
• Boil-dry protection to prevent damage if the urn runs low on water.

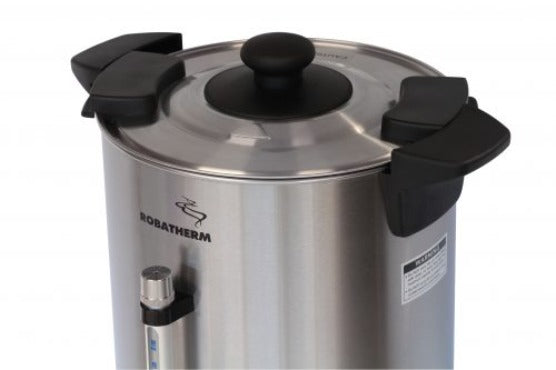

• Twist-lock lid with integrated steam vent for safe, secure operation.
• 315mm body diameter.
• 2,300W element drawing 10 amps on a standard 230V single-phase supply.

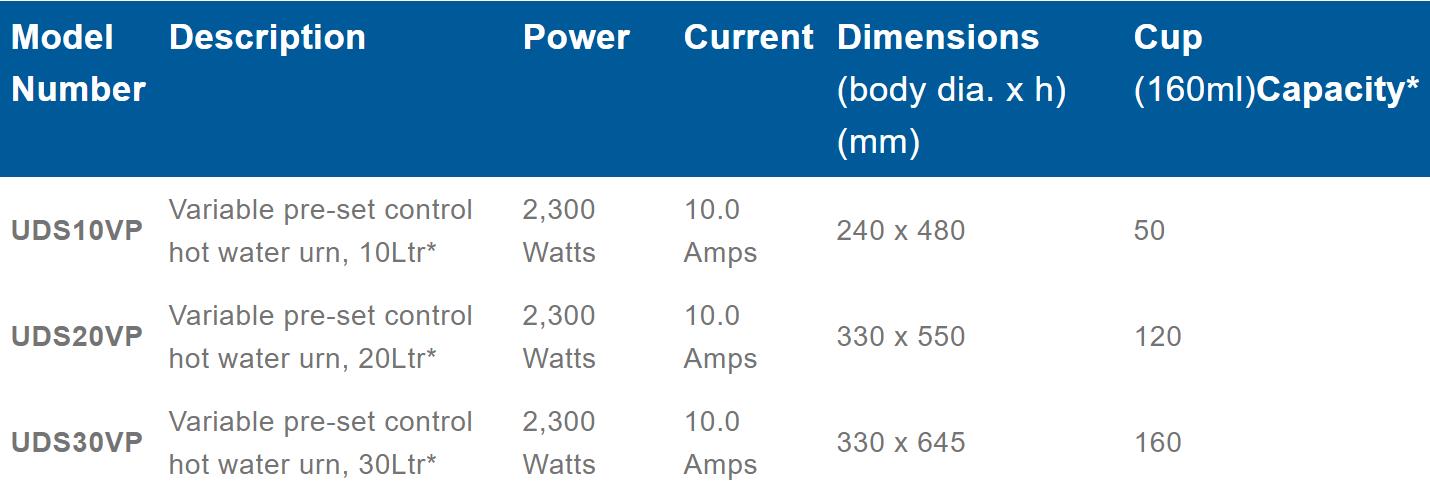

• Part of a range available in 10-litre, 20-litre and 30-litre capacities.

Specifications

• Width (mm): 390
• Depth (mm): 420
• Height (mm): 550
• Weight (kg): 30
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 6
• Shipping Cubic: 0.082
• Packed Width (mm): 356.0
• Packed Height (mm): 580.0
• Packed Depth (mm): 365.0
• Power Delivery: 2300w
• Power Rating: 2300w
• Power Supply: 240V Single Phase
• Power (kW): 2300
• Amps (A): 10
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: China
• Australian Made Logo: NO
• Material: 304 Stainless Steel
• Temperature Range: 30°C - 90°C
• Fuel Type: Electric
• Control Type: Manual
• Capacity (Litres): 20
