Overview

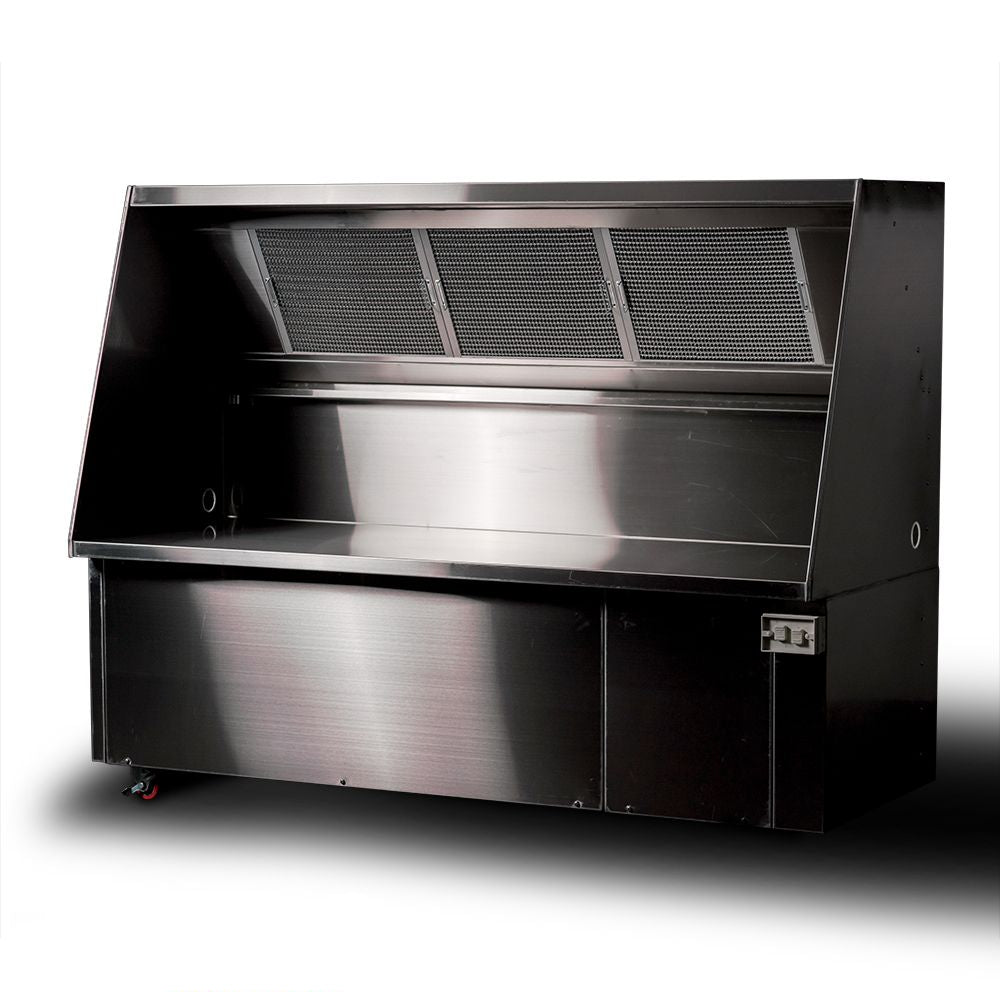

Simcohood DH1800 Ductless Exhaust Hood System

The Simcohood DH1800 is a freestanding ductless exhaust hood system designed for commercial kitchens where ducting to the outside is not practical or possible. Constructed from 304 stainless steel, it delivers a quiet yet powerful airflow of 400 to 500 litres per second through a 334-watt motor, effectively capturing heat, steam, smoke and grease from a cookline accommodating three to four electrical appliances.

Rather than venting externally, the DH1800 uses a multi-stage filtration system comprising three removable honeycomb grease filters, a replaceable polyester pre-filter and a carbon filter to clean and recirculate air back into the kitchen. Integrated LED lighting illuminates the cooking surface, while heavy-duty legs and included castors provide a stable, mobile installation without the need for any building works.

Key Benefits

• Ductless design eliminates the need for external ducting or costly building modifications, making installation straightforward in virtually any commercial kitchen layout.
• Powerful 400 to 500 litre-per-second airflow captures heat, steam, grease and cooking odours effectively across a cookline fitted with three to four appliances.
• Quiet motor operation keeps noise levels manageable during busy service periods without sacrificing suction performance.
• Multi-stage filtration, including honeycomb grease filters, a polyester pre-filter and a carbon filter, ensures clean air is recirculated back into the kitchen environment.
• 304 stainless steel construction throughout supports stringent hygiene standards and withstands the demanding conditions of a commercial kitchen.
• Integrated LED lighting provides clear, energy-efficient illumination directly over the cooking surface.
• Heavy-duty castors allow the unit to be repositioned easily for cleaning or reconfiguration of the kitchen, while the sturdy legs maintain stability during service.
• Rated for electrical appliances up to 8 kW each and capable of handling a three-phase unit, providing flexibility across a wide range of commercial cooking equipment.
• Full certification included, offering peace of mind for operators and compliance with relevant standards.

Key Features

• Ductless exhaust system recirculates filtered air, requiring no external ducting or roof penetration.
• Airflow capacity of 400 to 500 litres per second for effective extraction across the cookline.
• 334-watt motor drawing only 1.4 amps, balancing strong suction with low energy consumption.
• Suitable for electrical appliances up to 8 kW each; compatible with three-phase cooking equipment.
• Designed to accommodate three to four appliances within the canopy footprint.
• Three removable honeycomb grease filters, each 380mm x 455mm, for primary grease capture and easy cleaning.
• Polyester pre-filter included, recommended for replacement every 8 to 12 weeks.
• Carbon filter included, recommended for replacement every 12 months to control odours.
• Integrated LED lighting for bright, efficient illumination of the cooking surface.
• Constructed from 304 stainless steel for hygiene, durability and ease of cleaning.
• Freestanding installation on heavy-duty legs with included heavy-duty castors for mobility.
• Single-phase power supply: 240V 50Hz; power rating 2.0 kW.
• Full certification included.
• 24-month warranty.

Specifications

• Width (mm): 1800
• Depth (mm): 750
• Height (mm): 1400
• Weight (kg): 270
• Colour: Stainless Steel
• Packed Width (mm): 1850
• Packed Depth (mm): 800
• Packed Height (mm): 1500
• Shipping Weight: 270
• Shipping Cubic: 2.358750000m3
• Material: Stainless Steel
• Country of Origin: China
• Warranty (months): 24
• Installation Type: Freestanding (legs & castors)
• Fuel Type: Electric
• Power Rating: 2.0 kW
• Power Supply: 240V 50Hz Single Phase
• Voltage/Phase: 240V 50Hz Single Phase
