Overview

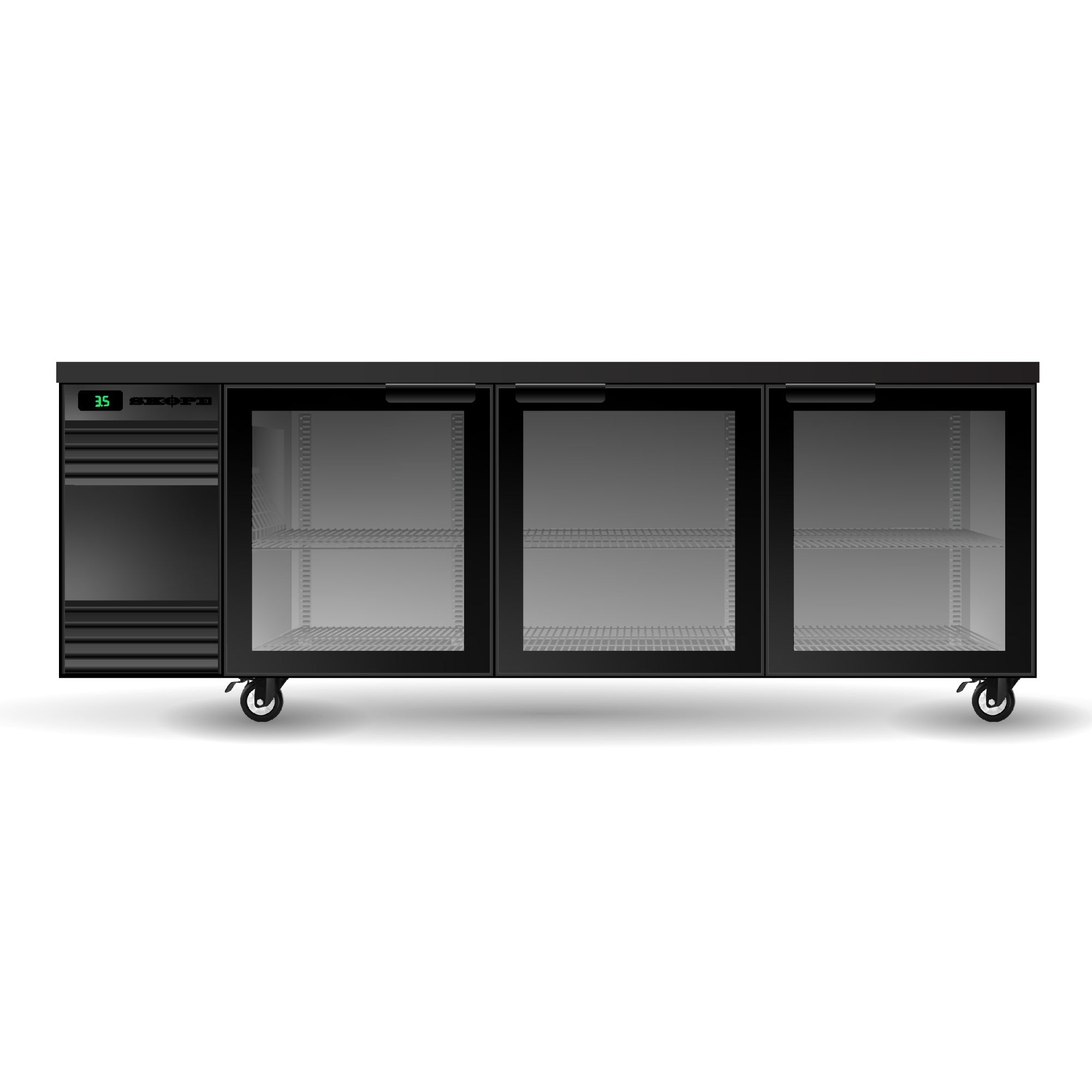

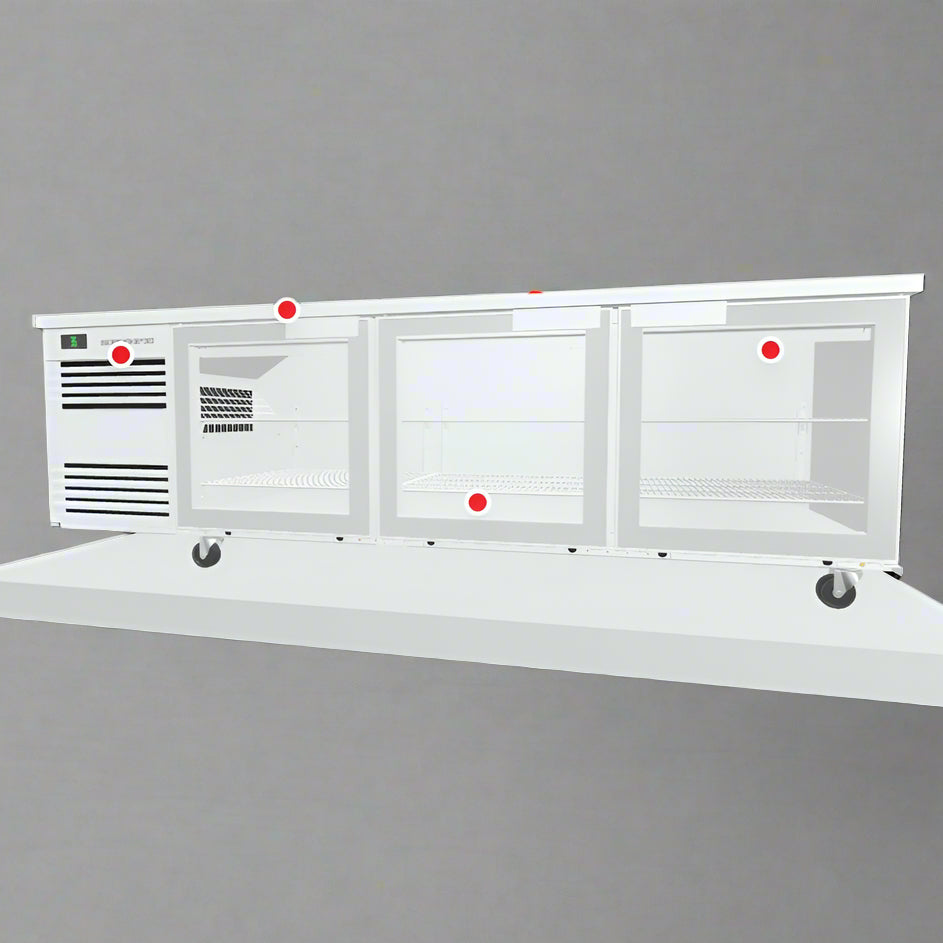

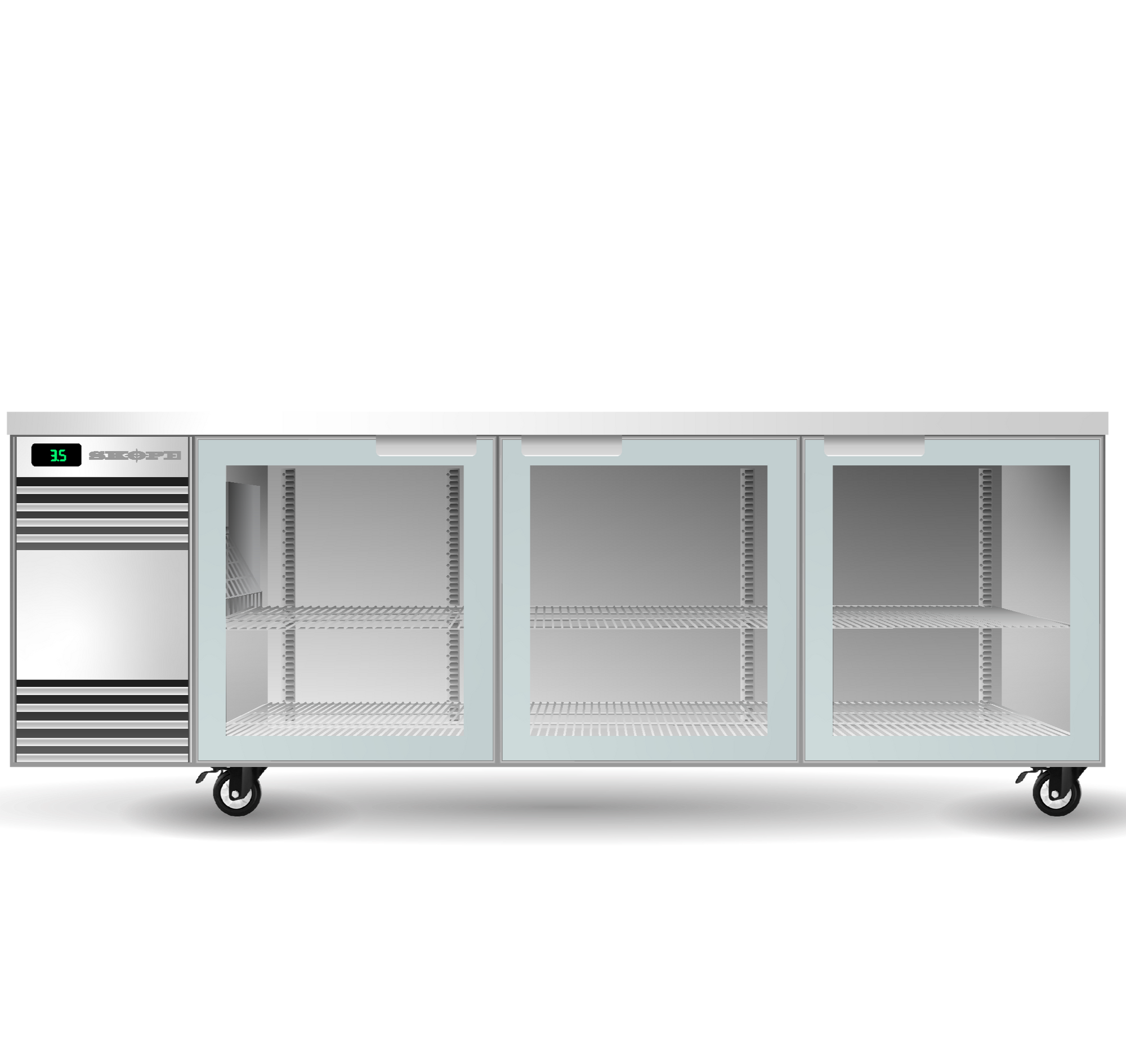

Skope CL.3.GSW CounterLine Undercounter Bar Fridge – Three Glass Swing Door

The Skope CL.3.GSW is a low-profile undercounter bar fridge from the CounterLine series, purpose-built for high-demand hospitality environments including bars, pubs, clubs, restaurants and quick service venues. Offering 533 litres of gross capacity spread across three glass swing doors, it places chilled product directly at the point of service within an undercounter footprint, with a height engineered to sit neatly beneath the bar counter.

Powered by eco-friendly R290 natural refrigerant and fully compatible with SKOPE-connect, the CL.3.GSW pairs market-leading energy efficiency with intelligent remote controls, dimmable full-height LED strip lighting, and a modular front-breathing cartridge refrigeration system designed for fast on-site servicing without disrupting operations. Every door features a self-closing mechanism and integrated locking tab to protect stock and sustain temperature integrity throughout busy service periods.

Key Benefits

• Positions chilled product directly at the point of service, reducing staff travel time and keeping drinks consistently cold during busy service periods.
• The undercounter height accommodates per door: a single row of 750ml wine or Riesling bottles; alternatively, a pair of rows holding 355ml beer bottles; or two rows of 600ml PET bottles; or up to four rows of standard beer cans – maximising storage versatility across formats.
• Up to 63% reduction in energy consumption compared to conventional refrigeration, with potential annual power bill savings of up to $750, backed by a GEMS energy consumption rating of 2.5 kWh/24h and GEMS Class 3M1 certification.
• SKOPE-connect compatibility enables remote temperature adjustment across a 0°C to 15°C range, hush mode activation to bring operating noise below 62 dB, and LED brightness dimming for complete operational control.
• Every swing door is fitted with a self-closing mechanism and an integrated locking tab, protecting stock and maintaining temperature integrity while reducing the risk of accidental door-open incidents during service.
• The fully front-breathing, interchangeable modular cartridge refrigeration system allows quicker and safer servicing without needing to relocate the unit, minimising operational downtime.
• Climate Class 4 (Tropical) rating with a maximum ambient temperature tolerance of 40°C ensures reliable performance in hot commercial bar and kitchen environments.
• Dimmable, cool white (5500–6500K) full-height LED strip lighting enhances product presentation and draws customer attention to displayed beverages.
• Six adjustable-height, powder-coated wire shelves allow flexible configuration to suit a variety of bottle and can formats, with straightforward reconfiguration as the product range evolves.

Key Features

• 533-litre gross capacity across three glass swing doors, providing high-volume beverage storage in an undercounter footprint.
• Three glass swing doors, each equipped with a self-closing mechanism and an integrated locking tab for security and temperature retention.
• Six adjustable-height, powder-coated wire shelves: 2 inner shelves (547W x 530L mm) and 4 outer shelves (605W x 530L mm).
• Height adjustable with castors from 820 to 835 mm, or 725 mm with plinth mount, allowing flexible installation configurations.
• Total floor area: 1.49 m².
• Body constructed from powdercoat galvanised steel or stainless steel; interior and exterior available in stainless steel (304 grade).
• R290 natural refrigerant (81g charge), a low global warming potential hydrocarbon refrigerant for environmentally responsible operation.
• Self-contained, fan-assisted cooling system with automatic defrost.
• Removable cartridge refrigeration unit with fully front-breathing access for rapid, safe on-site servicing.
• SKOPE-connect (SCS Connect) compatible controller enabling remote monitoring, temperature adjustment across a 0°C to 15°C range, LED dimming, and hush mode.
• Standard operating temperature range of 1°C to 4°C, adjustable to 0°C to 15°C via SKOPE-connect.
• Maximum ambient operating temperature of 40°C; Climate Class 4 (Tropical).
• GEMS energy consumption: 2.5 kWh/24h; GEMS Class 3M1.
• Power output: 0.62 kW; current draw: 2.6 amps.
• 1 x 24W cool white (5500–6500K) dimmable LED strip light mounted on the cabinet ceiling for full-height product illumination.

Specifications

• Width (mm): 2195
• Depth (mm): 680
• Height (mm): 830
• Weight (kg): 232
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 150
• Packed Width (mm): 2200.0
• Packed Height (mm): 800.0
• Packed Depth (mm): 700.0
• Shipping Cubic: 1.232000000m3
• Capacity (Litres): 533
• No. of Doors: 3
• Door Type: Glass
• Shelf Configuration: Six adjustable height, powder-coated wire shelves, 2 × inner shelf (547W × 530L), 4 × outer shelf (605W × 530L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 6
• Power (kW): 0.62
• Amps (A): 2.6
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​Standard <66 Hush Mode (via SKOPE-connect) <62
• Interior Lighting: 1 × 24W, cool white (5500-6500K) LED strip on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 3M1
• GEMS Energy Consumption: 2.5
• GEMS Annual Running Cost: $274 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
