Overview

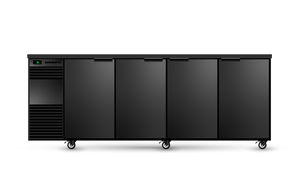

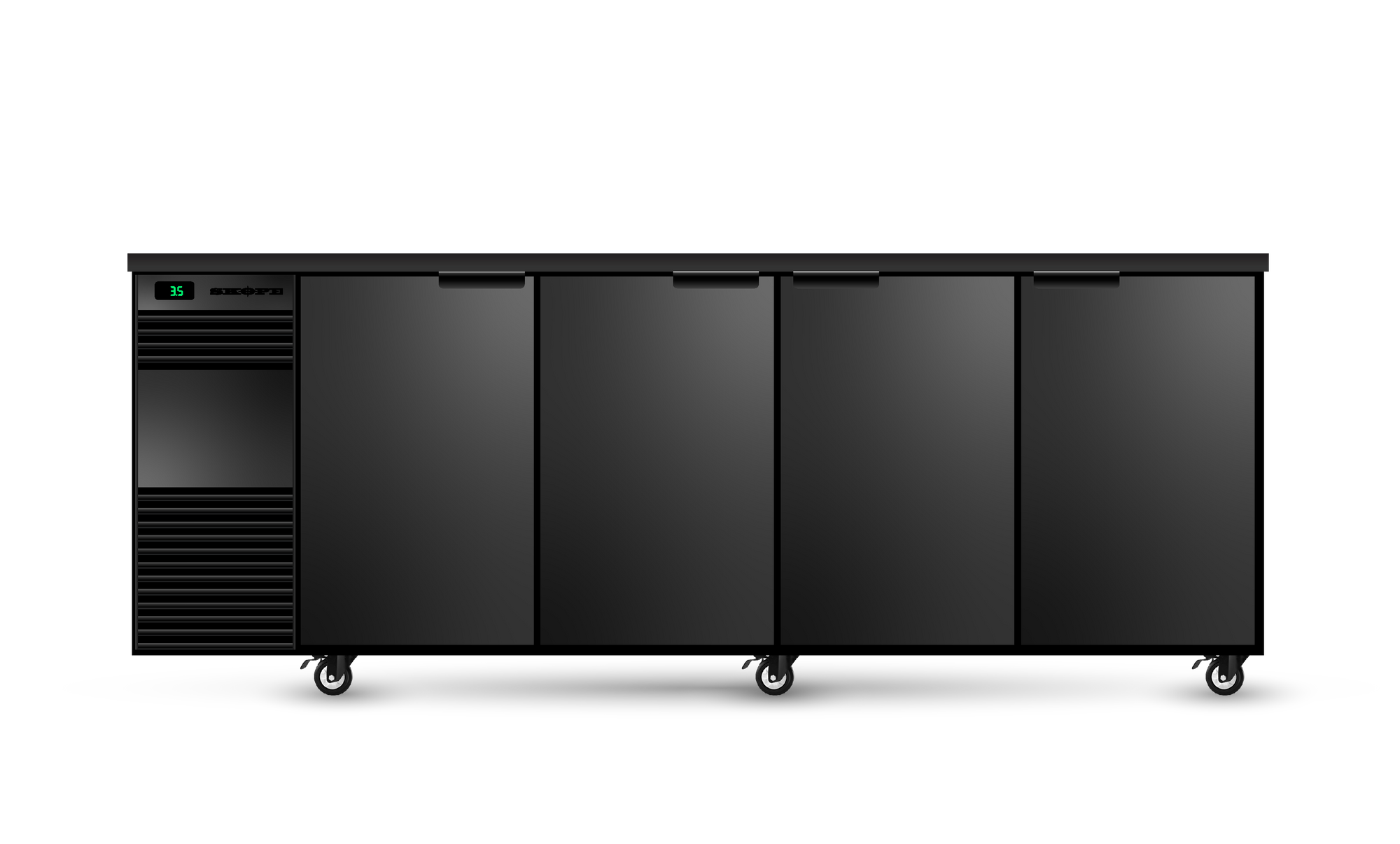

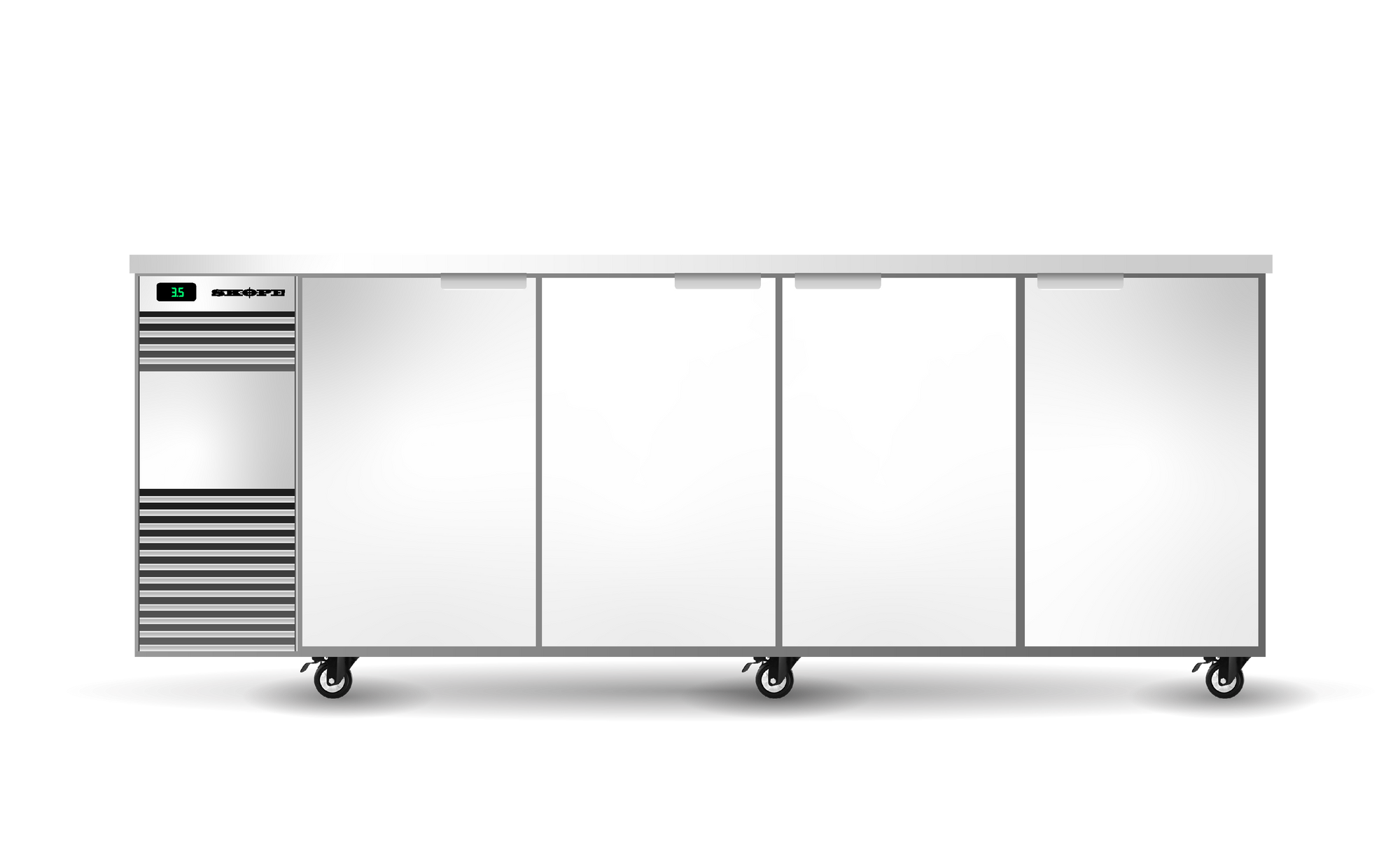

Skope BB.4.SSW BackBar Four Solid Swing Door Refrigerator

The Skope BB.4.SSW is a premium four solid swing door back bar refrigerator engineered for high-volume hospitality environments including restaurants, cafes, clubs, pubs and bars. Offering 860 litres of total cabinet capacity across four lockable, independently secured swing doors, it keeps beverages cold and ready at the point of service, supporting fast and efficient bar operations throughout busy service periods.

Powered by eco-friendly R290 natural refrigerant and rated to Climate Class 4 (Tropical) standards, the BB.4.SSW delivers exceptional energy efficiency with a GEMS Class 5M1 rating and an estimated annual running cost of just $441. The unit is SKOPE-connect compatible, enabling remote temperature monitoring and adjustment, dimmable LED lighting control, and a built-in hush mode for quieter operation when ambient noise matters.

Key Benefits

• Maximises beverage storage with flexible shelving that accommodates two rows of 750ml wine or Riesling bottles per door, three rows of 355ml beer bottles per door, three rows of 600ml PET bottles per door, or six rows of standard beer cans per door.
• Outstanding energy efficiency with up to 63% reduction in energy consumption compared to conventional units, translating to savings of up to $750 per year on power costs.
• Fast temperature recovery keeps pace with the demands of busy service, maintaining product temperature even during frequent door openings.
• Built-in hush mode via SKOPE-connect reduces operational noise to below 62 dB, making it suitable for quieter venue settings without sacrificing performance.
• Every door section features an integrated locking tab and automatic self-closing action, protecting stock security and helping maintain consistent cabinet temperature.
• Fully front-breathing interchangeable modular cartridge design enables quicker and safer servicing without pulling the unit away from the wall.
• SKOPE-connect compatibility allows remote adjustment of temperature (0°C to 15°C), LED dimming and monitoring, giving operators greater control from a smart device.
• Uses eco-friendly R290 natural refrigerant, reducing environmental impact while meeting modern green refrigeration standards.
• Dimmable full-height cool white LED strip lighting enhances product presentation and can be adjusted to suit the ambience of the venue.

Key Features

• 860-litre total cabinet capacity across four solid swing doors.
• Four swing doors each fitted with an integrated locking tab and automatic self-closing mechanism for security and temperature retention.
• Eight adjustable-height, powder-coated wire shelves: four outer shelves (497W x 440L mm) and four inner shelves (555W x 440L mm).
• Single dimmable cool white (5500-6500K) LED strip light mounted on the cabinet ceiling for consistent interior illumination.
• SCS Connect control system with full SKOPE-connect compatibility for remote temperature and lighting management.
• Temperature range of 1°C to 4°C as standard; adjustable from 0°C to 15°C via SKOPE-connect.
• R290 natural refrigerant (81g charge) for environmentally responsible, high-efficiency operation.
• Climate Class 4 (Tropical) rated, suitable for operation in ambient temperatures up to 40°C.
• GEMS Class 5M1 rating with an annual energy consumption of 4.03 kWh (GEMS) and estimated annual running cost of $441 at $0.30/kWh.
• Automatic defrost with fan-assisted cooling for consistent temperature distribution throughout the cabinet.
• Standard operational noise level below 66 dB; reduced to below 62 dB in hush mode via SKOPE-connect.
• Fully front-breathing modular cartridge design allows servicing from the front without relocating the unit.
• Body constructed from powdercoat galvanised steel or stainless steel; exterior and shelving in 304 stainless steel.
• Self-contained refrigeration system requiring no external chiller or remote condenser.
• Power supply: 220-240V AC, 50 Hz, single phase; 0.96 kW, 4 amps, with a 1.9m power cord and 3-pin 10-amp plug.
• Overall dimensions: 2605mm wide x 590mm deep x 1025mm high; unit weight 278 kg.
• Benchtop not included; an optional benchtop is available and priced separately.

Specifications

• Width (mm): 2605
• Depth (mm): 590
• Height (mm): 1025
• Weight (kg): 278
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 860
• No. of Doors: 4
• Door Type: Solid
• Shelf Configuration: Eight adjustable height, powder-coated wire shelves, 4 × outer shelf (497W × 440L), 4 × inner shelf (555W × 440L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 8
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​​Standard <66 Hush Mode (via SKOPE-connect) <62​
• Interior Lighting: Single dimmable, cool white (5500-6500K) LED strip on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 5M1
• GEMS Energy Consumption: 4.03
• GEMS Annual Running Cost: $441 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
