Overview

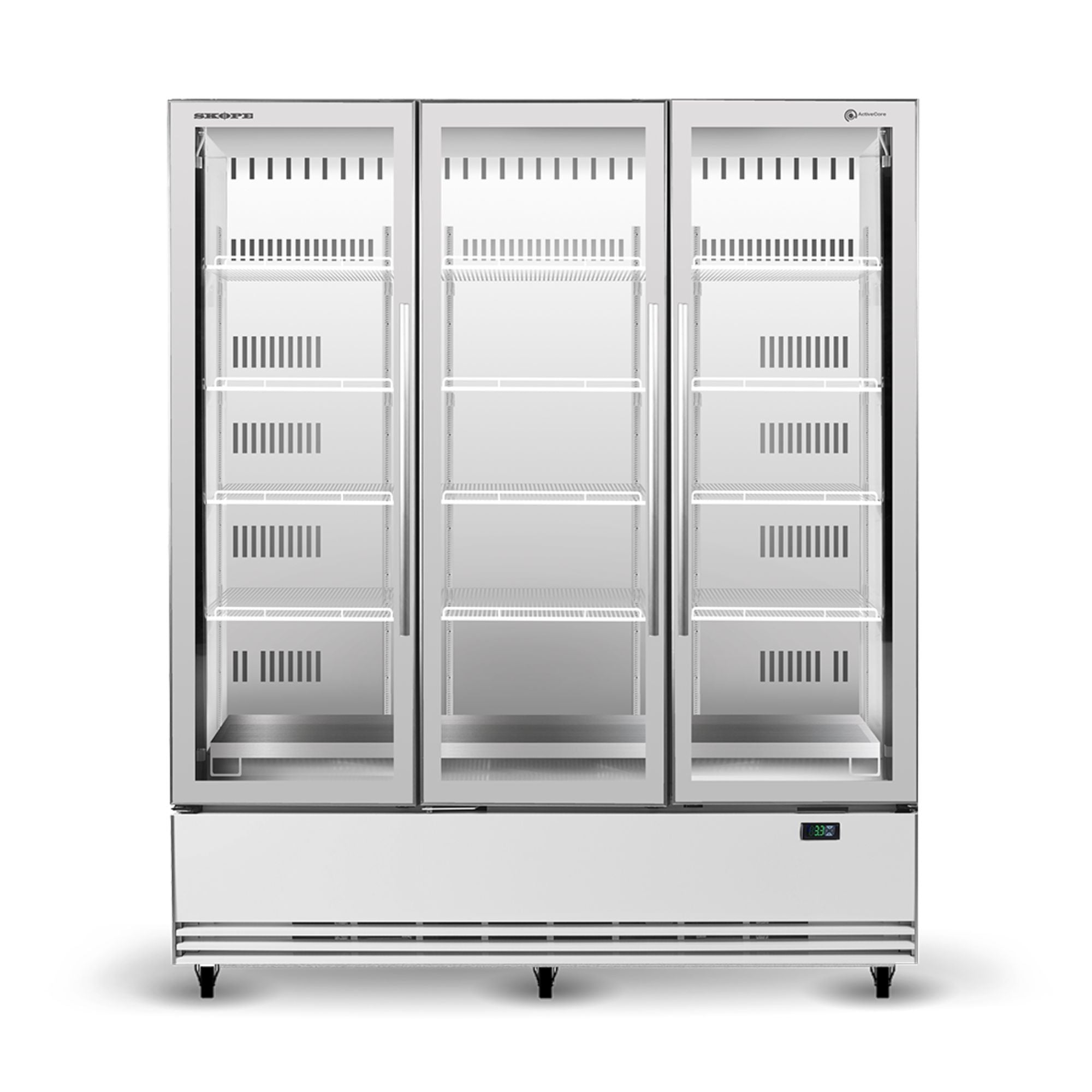

Skope BME1500N-AC 3 Glass Door Display or Storage Fridge with Lit Sign

The Skope BME1500N-AC is a triple glass door commercial display fridge designed for high-impact product presentation in hospitality and retail environments. With 1433 litres of eye-level chilled display space, a bottom-mount refrigeration unit, and a customisable illuminated lightbox sign, this unit combines strong visual merchandising capability with practical, space-efficient engineering built to New Zealand standards.

Powered by the natural refrigerant R290 and controlled via the SKOPE-connect app over Bluetooth wireless technology, the BME1500N-AC delivers intelligent, energy-efficient operation with a GEMS Class 3M1 rating. The self-contained, bottom-mount ActiveCore refrigeration system is fully removable for straightforward servicing, while the tropical Climate Class 4 rating confirms reliable performance in demanding ambient conditions up to 40°C.

Key Benefits

• Three full-height glass doors with 6 shelves per door maximise product visibility and accessibility, encouraging customer engagement and driving impulse purchases.
• Bottom-mount refrigeration places the compressor unit below the display zone, freeing the entire cabinet height for eye-level product presentation.
• The SKOPE-connect app via Bluetooth allows operators to monitor and adjust temperature remotely, set alerts, and access performance data without being on-site.
• R290 natural refrigerant (99g charge) has a very low global warming potential, supporting sustainability commitments and compliance with evolving environmental regulations.
• GEMS Class 3M1 certification with an annual running cost of approximately $576 at $0.30/kWh helps operators manage ongoing energy expenditure in high-use settings.
• An illuminated LED lightbox sign accommodates custom graphics for branding or promotional messaging, increasing visibility from a distance.
• Fan-assisted cooling with automatic defrost maintains consistent temperature throughout the cabinet, reducing manual maintenance requirements.
• The integral, removable ActiveCore refrigeration unit simplifies planned maintenance and minimises downtime during servicing.
• Constructed with a powdercoat galvanised steel body and 304 stainless steel exterior, the cabinet withstands the rigours of busy commercial kitchen and retail floor environments.

Key Features

• Three glass doors with 6 adjustable shelves per door, totalling 15 shelves across the cabinet
• 1433-litre gross capacity across a 1.34m² total floor footprint
• Bottom-mount, self-contained, integral and removable ActiveCore refrigeration unit (model UBHCNI-0008)
• R290 natural refrigerant with a 99g charge
• Temperature range of 1°C to 4°C standard; adjustable from 1°C to 15°C via SKOPE-connect
• Maximum ambient operating temperature of 40°C, Climate Class 4 (Tropical)
• Interior lighting: 3 x 1370mm 15W LED strips for bright, even illumination across all shelves
• Illuminated sign lighting: 1 x 1590mm 18W LED lightbox for custom branding or promotional graphics
• SCS Connect controller with SKOPE-connect compatibility for app-based monitoring and adjustment
• Bluetooth wireless technology for remote connectivity
• Automatic defrost and fan-assisted cooling for consistent cabinet temperatures
• GEMS Class 3M1 rating; GEMS energy consumption of 5.26 kWh/24h
• Power draw of 0.82 kW; current draw of 3.4A (includes unit draw of 2.6A)
• Power supply: 220-240V AC, 50Hz, single phase
• Supplied with a 2.0m power lead and 10A plug
• Body material: powdercoat galvanised steel; exterior material: 304 stainless steel
• Dimensions: 1640mm W x 795mm D x 2195mm H; weight: 330kg
• Manufactured in New Zealand
• 5-year warranty

Specifications

• Width (mm): 1640
• Depth (mm): 795
• Height (mm): 2195
• Weight (kg): 330
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 1433
• No. of Doors: 3
• Door Type: Glass
• Shelf Configuration: 6 (per door)
• Body Material: Powdercoat galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 15
• Power (kW): 0.82
• Amps (A): 3.4
• Power Cord: Supplied with 2.0m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 1°C to 15°C)
• Refrigerant: R290 / 99g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 3M1
• GEMS Energy Consumption: 5.26
• GEMS Annual Running Cost: $576 p.a. (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 3 x 1370mm 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
