Overview

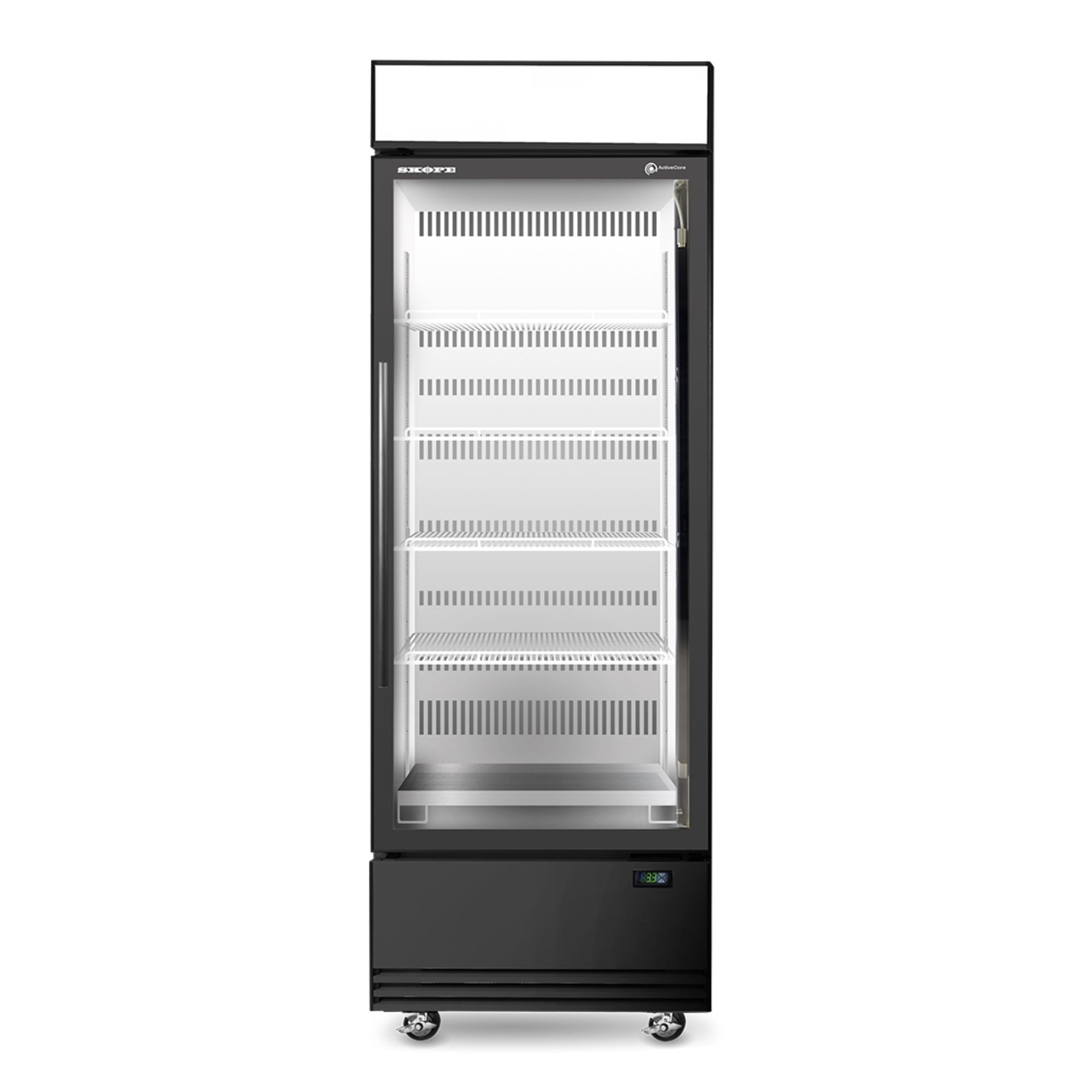

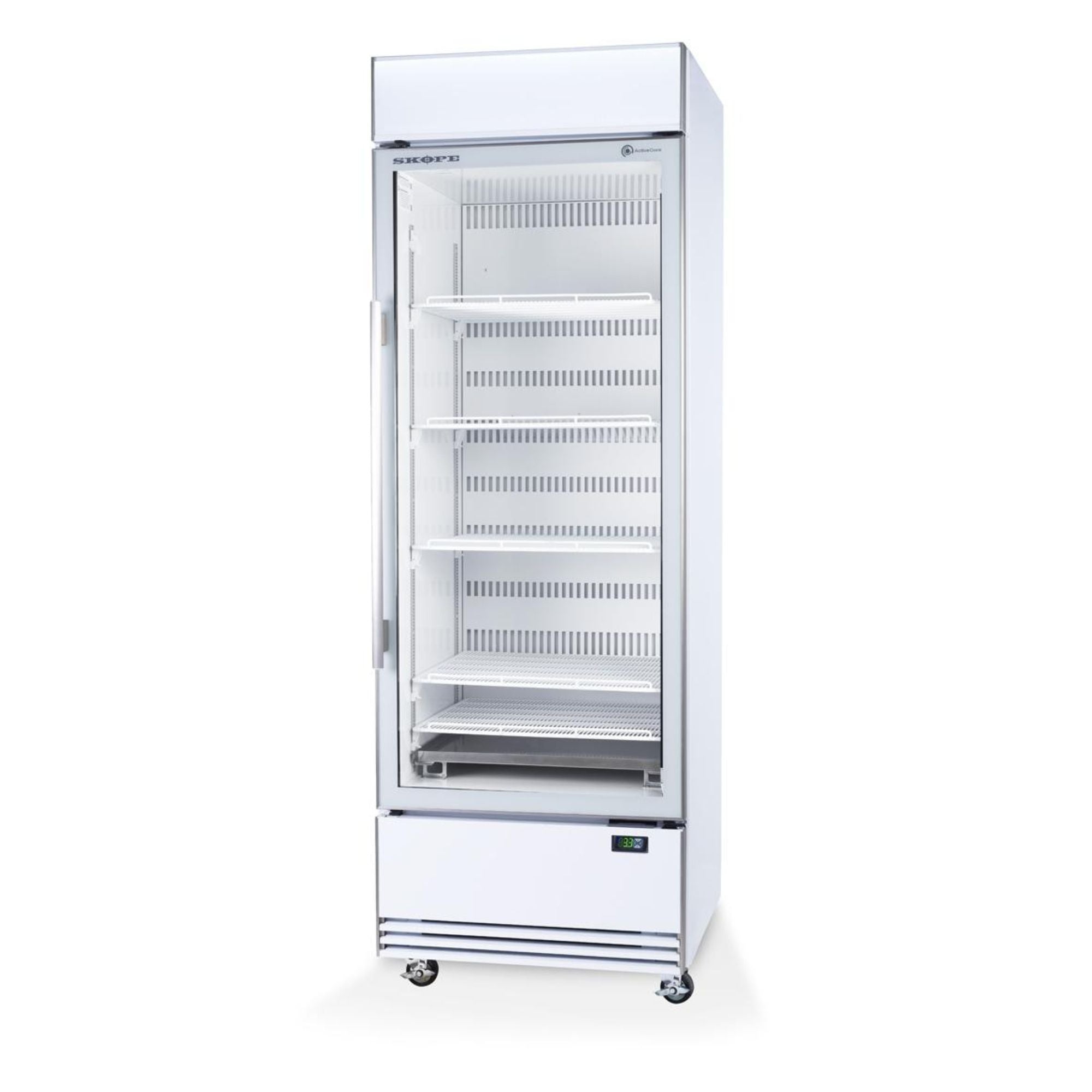

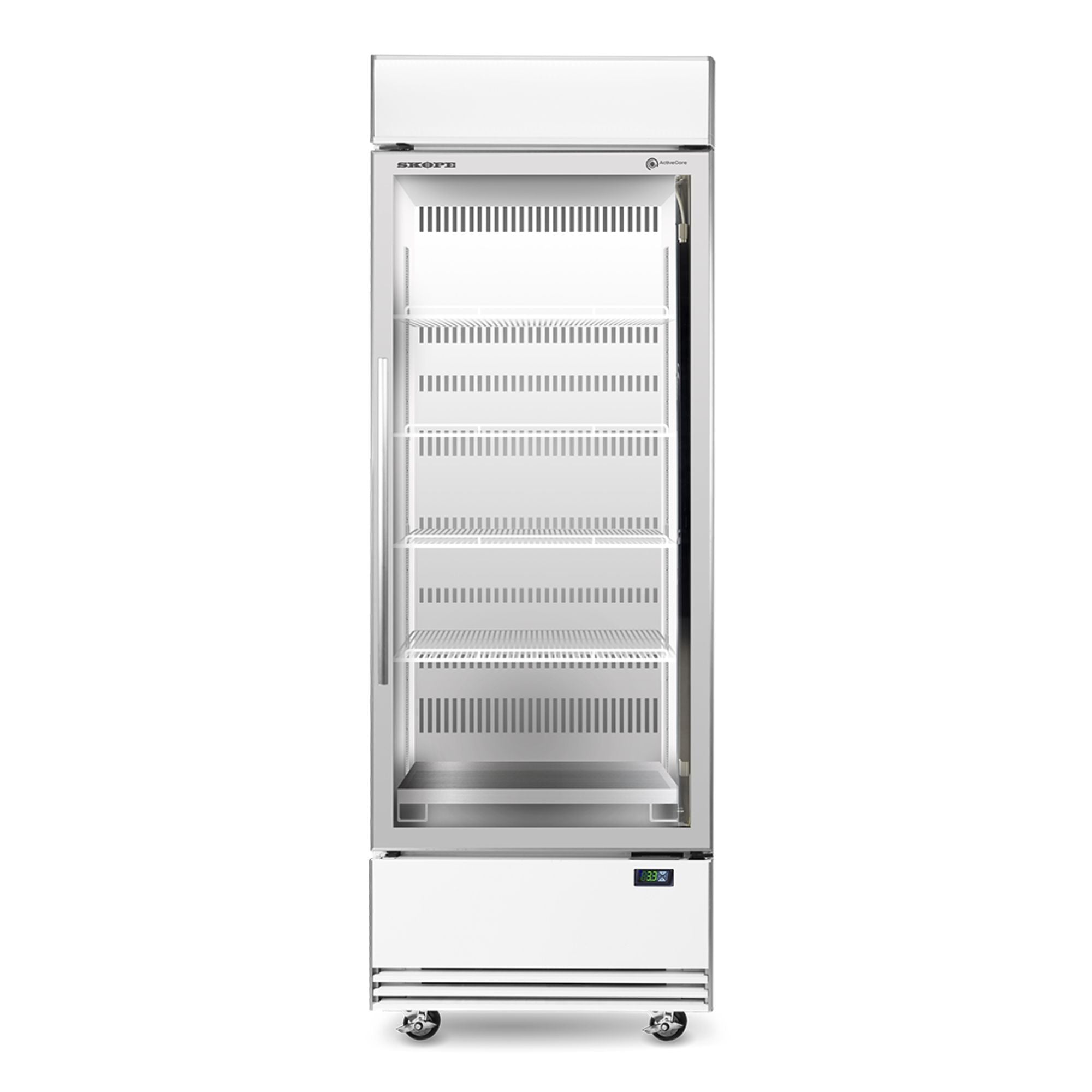

Skope BME600N-AC ActiveCore 1 Glass Door Upright Display or Storage Fridge with Lit Sign

The Skope BME600N-AC ActiveCore is a high-efficiency, bottom-mounted, single upright glass door display fridge delivering 584 litres of eye-level chilled storage across five adjustable wire shelves and one fixed stainless steel shelf. Designed for front and back-of-house use in restaurants, cafés, clubs, pubs, bars, and quick service restaurants, the unit operates on R290 natural refrigerant for ultra-low energy consumption, low heat discharge, and quiet operation, and is certified under GEMS climate class 3 with full testing to 40°C ambient environments.

A frameless, double-glazed, argon-filled, low-e insulated glass door maximises product visibility while guarding against condensation, and a built-in illuminated sign panel with space for custom backlit branding adds strong front-of-house presence. The bottom-mounted ActiveCore refrigeration cartridge is fully removable and modular, shared across the 600 L to 1000 L range, enabling rapid servicing with minimal business disruption. The SCS Connect smart controller pairs with the free SKOPE-connect smartphone app via Bluetooth for remote temperature setting, scheduling LED lighting to trade hours, and energy monitoring.

Key Benefits

• Eye-level product display across the full cabinet height drives customer engagement and impulse purchases at point of sale.
• R290 natural refrigerant delivers ultra-low energy consumption, reduced heat discharge into the kitchen, and a quieter operating environment.
• Frameless double-glazed, argon-filled, low-e glass door provides maximum product visibility while preventing condensation build-up.
• Fully removable, modular bottom-mounted ActiveCore refrigeration cartridge allows safe, fast servicing of the flammable refrigerant in line with best practice, minimising operational downtime.
• SKOPE-connect app via Bluetooth lets operators set temperatures, schedule LED lighting to opening hours, monitor energy use, and receive alerts from a smartphone.
• Illuminated sign panel accepts custom backlit branding graphics, supporting venue identity without additional signage costs.
• Ezi-clip numbered shelf supports allow quick, tool-free adjustment of the five wire shelves to suit varying bottle and product heights.
• Climate class 5 tested to 40°C ambient temperature makes the unit suitable for demanding tropical and commercial kitchen environments.
• GEMS-certified 3M1 energy rating with an annual running cost of approximately $254 at $0.30/kWh keeps operating expenses predictable and low.

Key Features

• Bottom-mounted, integral, fully removable modular ActiveCore refrigeration unit (UBHCNI-008) shared across the 600 L to 1000 L fridge range for fast cross-model servicing.
• 584-litre gross capacity in a single upright glass door configuration suitable for display or general storage.
• Frameless glass door with double-glazed, argon-filled, low-e insulated panels for condensation protection and unobstructed product viewing.
• Five adjustable-height wire shelves plus one fixed stainless steel shelf; shelves adjusted via ezi-clip numbered shelf supports.
• Interior lighting: 1 x 1370 mm, 15 W LED strip providing bright, even illumination throughout the cabinet.
• Illuminated external sign panel: 1 x 670 mm, 7 W LED, accepts custom backlit branding graphics.
• SCS Connect smart controller, SKOPE-connect compatible, with Bluetooth wireless technology for app-based temperature control, LED scheduling, energy monitoring, and alerts.
• Temperature range 1°C to 4°C (M1 compliant food and beverage storage); adjustable up to 15°C via SKOPE-connect app.
• R290 natural refrigerant, 99 g charge, for ultra-low global warming potential and reduced energy consumption.
• Fan-assisted cooling with automatic defrost for consistent, even temperature distribution.
• GEMS class 3M1 certified; energy consumption 2.32 kWh/24 h; estimated annual running cost $254 (at $0.30/kWh).
• Maximum ambient operating temperature 40°C; climate class 4 (tropical) certified and tested to climate class 5.
• Cabinet constructed from powder-coated galvanised steel body with 304 stainless steel exterior panels.
• Self-contained refrigeration system; 220-240 V AC, 50 Hz, single-phase supply; 0.70 kW; 2.9 A total current draw.
• Supplied with a 2.0 m, 10 A plug and lead.
• Total floor area 0.63 square metres; dimensions 740 mm (W) x 795 mm (D) x 2195 mm (H); weight 185 kg.
• Certified to all applicable Australian and New Zealand refrigeration and electrical safety standards.
• Suitable for front-of-house and back-of-house applications including restaurants, cafés, clubs, pubs, bars, and quick service restaurants.

Specifications

• Width (mm): 740
• Depth (mm): 795
• Height (mm): 2195
• Weight (kg): 185
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 584
• No. of Doors: 1
• Door Type: Glass
• Shelf Configuration: 5 x wire + 1 x SS
• Body Material: Powdercoat galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 4
• Power (kW): 0.7
• Amps (A): 2.9
• Power Cord: Supplied with 2.0m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 1°C to 15°C)
• Refrigerant: R290 / 99g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 3M1
• GEMS Energy Consumption: 2.32
• GEMS Annual Running Cost: $254 p.a. (@0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 1370mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
