Overview

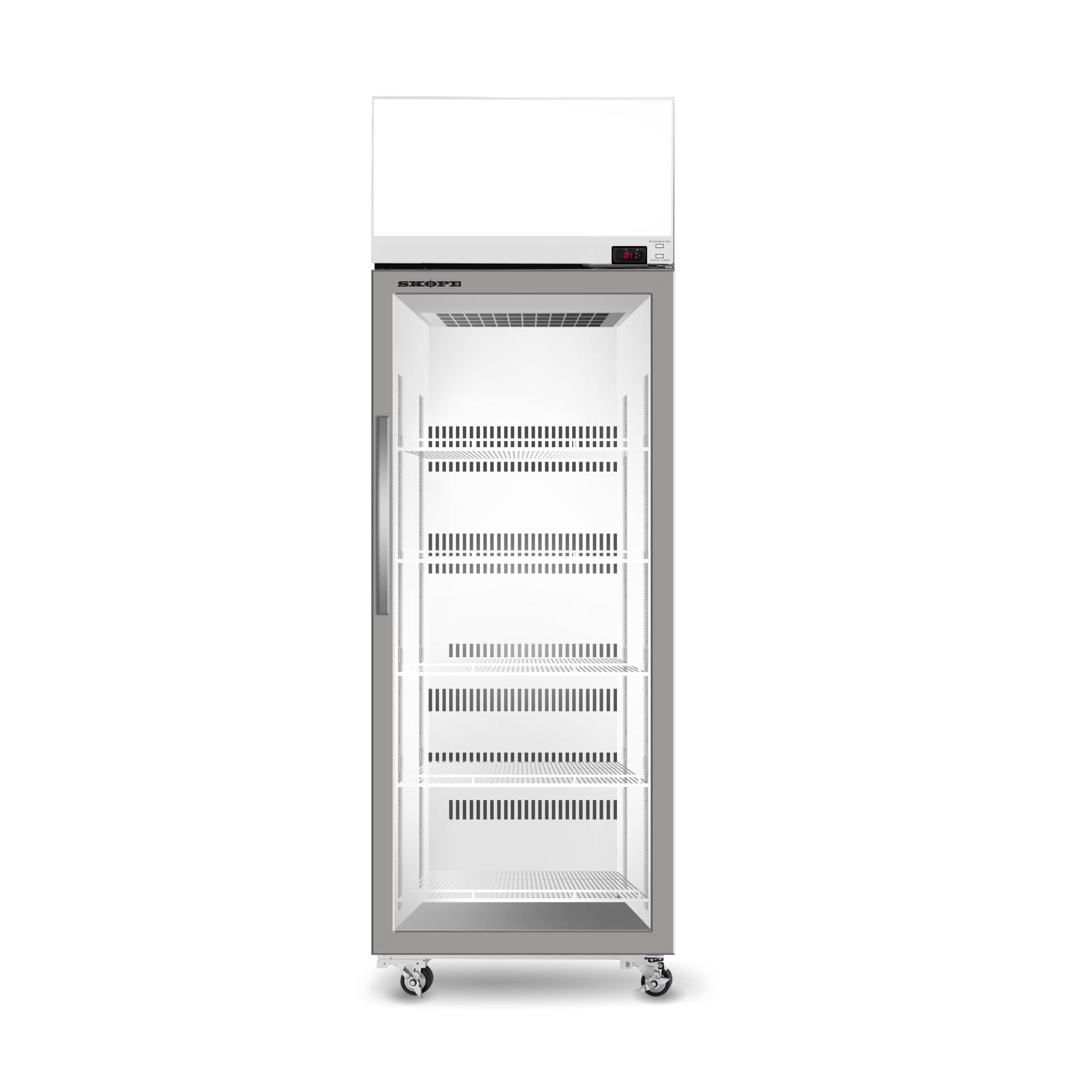

Skope TCE650N EziCore 1 Glass Door Display or Storage Fridge

The Skope TCE650N EziCore is a top-mount, self-contained vertical display fridge offering 557 litres of chilled storage behind a single glass door. Built for demanding commercial environments, it runs on natural R290 refrigerant, operates within a Climate Class 4 (Tropical) rating, and carries M1 compliance for the storage of food and dairy products, making it suitable for restaurants, cafes, bars, clubs, convenience stores, supermarkets, schools and accommodation venues.

The EziCore design centres on a removable cartridge-style top-mount refrigeration unit that simplifies servicing and minimises downtime. Double-glazed doors deliver strong thermal performance and prevent condensation, while an LED illuminated lightbox combined with door-integrated LED lighting ensures excellent product visibility and presentation. Low energy consumption, quiet operation and an electronic controller with digital temperature display round out a cabinet engineered for reliable, cost-effective daily use.

Key Benefits

• Removable EziCore top-mount refrigeration cartridge makes servicing fast and straightforward, reducing costly downtime in a busy kitchen or retail environment.
• Double-glazed door construction provides superior thermal insulation and eliminates condensation on the glass, keeping product clearly visible at all times.
• Built-in LED lightbox and door-integrated LED lighting maximise product illumination and brand visibility to drive impulse purchases.
• R290 natural refrigerant is a truly green refrigeration solution with very low global warming potential, supporting sustainability goals.
• M1 compliance confirms the cabinet is approved for storage of food and dairy products, meeting food safety requirements.
• Climate Class 4 (Tropical) rating ensures reliable performance in ambient temperatures up to 35°C, ideal for warm Australian kitchens and back-of-house areas.
• Four adjustable, tiltable plastic-coated wire shelves allow flexible merchandising and high-volume storage configurations.
• Automatic defrost and fan-assisted cooling maintain an even, consistent temperature throughout the cabinet without manual intervention.
• Low energy consumption of 3.15 kWh per 24 hours keeps running costs down, with an estimated annual energy cost of $345 at $0.30/kWh.

Key Features

• 557-litre capacity single glass door vertical display chiller.
• Top-mounted, removable EziCore refrigeration cartridge for easy access and quick servicing.
• Double-glazed glass door prevents condensation and provides strong thermal performance.
• Built-in LED illuminated lightbox in the door frame plus door-integrated LED lighting (2 x 6 W, 1360 mm LED strips).
• Four adjustable height and tiltable plastic-coated wire shelves per door for flexible product display.
• Electronic controller with digital temperature display for precise, easy temperature management.
• Operating temperature range of 0°C to +5°C, suitable for chilled food and dairy storage.
• R290 natural refrigerant with automatic defrost and fan-assisted cooling.
• Climate Class 4 (Tropical) rated for ambient temperatures up to 35°C.
• M1 compliant for food and dairy product storage.
• GEMS Class 3M1 rating with energy consumption of 3.15 kWh/24 h.
• Exterior finished in stainless steel (304 grade); body constructed from powdercoat galvanised steel.
• Power supply: 220-240 V AC, 50 Hz, single phase; 0.72 kW, 3 A draw.
• 2.3 m power cord with 3-pin, 10 A plug for standard Australian power outlets.
• Noise level of 65 dB for relatively quiet operation.
• Self-contained refrigeration system requires no remote condensing unit.
• Suited to restaurants, cafes, bars, clubs, quick service restaurants, convenience and petrol outlets, supermarkets, schools and accommodation venues.

Specifications

• Width (mm): 740
• Depth (mm): 750
• Height (mm): 2210
• Weight (kg): 136.6
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 557
• No. of Doors: 1
• Door Type: Glass
• Shelf Configuration: x4 adjustable height plastic-coated wire shelves
• Body Material: Powdercoat galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 4
• Power (kW): 0.72
• Amps (A): 3
• Power Cord: 2.3 m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 35
• Temperature Range: 0 to +5
• Refrigerant: R290 Natural Refrigerant
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): 65
• Interior Lighting: 2 × 6 W, 1360 mm LED in door frame
• Control Type: Electronic controller with digital temperature display
• GEMS Class: 3M1
• GEMS Energy Consumption: 3.15 kWh/24 h
• GEMS Annual Running Cost: $345 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
