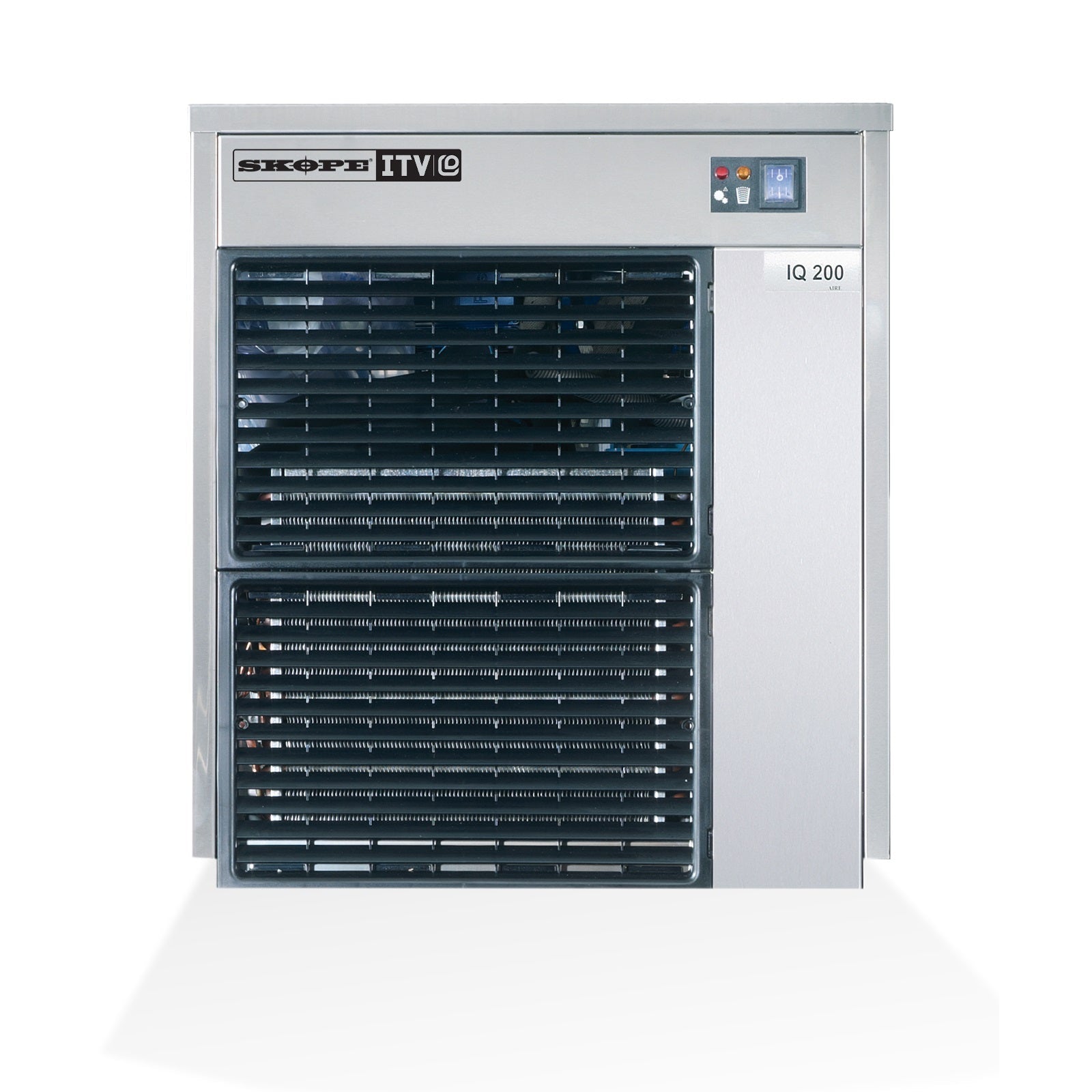

Skope ICE QUEEN IQ200 Modular Granular Ice Maker
Couldn't load pickup availability
Overview
The IQ200 is a modular wet granular ice maker perfect for presenting and transporting fish, fruit and vegetables. This commercial ice machine can make more than 200kg of ice every 24 hours and can be partnered with a SILO ice bin to create an optimal ice production and food transportation solution.
- Ice type: wet granular ice - perfect for presenting and transporting fresh food
- Suitable for very hot climates (ambient temperatures up to 43°C)
- Choose from storage bins - S160, S220, S350, S500 or storage bin with trolley system - SCS150, SCS300, SCD400
- Designed for food retail outlets and production facilities - 515 W x 550 D x 575 H (mm)
- R452A refrigerant - a 45% reduction in GWP (global warming potential) over previous R404A
- Auger built from strong solid AISI 304 stainless steel, with a resilient coating that maximizes product lifespan
- The most energy efficient evaporator in the market
- Best suited to: Clubs / Pubs / Bars, Convenience / Petrol / Supermarkets, Food Production, Medical / Aged Care
- Dimensions: 515 W x 550 D x 575 H (mm)
- Refrigeration Unit: Modular
- Ice Production (kg/24h): 220
- Ice Storage (kg): Separate storage bin required
- Ice Cube Dimensions: 25% residual water content
- Temperature Range: 10°C to 43°C
- Refrigerant: R452A
- Door Type: Solid
- Material: AISI 304 stainless steel body
- Total Floor Area (m2): 0.20
- Weight (kg): 52
- Current Draw (Amps): 5
- Power Supply: 220-240V a.c. 50Hz
Product Dimensions: 515(W) x 486(H) x 550(D)mm
Options Available:
- Drain pump SXX11725-P
- Replacement filter cartridge SXX11696
- Water filter kit SXX11698
Contact Us for more Information
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
