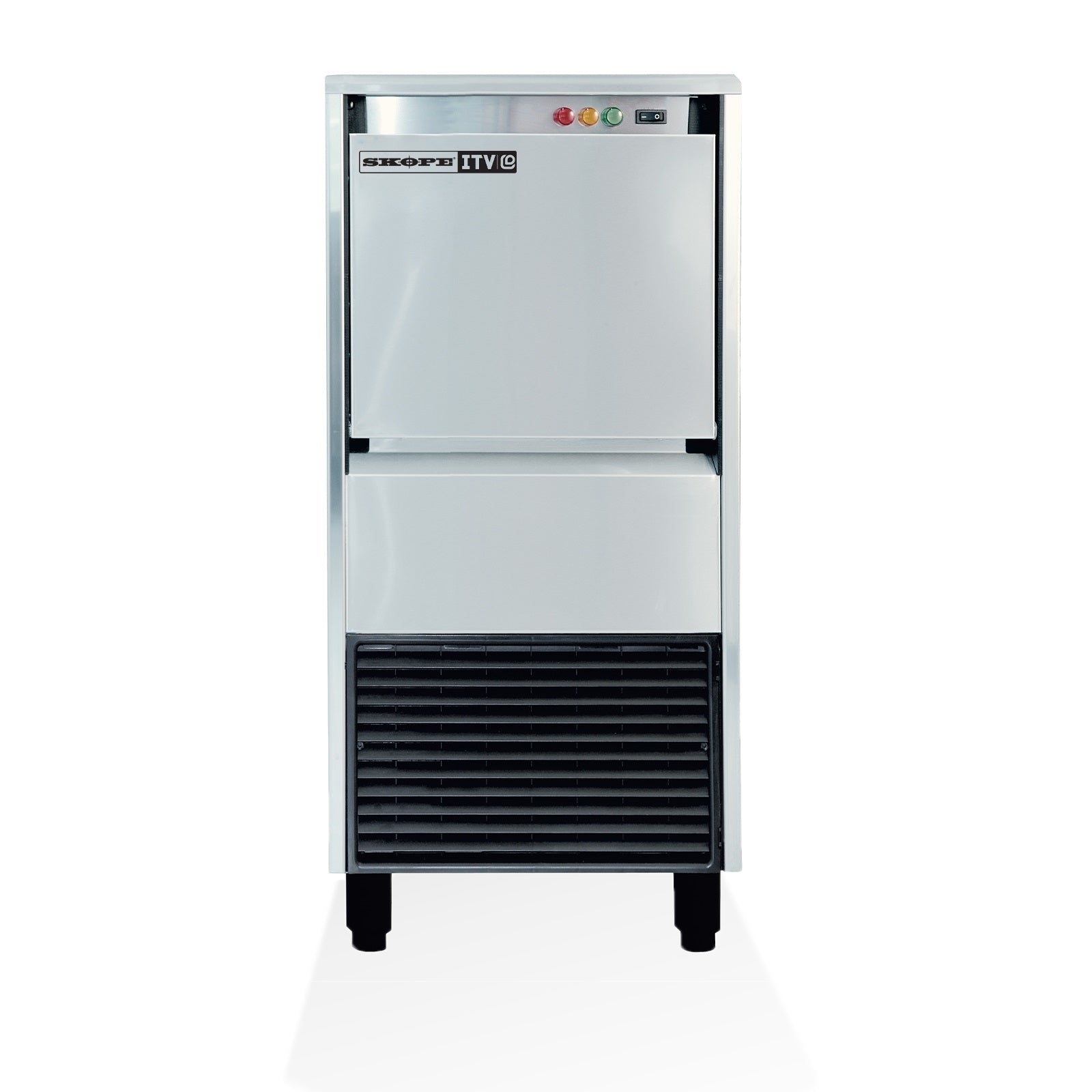

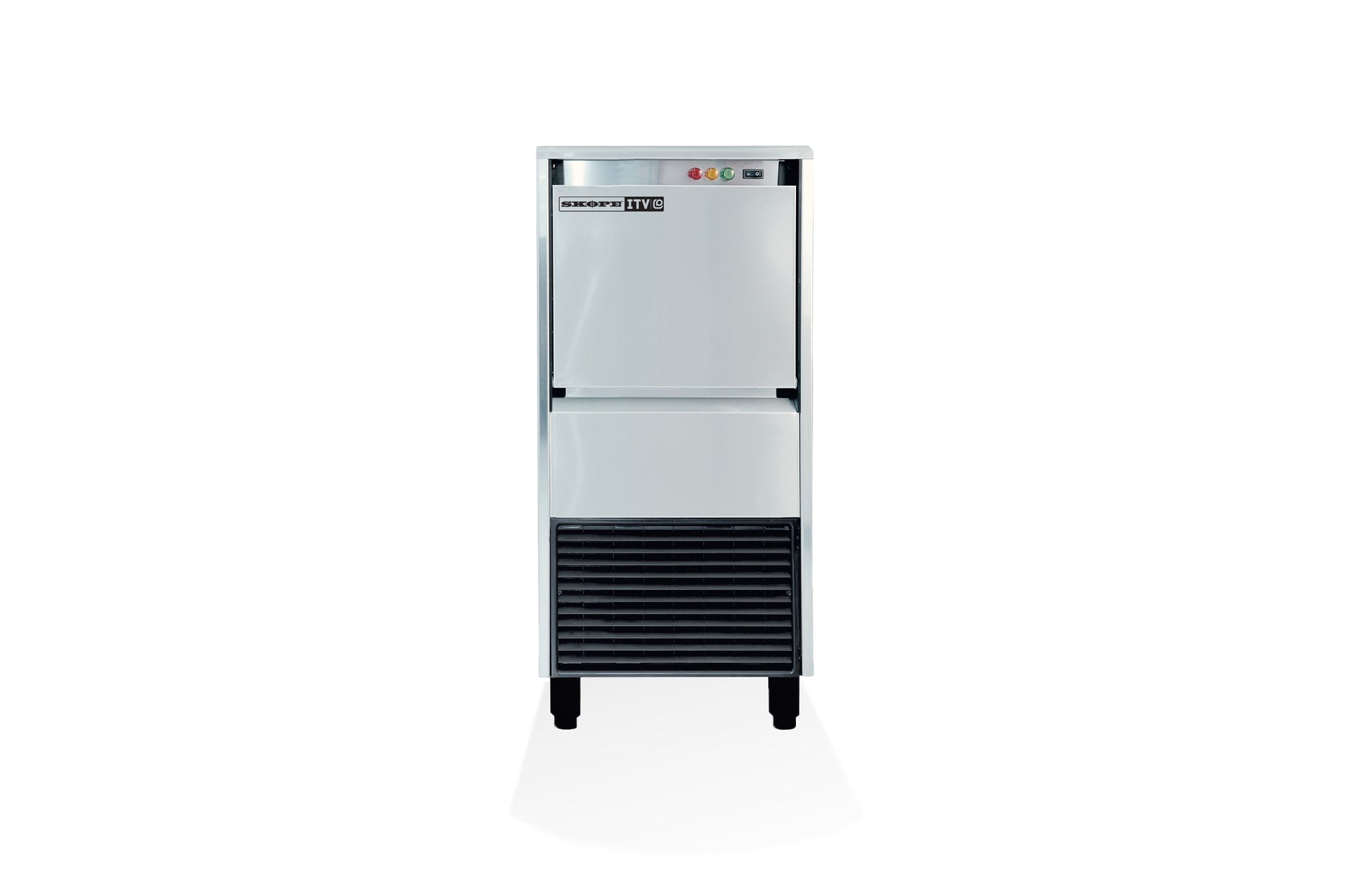

Skope ICE QUEEN IQ50 Self-Contained Granular Ice Maker R290
Couldn't load pickup availability
Overview
Make 74kg/24hours of dry granular ice with more power efficiency and virtually zero impact on the environment thanks to R290 Hydrocarbon natural refrigerant. Great for cocktail bars and spa therapies, the IQ50 is built to last and designed for professionals. Features include speed control and an easy cleaning switch.
- Now with R290 Hydrocarbon natural refrigerant technology for even lower bills and virtually zero impact on the environment
- Ice type: dry granular ice - perfect for cocktails, storage of perishable foods, healthcare and therapeutic treatments
- Suitable for very hot climates (ambient temperatures up to 43°C)
- Has 20kg of convenient built in ice storage capacity
- Undercounter design with small footprint is perfect for small spaces like cocktail bars and foodservice outlets - 465 W x 595 D x 789 H (884 - 934 with legs) (mm)
- Easily built into joinery with front and rear-facing ventilation (100mm clearance required)
- Auger built from strong solid AISI 304 stainless steel, with a resilient coating that maximizes product lifespan
- Easy servicing without disassembling the whole machine
- Best suited to: Clubs / Pubs / Bars, Convenience / Petrol / Supermarkets, Medical / Aged Care
- Dimensions: 465 W x 595 D x 784 (889 - 939 with legs) H (mm)
- Refrigeration Unit: Self Contained
- Ice Production (kg/24h): 74
- Ice Storage (kg): 20
- Ice Cube Dimensions: 20% residual water content
- Temperature Range: 10°C to 43°C
- Refrigerant: R290 (natural refrigerant)
- Door Type: Solid
- Material: AISI 304 stainless steel body
- Total Floor Area (m2): 0.33
- Weight (kg): 55
- kW: 0.34
- Current Draw (Amps): 2.1
- Power Supply: 230 Volts a.c. 50 Hz, single phase supply
Product Dimensions: 465(W) x 784(H) x 595(D)mm
Options Available:
- 10mm screwfix levelling feet ITV-33007
- Castors ITV-31703
- Drain pump SXX11725-P
- Replacement filter cartridge SXX11696
- Water filter kit SXX11695
Contact Us for more Information
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
