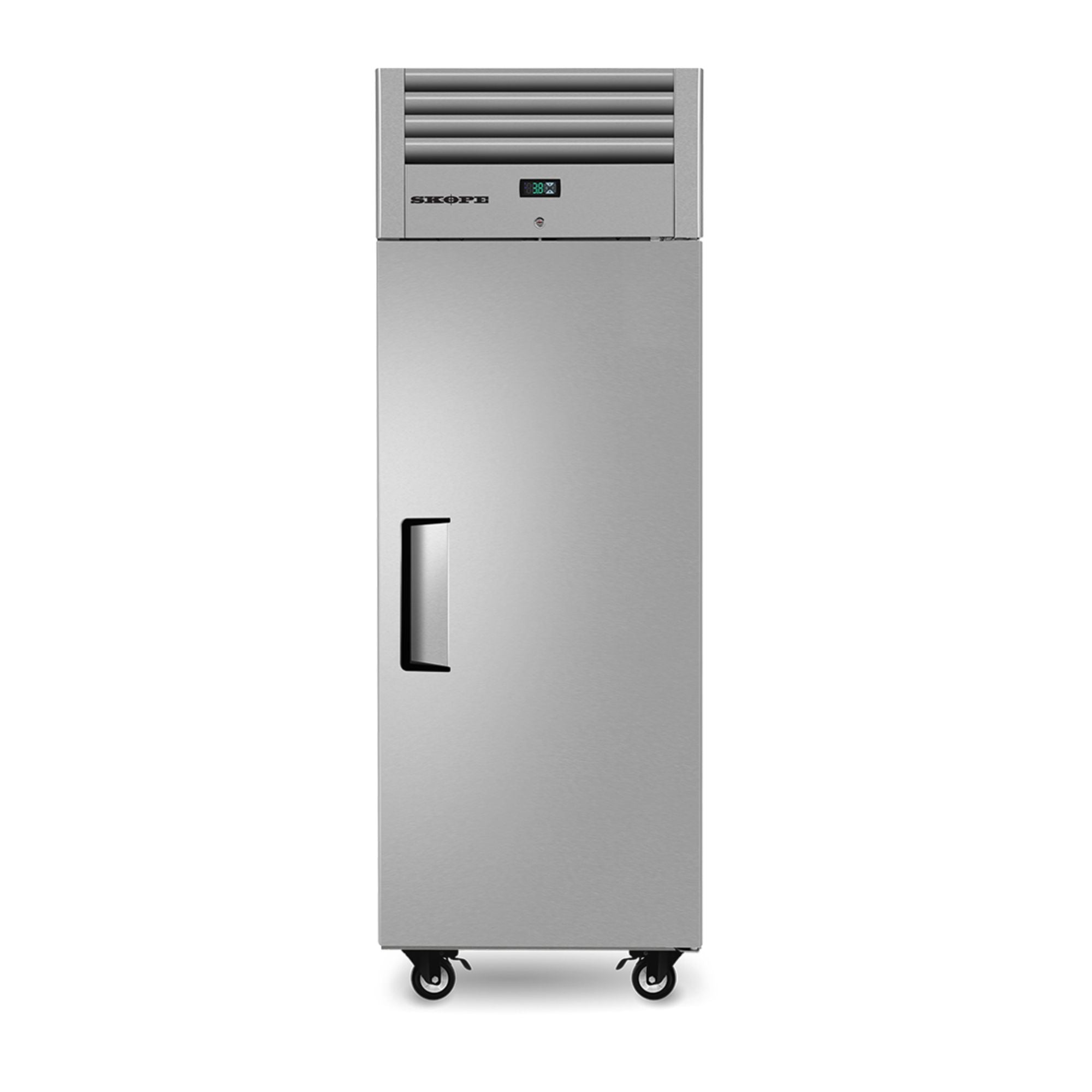

Skope RF7.UPF.1.SD ReFlex 1 Solid Door Upright Freezer

The Skope ReFlex RF7.UPF.1.SD is a single solid door upright freezer built for the demands of commercial kitchens, offering 469 litres of frozen storage within a compact 0.52 m² floor footprint. Constructed inside and out from 304 AISI stainless steel and charged with natural R290 refrigerant, it holds a Climate Class 4 (Tropical) rating that suits high-ambient Australian conditions across restaurants, cafes, aged care facilities, schools, clubs, hotels and similar operations. In 2019 it received the FCSI award recognising it as the outstanding new piece of hospitality equipment that year.

What distinguishes the ReFlex is its deep integration with the SKOPE-connect platform over Bluetooth wireless technology. Through the SCS Connect controller and accompanying smartphone app, operators can select precise temperature presets matched to specific product categories, including dairy, desserts, poultry, various seafood types, red meat and standard food safety requirements. The top-mounted, integral refrigeration cartridge is fully removable for straightforward servicing, while automatic defrost, door-activated LED lighting, self-closing lockable doors and adjustable shelving all contribute to lower labour and running costs in busy back-of-house environments.

Key Benefits

• Switch instantly between temperature presets tailored to specific product categories, covering dairy, desserts, poultry, live and fresh seafood, red meat and standard food safety compliance, via the SKOPE-connect smartphone app to reduce the risk of temperature non-compliance.
• A 0.52 m² floor footprint makes the most of valuable kitchen space while still delivering a generous 469-litre frozen storage capacity.
• R290 natural refrigerant with a minimal 94 g charge carries virtually no environmental impact, supporting sustainability goals and protecting against future refrigerant phase-outs.
• GEMS Class 5L1 rating with energy consumption of 7.40 kWh/24h keeps ongoing electricity costs low, with an estimated annual running cost of $811 calculated at $0.30/kWh.
• The top-mounted, integral and removable refrigeration cartridge makes routine servicing straightforward and keeps maintenance-related downtime to a minimum.
• Door-activated interior LED lighting (1 x 1200 mm, 12 W) improves product visibility and consumes less energy than conventional fluorescent fittings.
• Self-closing, lockable and reversible solid swing doors help maintain consistent cabinet temperatures and support flexible installation across varied kitchen layouts.
• Full 304 AISI stainless steel interior and exterior construction resists corrosion and stands up to the rigours of daily commercial use and back-of-house cleaning.
• Supplied with removable castors for easy repositioning and a ready-to-use 10 amp plug and lead, enabling straightforward installation without additional electrical work.

Key Features

• Single solid swing door configuration with self-closing, lockable and reversible hinging
• 469-litre gross storage capacity across a 0.52 m² footprint
• Full 304 AISI stainless steel construction, interior and exterior
• Top-mounted, integral, removable freezer refrigeration cartridge (model UTKDNI-0019) for easy serviceability
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology
• SKOPE-connect app presets covering dairy, desserts, poultry, live seafood, fresh seafood, red meat and standard food safety requirements
• Standard operating range of -21°C to -18°C; fully adjustable between -26°C and -12°C through the SKOPE-connect app
• R290 natural refrigerant, 94 g charge
• Automatic defrost
• Fan-assisted cooling
• Self-contained refrigeration system
• Climate Class 4 (Tropical); maximum ambient temperature 40°C
• GEMS Class 5L1; energy consumption 7.40 kWh/24h; estimated annual running cost $811 p.a. at $0.30/kWh
• 1 x 1200 mm, 12 W door-activated LED interior light
• 5 adjustable plastic-coated wire shelves
• Supplied with removable castors
• Supplied with 10 amp, 3-pin plug and lead
• Single-phase 220-240 V AC, 50 Hz power supply; 0.96 kW; 4.0 A current draw
• 3-year parts and labour warranty
• FCSI Best New Hospitality Equipment Product 2019 award winner

Specifications

• Width (mm): 680
• Depth (mm): 760
• Height (mm): 1985
• Weight (kg): 122
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 122
• Packed Width (mm): 800.0
• Packed Height (mm): 2000
• Packed Depth (mm): 700.0
• Capacity (Litres): 469
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 94g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, reversible, solid swing doors
• Shelf Configuration: 5 adjustable plastic coated wire shelves
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Shelves: 5
• No. of Doors: 1
• GEMS Class: 5L1
• GEMS Energy Consumption: 7.40
• GEMS Annual Running Cost: $811 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 1200mm, 12W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
