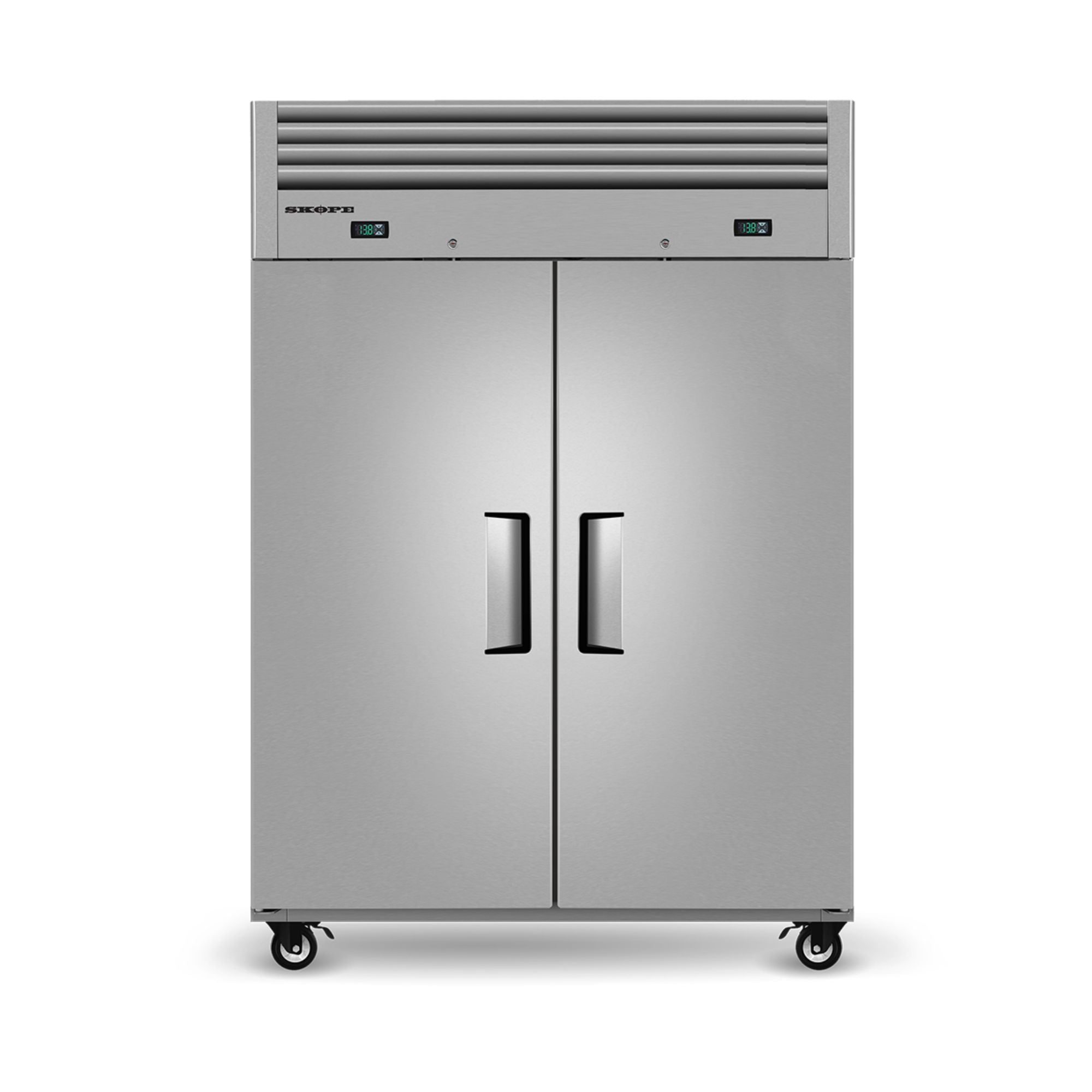

Skope RF8.UPC.2.SD ReFlex 2 Solid Door Upright GN 2/1 Compatible Fridge & Freezer

The Skope ReFlex RF8.UPC.2.SD is a dual-temperature upright combination unit delivering 1,034 litres of GN 2/1 compatible storage split across two independently controlled compartments, one refrigerated and one frozen. Constructed entirely from 304 AISI stainless steel inside and out, it is built to handle the demands of high-volume commercial environments including aged care facilities, educational institutions, accommodation providers, and busy back-of-house kitchen operations, with a Climate Class 4 tropical rating and a maximum ambient tolerance of 40°C.

At the core of the ReFlex platform is SCS Connect controller technology with SKOPE-connect Bluetooth compatibility, giving operators the ability to monitor and adjust temperatures remotely from a mobile device. A suite of enhanced product-type pre-sets allows staff to switch instantly between dedicated temperature profiles covering seven food categories, while top-mounted removable refrigeration cartridges, R290 natural refrigerant, and GEMS-compliant energy certification combine to reduce both servicing downtime and ongoing operating costs.

Key Benefits

• Dual-temperature configuration provides a combined 1,034 litres of upright storage, addressing both chilling and freezing requirements within a single footprint of just 1.15 m².
• SKOPE-connect Bluetooth app enables remote temperature monitoring and one-touch switching between dedicated pre-sets for seven food categories: general food safety compliance, poultry, red meat, fresh seafood, live seafood, dairy, and desserts.
• Top-mounted, removable refrigeration cartridges for both the fridge and freezer sections allow fast, straightforward servicing that minimises downtime across busy service periods.
• R290 natural refrigerant carries a virtually negligible global warming potential, supporting sustainability objectives without compromising refrigeration performance.
• GEMS Class 5M1 & 5L1 certification and a daily consumption of 9.36 kWh help keep annual energy expenditure low, estimated at approximately $1,026 per year at standard rates.
• Self-closing, lockable solid swing doors and door-activated LED interior lighting work together to uphold food safety standards and maintain energy efficiency throughout each service.
• 304 AISI stainless steel interior and exterior construction provides corrosion resistance, ease of cleaning, and durability suited to the physical rigours of commercial back-of-house environments.
• Supplied with removable castors for straightforward repositioning and a 2 m, 10 A plug and lead for immediate connection to a standard single-phase outlet.
• Recipient of the FCSI (Foodservice Consultants Society International) award, affirming its standing as a leading commercial refrigeration solution.

Key Features

• Two independent compartments: one fridge and one freezer, each with 517 litre gross capacity (1,034 litres total).
• Fridge operates at a standard set point of 1°C to 4°C; the full adjustable range via SKOPE-connect extends from -2°C to 15°C.
• Freezer operates at a standard set point of -21°C to -18°C; the full adjustable range via SKOPE-connect extends from -26°C to -12°C.
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology.
• Enhanced SKOPE-connect product-type pre-sets covering seven categories: general food safety compliance, poultry, red meat, fresh seafood, live seafood, dairy, and desserts.
• Top-mounted, integral, removable fridge refrigeration cartridge (UTKCNI-0017) and freezer refrigeration cartridge (UTKDNI-0019).
• Self-contained refrigeration system requiring no remote condensing unit.
• R290 natural refrigerant: fridge charge 70 g, freezer charge 94 g.
• GEMS Class 5M1 & 5L1 compliant; energy consumption 9.36 kWh/24 h.
• Climate Class 4 (Tropical); maximum ambient operating temperature 40°C.
• Automatic defrost with fan-assisted cooling in both compartments.
• 2 x 1,200 mm, 12 W door-activated LED interior lights.
• 10 adjustable plastic-coated wire shelves in total, 5 per door section, GN 2/1 compatible.
• 304 AISI stainless steel interior and exterior body.
• Self-closing, lockable solid swing doors.
• Supplied with removable castors; overall height 2,035 mm including 120 mm castors.
• Total floor area: 1.15 m².
• Power supply: 220-240 V single phase; supplied with 2 m, 10 A plug and lead.

Specifications

• Width (mm): 1400
• Depth (mm): 820
• Height (mm): 2035
• Weight (kg): 227
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 227
• Packed Width (mm): 800.0
• Packed Height (mm): 2000
• Packed Depth (mm): 1400.0
• Capacity (Litres): 517
• Power (kW): 1.44
• Amps (A): 6
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: Fridge: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C), Freezer: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: Fridge: R290 / 70g (natural refrigerant), Freezer: R290 / 94g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, solid swing doors
• Shelf Configuration: 5 adjustable plastic coated wire shelves per door
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 2
• No. of Shelves: 5
• GEMS Class: 5M1 & 5L1
• GEMS Energy Consumption: 9.36
• GEMS Annual Running Cost: $1,026 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 2 x 1200mm, 12W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
