Overview

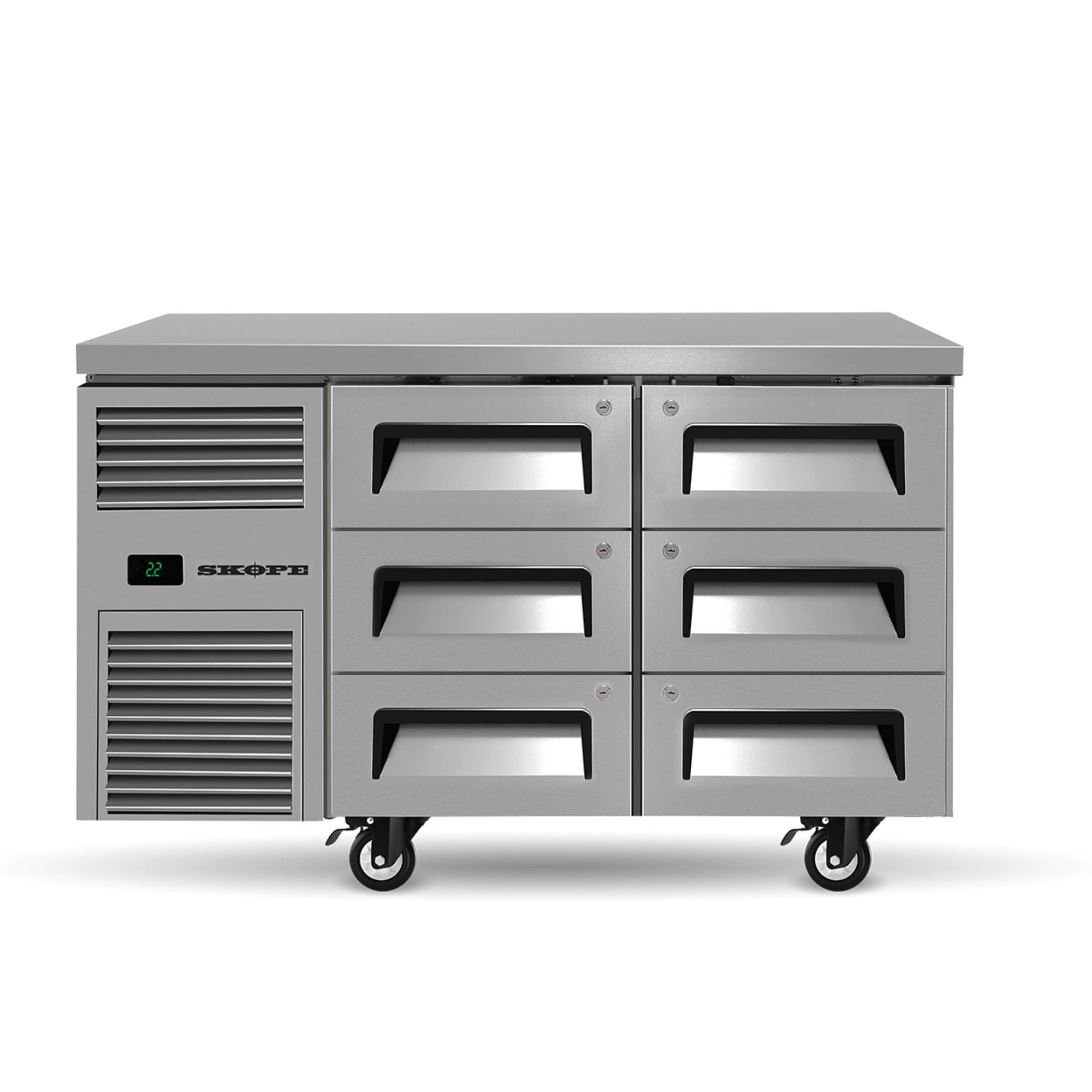

Skope RF7.UBR.2.D6 ReFlex 6 Drawer Underbench GN 1/1 Fridge

The Skope RF7.UBR.2.D6 ReFlex is a heavy-duty underbench refrigerator built around six fully extendable, individually lockable drawers fabricated from food-grade 304 AISI stainless steel, each sized to hold full gastronorm pans with a depth of up to 100mm. Its full stainless steel interior and exterior construction, self-contained refrigeration system, and tropical-rated climate classification make it a dependable choice for a broad range of commercial operations including restaurants, cafes, pubs, clubs, aged care facilities, schools, accommodation venues, and quick service environments.

Cooling is delivered via the natural refrigerant R290, while the SCS Connect controller with Bluetooth wireless connectivity pairs with the SKOPE-connect app for precise, flexible temperature management across a wide range of product categories. A side-mounted, removable refrigeration cartridge simplifies servicing, and the unit ships with a stainless steel benchtop, removable castors, and a 2-metre 10-amp plug and lead as standard, rounding out a product engineered for both operational efficiency and long-term value.

Key Benefits

• Six individually lockable drawers enable secure, organised ingredient storage and allow different team members to access separate sections without compromising food safety.
• Full GN 1/1 compatibility, accommodating gastronorm pans measuring up to 100mm in depth, streamlines prep-to-service workflows by allowing pans to move directly from storage to the cooking line.
• The SKOPE-connect Bluetooth app unlocks enhanced temperature presets covering categories such as general food safety, fresh and live seafood, chocolate, beverages, dairy, and desserts, removing guesswork from temperature management.
• The side-mounted, integral removable refrigeration cartridge (model ULKCNI-0040) allows quick access for maintenance and reduces downtime in a busy kitchen environment.
• R290 natural refrigerant carries virtually no global warming impact, helping operators reduce their carbon footprint without sacrificing cooling performance.
• A low 2.0-amp current draw on a standard 10-amp single-phase supply means the unit can be positioned almost anywhere on the kitchen floor without dedicated power infrastructure.
• GEMS Class 4M1 certification and an estimated annual running cost of approximately $260 at $0.30/kWh keep ongoing energy expenses transparent and manageable.
• Climate Class 4 (Tropical) rating ensures reliable performance in ambient temperatures up to 40°C, covering even the most demanding commercial kitchen conditions.
• Supplied castors as standard allow the unit to be repositioned easily, while leg options provide additional flexibility to suit different underbench configurations.

Key Features

• Six fully extendable, individually lockable drawers constructed from food-grade 304 AISI stainless steel
• Each drawer accommodates full gastronorm pans with a maximum depth of 100mm (GN 1/1 format)
• Full 304 AISI stainless steel interior and exterior body construction
• Stainless steel benchtop included as standard
• Self-contained, side-mounted integral refrigeration cartridge (model ULKCNI-0040) that is removable for ease of servicing
• Refrigerant: R290 natural refrigerant (virtually zero environmental impact)
• Fan-assisted cooling for even temperature distribution throughout the cabinet
• Temperature range: 1°C to 4°C standard; adjustable from -2°C to 15°C via SKOPE-connect
• Automatic defrost cycle
• SCS Connect controller compatible with the SKOPE-connect app
• Bluetooth wireless connectivity for remote monitoring and temperature management
• SKOPE-connect enhanced presets spanning general food safety, fresh seafood, live seafood, chocolate, drinks, dairy, and desserts
• GEMS Class 4M1 certified; GEMS energy consumption 2.37 kWh/24h
• Climate Class 4 (Tropical); maximum ambient operating temperature 40°C
• Power supply: 220-240 V AC, 50 Hz, single phase
• Power consumption: 0.48 kW; current draw: 2.0 A (unit 1.5 A)
• Supplied with a 2-metre, 10-amp plug and lead
• Gross capacity: 248 litres
• Dimensions: 1290mm W x 700mm D x 850-855mm H
• Total floor area: 0.9 m²
• Weight: 142 kg
• Supplied with removable castors as standard; legs available as an option

Specifications

• Width (mm): 1290
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 142
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 116
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1300.0
• Capacity (Litres): 248
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• Door Type: Solid
• No. of Shelves: 2
• No. of Doors: 1
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 80g (natural refrigerant)
• Refrigeration Type: Drawer Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 4M1
• GEMS Energy Consumption: 2.37
• GEMS Annual Running Cost: $260 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• Interior Lighting: LED
