Overview

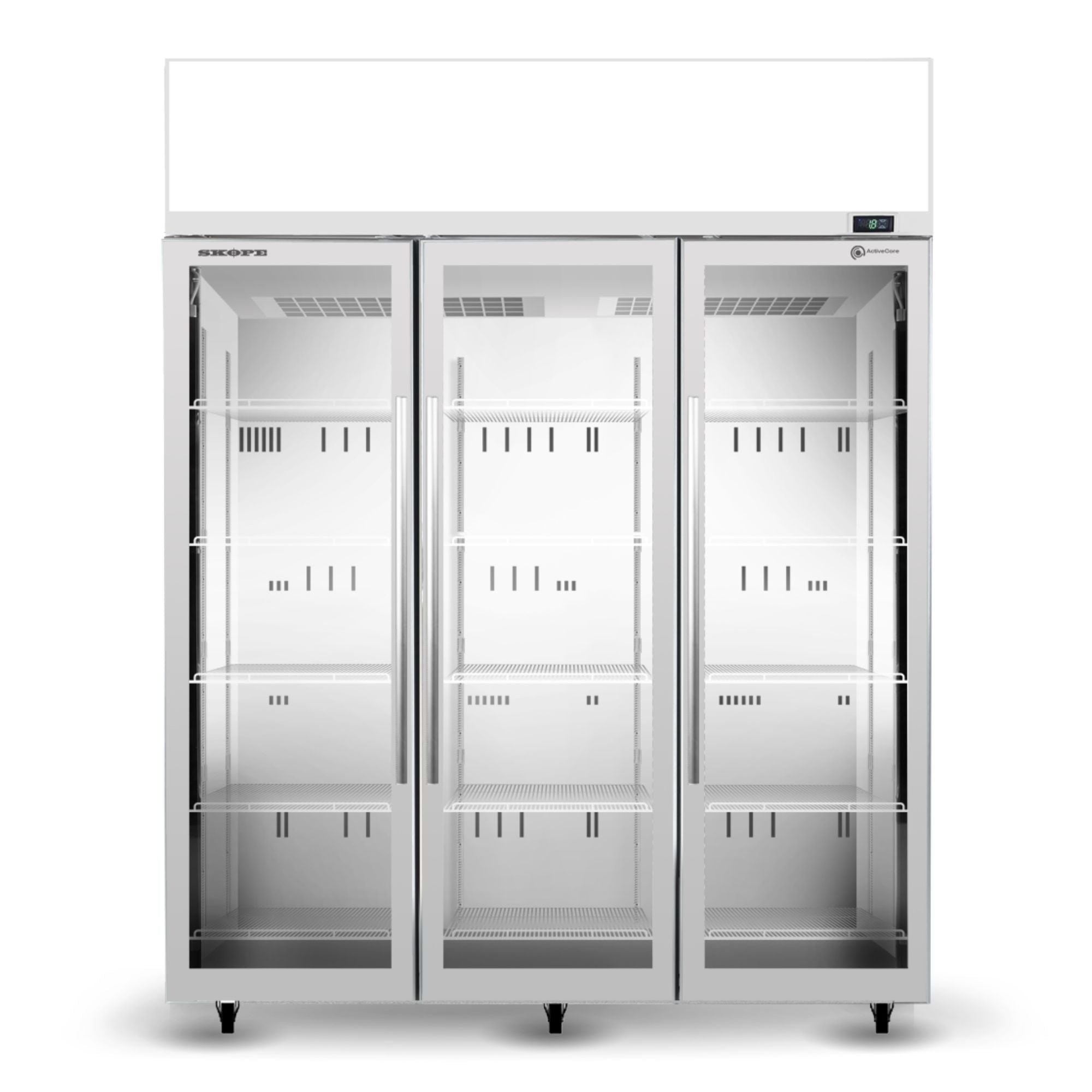

Skope TME1500N-AC 3 Glass Door Display or Storage Fridge with Lit Sign

The Skope TME1500N-AC is a triple glass door commercial display and storage refrigerator built around Skope's ActiveCore 2 platform, combining robust construction with intelligent app-based control. With 1399 litres of usable capacity across three full-height glass doors and five shelves per door, it delivers outstanding product visibility and organisational flexibility for high-volume hospitality and retail environments.

Powered by a top-mounted, integral and removable ActiveCore refrigeration unit running on R290 natural refrigerant, the TME1500N-AC is engineered for energy efficiency, achieving a GEMS Class 3M1 rating. The cabinet features a top-mounted illuminated lightbox for custom branded graphics, bright LED interior lighting, and SCS Connect controller with Bluetooth wireless technology for remote monitoring and adjustment via the SKOPE-connect app.

Key Benefits

• Three full-height glass doors provide maximum product visibility from the sales floor, helping to drive customer purchases without the need to open the cabinet.
• SKOPE-connect Bluetooth app compatibility allows operators to monitor and adjust temperature remotely, reducing the need for manual checks and enabling fast response to any temperature deviations.
• R290 natural refrigerant (99g charge) delivers a low global warming potential footprint, supporting sustainability goals while maintaining reliable tropical-rated performance up to 40°C ambient.
• The top-mounted illuminated lightbox accepts custom graphics, giving businesses a prominent branding opportunity directly above the display at no additional fixture cost.
• Five shelves per door provide 15 shelf positions across the cabinet, offering highly flexible product arrangement to suit bottles, cans, packaged foods and more.
• The top-mounted, integral ActiveCore refrigeration unit is fully removable, simplifying servicing and reducing downtime in busy commercial kitchens and retail spaces.
• A GEMS annual running cost of approximately $688 per year at $0.30/kWh reflects genuine operational economy across a full trading year.
• Automatic defrost and fan-assisted cooling ensure even temperature distribution throughout the cabinet, keeping all stock consistently chilled between 1°C and 4°C.
• Supplied with a 2.3m, 10 Amp plug and lead for straightforward single-phase installation with no specialised electrical work required.

Key Features

• Three full-height glass doors suitable for display or general chilled storage applications
• ActiveCore 2 top-mounted, integral and removable refrigeration unit (model UTHCNI-0010)
• 1399 litre usable capacity
• Five shelves per door (15 shelves total across the cabinet)
• Top-mounted illuminated lightbox with 1 x 1590mm, 18W LED sign light, designed to accept custom branded graphics
• Interior lighting: 3 x 1400mm, 15W LED strips providing bright, even product illumination
• SCS Connect controller, compatible with the SKOPE-connect app
• Bluetooth wireless technology for remote temperature monitoring and control
• Temperature range: 1°C to 4°C standard; adjustable 1°C to 15°C via SKOPE-connect
• R290 natural refrigerant, 99g charge
• Self-contained refrigeration system
• Automatic defrost
• Fan-assisted cooling for even temperature distribution
• Maximum ambient operating temperature: 40°C (Climate Class 4, Tropical)
• GEMS Class 3M1; energy consumption 6.28 kWh/24h
• Exterior and structural body in powder-coated galvanised steel
• 304 stainless steel finish
• Power supply: 220-240V AC, 50Hz, single-phase
• Power draw: 0.82 kW / 3.4 Amps
• Supplied with 2.3m, 10 Amp plug and lead
• Dimensions: 1705mm (W) x 745mm (D) x 2200mm (H)
• Weight: 320kg
• Total floor area: 1.27 m²
• Country of origin: China

Specifications

• Width (mm): 1705
• Depth (mm): 745
• Height (mm): 2200
• Weight (kg): 320
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 1399
• No. of Doors: 3
• Door Type: Glass
• Shelf Configuration: 5 (per door)
• Body Material: Powdercoat galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 4
• Power (kW): 0.82
• Amps (A): 3.4
• Power Cord: Supplied with 2.3m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 1°C to 15°C)
• Refrigerant: R290 / 99g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 3M1
• GEMS Energy Consumption: 6.28
• GEMS Annual Running Cost: $688 p.a. (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 3 x 1400mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatiable)
• Connectivity: Bluetooth® wireless technology
