Overview

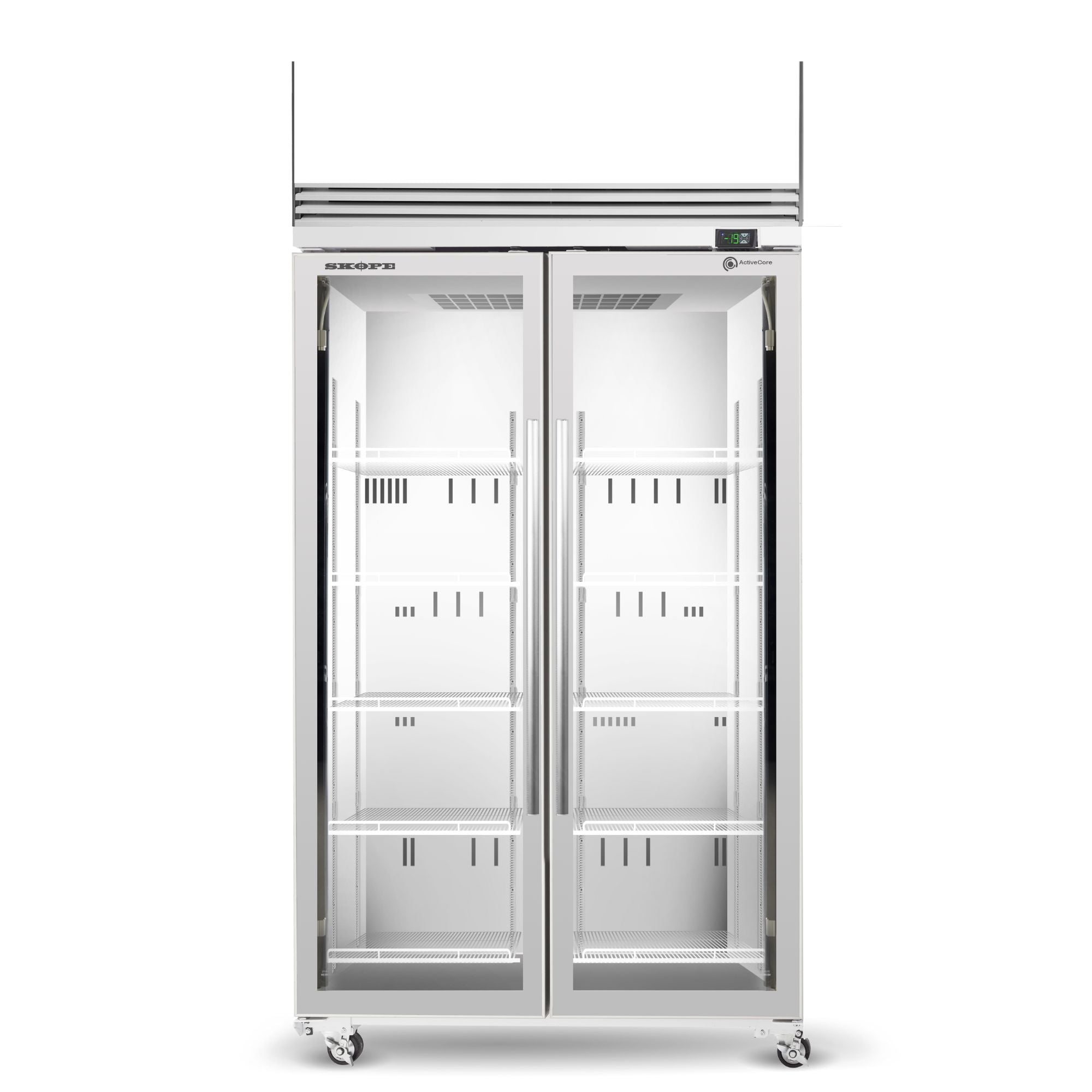

Skope TMF1000N-AC ActiveCore 2 Glass Door Upright Display or Storage Freezer with Lit Sign

The Skope TMF1000N-AC is a heavy-duty upright display freezer built on Skope's ActiveCore platform, featuring a top-mounted, integral and removable ActiveCore freezer cartridge that delivers quiet, efficient performance in demanding commercial environments. Two full-height glass doors maximise frozen product visibility while the illuminated sign panel and LED interior lighting create strong shelf appeal, making it equally suited to retail display or back-of-house storage applications.

Powered by a digital inverter compressor, the TMF1000N-AC provides precise temperature management across a range of -21°C to -18°C standard, expandable to -26°C to -12°C via SKOPE-connect, and operates comfortably in ambient conditions up to 40°C (Climate Class 4 Tropical). Bluetooth-enabled SCS Connect control with SKOPE-connect compatibility gives operators remote monitoring, temperature adjustment, and access to Hush Mode for noise reduction, all backed by a 2-year full warranty on parts and labour.

Key Benefits

• Full-height glass doors keep frozen products clearly visible to customers, driving impulse purchases without compromising temperature integrity.
• Digital inverter compressor adjusts output to match demand, reducing energy consumption and wear compared to fixed-speed compressors.
• SKOPE-connect Bluetooth control allows remote temperature adjustment, monitoring and Hush Mode activation directly from a mobile device.
• Hush Mode lowers operational noise from 62.9 dB to 61.7 dB, reducing disruption in quieter retail or front-of-house settings.
• Top-mounted, integral and removable ActiveCore cartridge simplifies servicing and minimises downtime in busy commercial kitchens.
• Active condensation control reduces moisture build-up, contributing to consistent performance and a cleaner cabinet interior.
• R290 natural refrigerant with a low global warming potential supports sustainability commitments and compliance with modern refrigerant regulations.
• Four lockable front swivel castors allow easy repositioning and secure placement on the floor once in the desired location.
• Lit sign panel enhances brand or product promotion at point of sale, adding marketing value beyond basic refrigeration functionality.

Key Features

• ActiveCore technology platform with top-mounted, integral and removable freezer cartridge for straightforward servicing.
• Digital inverter compressor for precise temperature control and improved energy efficiency.
• Active condensation control to minimise moisture accumulation inside the cabinet.
• Two full-height glass doors for maximum product visibility and display impact.
• Illuminated sign panel for point-of-sale branding or product promotion.
• 2 x 1400mm, 15W LED interior lighting strips for bright, even product illumination.
• 5 adjustable wire shelves per door (10 shelves total) for flexible product arrangement.
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology.
• Temperature range of -21°C to -18°C standard, adjustable to -26°C to -12°C with SKOPE-connect.
• Hush Mode via SKOPE-connect reduces noise output to 61.7 dB from standard 62.9 dB.
• Maximum ambient operating temperature of 40°C, Climate Class 4 (Tropical) rated.
• R290 natural refrigerant, 107g charge, with low environmental impact.
• Automatic defrost system for low-maintenance operation.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• Self-contained refrigeration system requiring no remote condenser installation.
• Powder-coated galvanised steel body construction with 304 stainless steel exterior finish.
• 896-litre gross capacity across the two-door configuration.
• Power supply: 220-240V AC, 50Hz, single-phase; supplied with a 2.3m 10A plug and lead.
• Power draw of 1.32 kW / 5.5A for cost-effective running.
• GEMS Class 3L1 energy rating.
• Four 100mm lockable front swivel castors for easy relocation and secure positioning.
• 2-year full warranty on parts and labour.

Specifications

• Width (mm): 1130
• Depth (mm): 745
• Height (mm): 2210
• Weight (kg): 120
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 896
• No. of Doors: 2
• Door Type: Glass
• Shelf Configuration: 5
• Body Material: Powder coated galvanised steel
• Material: 304 Stainless Steel
• No. of Shelves: 10
• Power (kW): 1.32
• Amps (A): 5.5
• Power Cord: Supplied with 2.3m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 107g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): 62.9​ (adjustable to 61.7 with SKOPE-connect Hush Mode)​
• Interior Lighting: 2 x 1400mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• GEMS Class: 3L1
• GEMS Energy Consumption: 16.35
• GEMS Annual Running Cost: $1,790 p.a. (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
