Overview

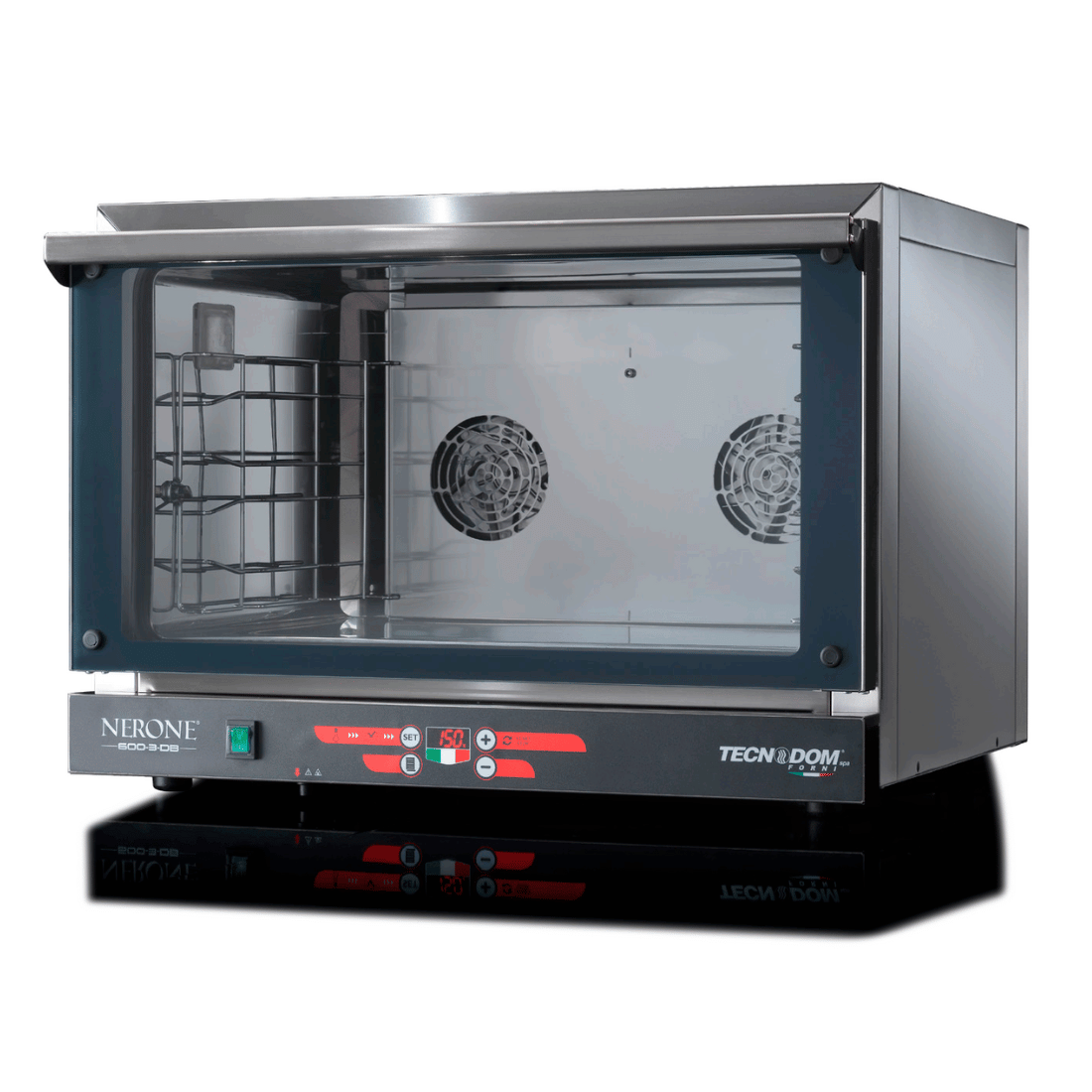

Tecnodom TDE-3BD Nerone EKO Digital 600x400 Tray Convection Oven

The Tecnodom TDE-3BD is part of the NERONE range, a line of convection ovens engineered to deliver consistent, high-quality cooking results in modern commercial kitchens. Accommodating three 600x400mm trays with a generous 105mm inter-tray spacing, it is well suited to bakeries, cafes, and restaurants that demand reliable batch cooking in a compact footprint. The oven is built to IPX3 standard, features a double fan for uniform heat distribution, and offers a temperature range of 50°C to 280°C.

Tecnodom has combined practical design with ease of use throughout the NERONE EKO Digital range. A protected digital control panel with double display and recipe memory for up to nine programmes gives operators precise, repeatable control over every cook. Rounded-corner stainless steel construction, an interlocking gasket fixing system, and non-slip feet all contribute to straightforward day-to-day cleaning and long-term durability in demanding kitchen environments.

Key Benefits

• Double fan-forced convection delivers fast, even heat distribution across all three tray levels, reducing hot spots and ensuring consistent results for baking, roasting, and reheating.
• Recipe memory for up to nine programmes allows kitchen staff to recall precise temperature and time settings instantly, improving consistency and reducing operator error during busy service periods.
• The fan automatically stops when the door is opened, improving operator safety and preventing heat loss during tray changes.
• A 60-minute timer with an infinite hold option gives chefs flexibility for both short-cycle baking and extended low-temperature cooking tasks.
• Internal halogen lighting allows monitoring of food progress through the tempered low-e glass door without interrupting the cooking cycle, saving energy and retaining oven temperature.
• IPX3-rated construction means the oven withstands the moisture and cleaning demands of a commercial kitchen, supporting a longer service life.
• Compact external dimensions of 775x720x560mm make the unit practical for benchtop or under-shelf installation where kitchen space is at a premium.
• The unit ships with one solid tray and two wire racks, so it is ready for immediate use across a variety of cooking applications without additional accessory purchases.

Key Features

• Accommodates 3 x 600x400mm trays with 105mm spacing between tray levels for the TDE-3BD model (84mm spacing on other models in the range)
• Stainless steel cooking chamber with rounded corners for easier cleaning and improved hygiene
• Internal cavity dimensions: 650mm wide x 459mm deep x 350mm high
• Double fan system ensures even airflow and uniform heat distribution throughout the chamber
• Temperature range of 50°C to 280°C for versatile cooking across baking, roasting, and reheating applications
• Reliable, well-protected digital control panel with double display, designed for ease of use in a busy kitchen
• Memory for up to 9 recipes, enabling repeatable results and simplified operation
• 60-minute countdown timer with an infinite timer option for continuous or extended cooking
• Fan/s automatically stop when the door is opened, enhancing operator safety
• Tempered low-e glass door panel retains heat, reduces energy loss, and allows visual monitoring of the cooking chamber
• Internal halogen lamp provides clear illumination of the chamber contents
• Interlocking gasket fixing system ensures a consistent door seal and simplifies gasket replacement
• High-resistance door hinge engineered for repeated heavy-use opening and closing
• Built to IPX3 standard for resistance to water spray, suitable for commercial kitchen cleaning environments
• Non-slip feet for stable benchtop placement
• Includes 1 solid tray and 2 wire racks
• Power supply: 240V, 3.15kW, 15A
• External dimensions: 775mm wide x 720mm deep x 560mm high; weight: 55kg
• 1 year parts and labour warranty

Specifications

• Width (mm): 775
• Depth (mm): 720
• Height (mm): 560
• Weight (kg): 55
• Packed Width (mm): 750
• Packed Depth (mm): 800
• Packed Height (mm): 730
• Shipping Weight: 40
• Power Delivery: 240V, 3.15kW / 15A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour Warranty
