Overview

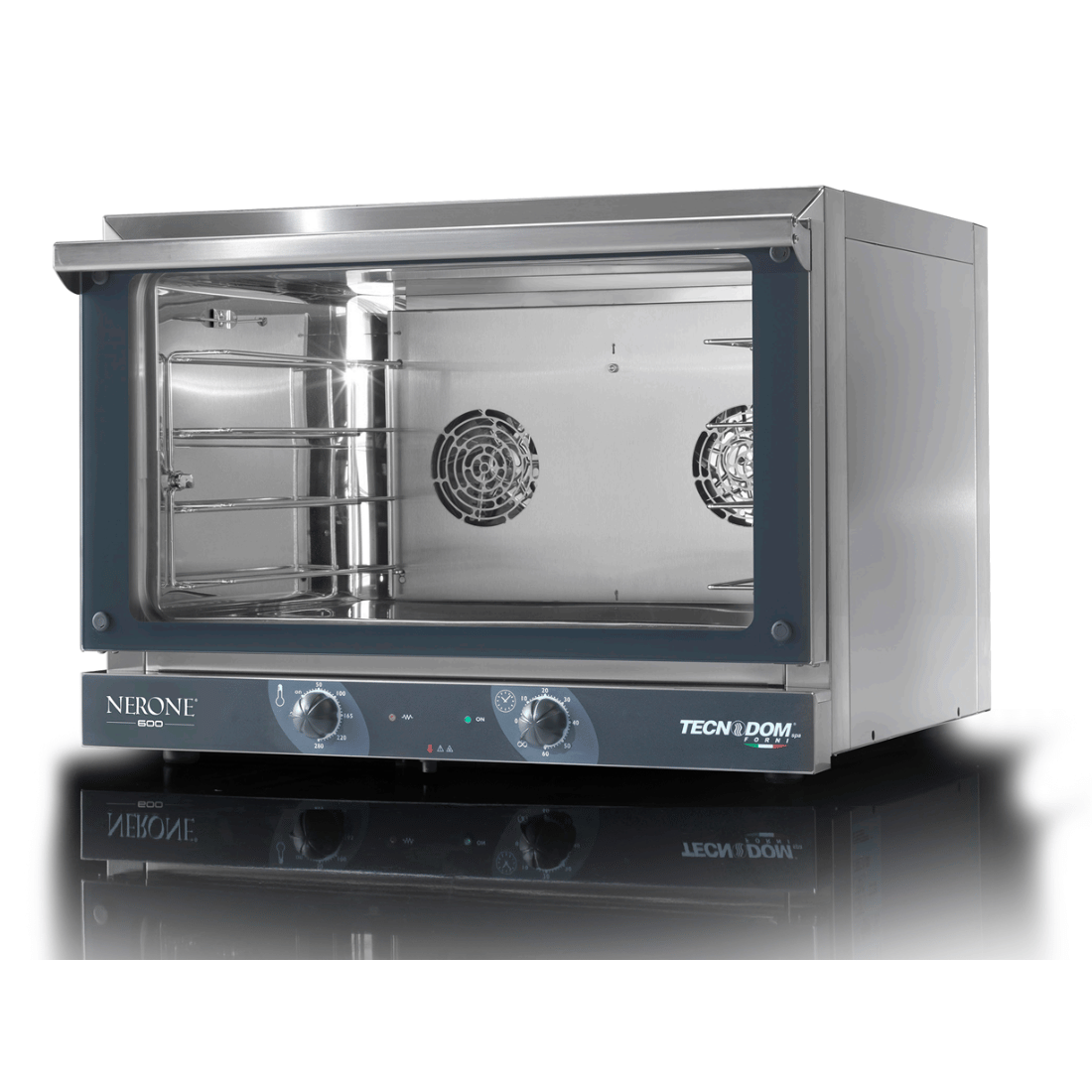

Tecnodom TDE-4B Nerone EKO 600x400 Tray Convection Oven

The Tecnodom Nerone EKO TDE-4B is a professional convection oven from the Italian-engineered Nerone range, designed to deliver consistent, high-performance results in modern commercial kitchens, bakeries and cafes. Built around a 600x400mm tray format with capacity for four trays spaced 80mm apart, it combines fan-forced heat distribution with a compact 775mm-wide footprint that suits standard commercial bench installations.

Tecnodom has applied its design and engineering expertise to the Nerone EKO range to produce ovens that prioritise cooking performance alongside simplicity in daily operation, cleaning and maintenance. The oven ships ready to use, complete with one solid tray and three wire racks, and is backed by a one-year parts and labour warranty.

Key Benefits

• Fan-forced convection delivers uniform heat across all four tray positions for consistent baking, roasting and reheating results every cycle.
• Wide temperature range of 50°C to 280°C gives operators flexibility across a broad variety of menu items, from gentle warming to high-temperature roasting.
• The Overture folding door opens fully to provide large, unobstructed access to the cooking chamber, making loading and unloading heavy trays safer and more efficient.
• Double-glazed tempered low-e glass on the door retains heat inside the cavity, reducing energy loss and improving operator safety during service.
• IPX3-rated splash protection means the oven can be cleaned down with water confidently, supporting fast turnaround between services.
• A 60-minute timer with an infinite hold setting suits both timed baking programs and extended holding applications without constant monitoring.
• The stainless steel cooking chamber with rounded interior corners eliminates hard-to-clean crevices, cutting cleaning time and supporting food safety compliance.
• Manual analogue controls provide straightforward, reliable operation that requires minimal training for kitchen staff.

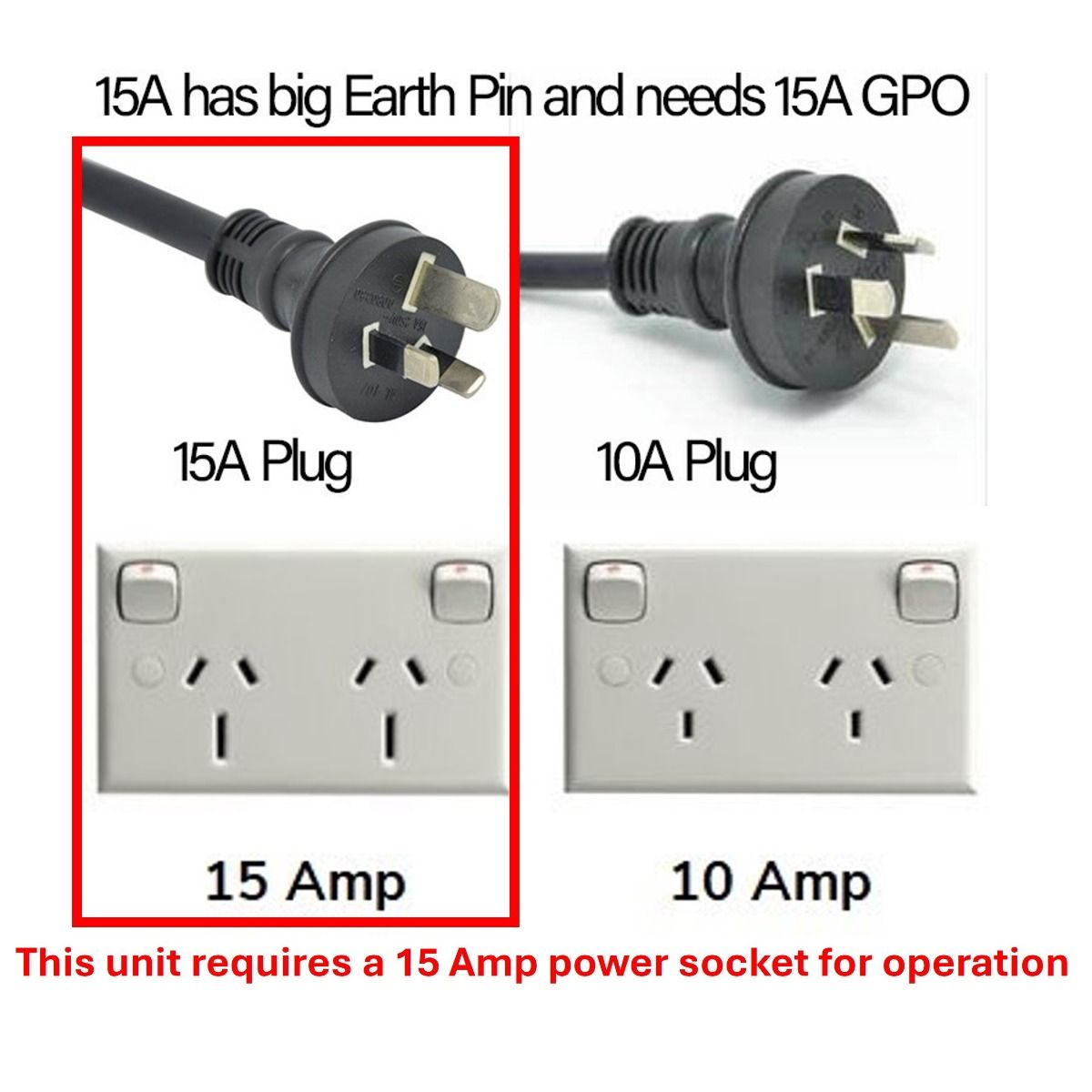

• Compact overall dimensions and a 3.15kW, 15A single-phase connection make installation accessible without specialist electrical work.

Key Features

• Accommodates four 600x400mm bakery trays simultaneously, with 80mm spacing between each tray position.
• Internal cooking chamber dimensions of 650x459x350mm.
• Stainless steel cooking chamber construction with rounded corners for hygienic, easy cleaning.
• 304-grade stainless steel body for durability and resistance to corrosion in commercial kitchen environments.
• Tempered low-e double-glazed door glass for heat retention, energy efficiency and clear visibility into the chamber.
• Overture folding door design provides a large opening for easy tray access.
• Interlocking gasket fixing system ensures a reliable door seal.
• High-resistance hinges for long-term durability under repeated daily use.
• Temperature range from +50°C to +280°C with manual analogue control.
• 60-minute countdown timer with an infinite setting option.
• Internal oven light allows operators to monitor cooking progress without opening the door.
• IPX3-rated for protection against water spray, supporting wash-down cleaning.
• 3.15kW power output on a 240V, 15A single-phase connection.
• Overall machine dimensions of 775x720x560mm (W x D x H).
• Net weight of 40kg.
• Made in Italy as part of Tecnodom's Nerone range.
• Supplied with one solid tray and three wire racks.
• 1-year parts and labour warranty.

Specifications

• Width (mm): 775
• Depth (mm): 720
• Height (mm): 560
• Weight (kg): 55
• Packed Width (mm): 750
• Packed Depth (mm): 800
• Packed Height (mm): 730
• Power Delivery: 240V, 3,15 kW, 15A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour Warranty
