Overview

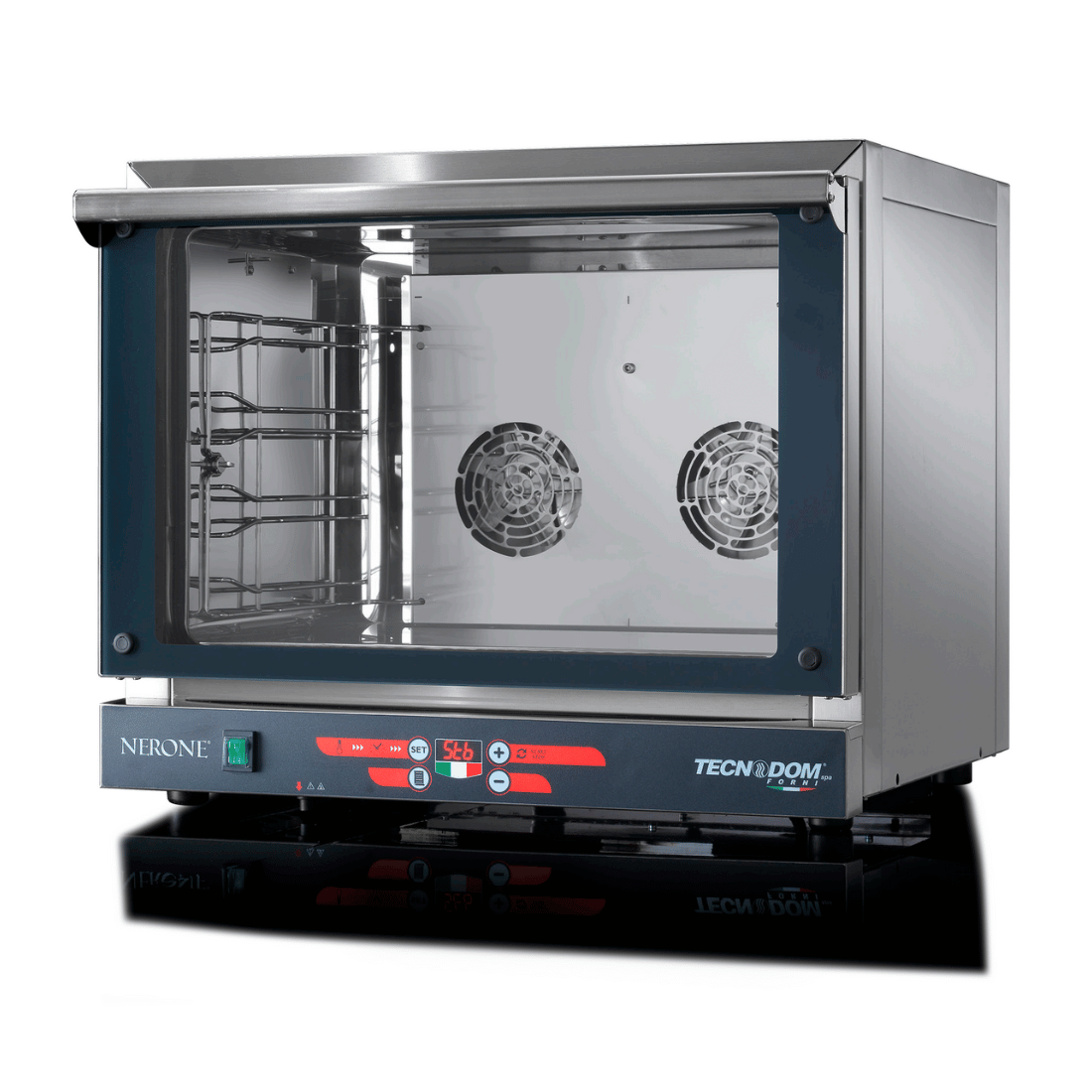

Tecnodom TDE-4CGND Nerone EKO Digital GN 1/1 Tray Convection Oven

The Tecnodom TDE-4CGND is part of the Nerone EKO range, a line engineered for optimal performance and operational efficiency in modern commercial catering environments. Designed to hold four GN 1/1 trays, this digital convection oven delivers consistent, fan-forced cooking results across a wide temperature range of +50°C to +280°C, making it equally suited to baking, roasting, reheating, and general cooking tasks in bakeries, cafes, restaurants, and catering operations.

Tecnodom has combined practical design with durable construction throughout the Nerone range, prioritising ease of cleaning, straightforward maintenance, and reliable day-to-day operation. The TDE-4CGND features a stainless steel cooking chamber with rounded corners, a protected digital control panel with double display, recipe memory for up to nine programmes, and a double fan system for even heat distribution, all within a compact footprint suited to busy commercial kitchens.

Key Benefits

• Double fan circulation ensures even heat distribution across all four tray positions, delivering consistent results with every batch.
• Wide temperature range from +50°C to +280°C makes this oven versatile across baking, roasting, reheating, and general cooking applications.
• Fans automatically stop when the door is opened, improving operator safety and energy efficiency during loading and unloading.
• Recipe memory for up to nine programmes speeds up service and helps kitchen teams maintain consistent cooking outcomes across shifts.
• Rounded interior corners and stainless steel construction simplify cleaning and reduce bacteria harbouring surfaces, supporting food safety compliance.
• IPX3-rated splash protection makes the oven suitable for the wet, demanding conditions typical of commercial kitchen environments.
• Tempered low-e glass in the door improves thermal insulation, reducing heat loss and helping keep the surrounding kitchen environment cooler.
• The interlocking gasket fixing system and high-resistance hinges contribute to a reliable door seal and long-term structural durability.
• Includes one solid tray and three wire racks out of the box, allowing immediate use across a variety of cooking tasks without additional outlay.

Key Features

• Capacity for 4 x GN 1/1 trays with 84 mm distance between tray positions
• Stainless steel cooking chamber with rounded corners for hygiene and easy cleaning
• Stainless steel exterior construction for durability in commercial use
• Double fan system for thorough, even heat circulation throughout the cavity
• Fan or fans automatically stop when the door is opened
• Tempered low-e glass door panel for thermal efficiency and operator safety
• Double-display digital control panel, well-protected and straightforward to operate
• Memory storage for up to 9 recipes
• 60-minute countdown timer with an infinite hold option
• Internal halogen lamp for clear visibility of food during cooking
• Interlocking gasket fixing system for a secure and consistent door seal
• High-resistance door hinge for long-term reliability under frequent use
• IPX3-rated splash protection in accordance with standard norms
• Non-slip feet for stable positioning on bench or floor surfaces
• External dimensions: 686 mm (W) x 680 mm (D) x 580 mm (H)
• Internal cavity dimensions: 560 mm (W) x 420 mm (D) x 370 mm (H)

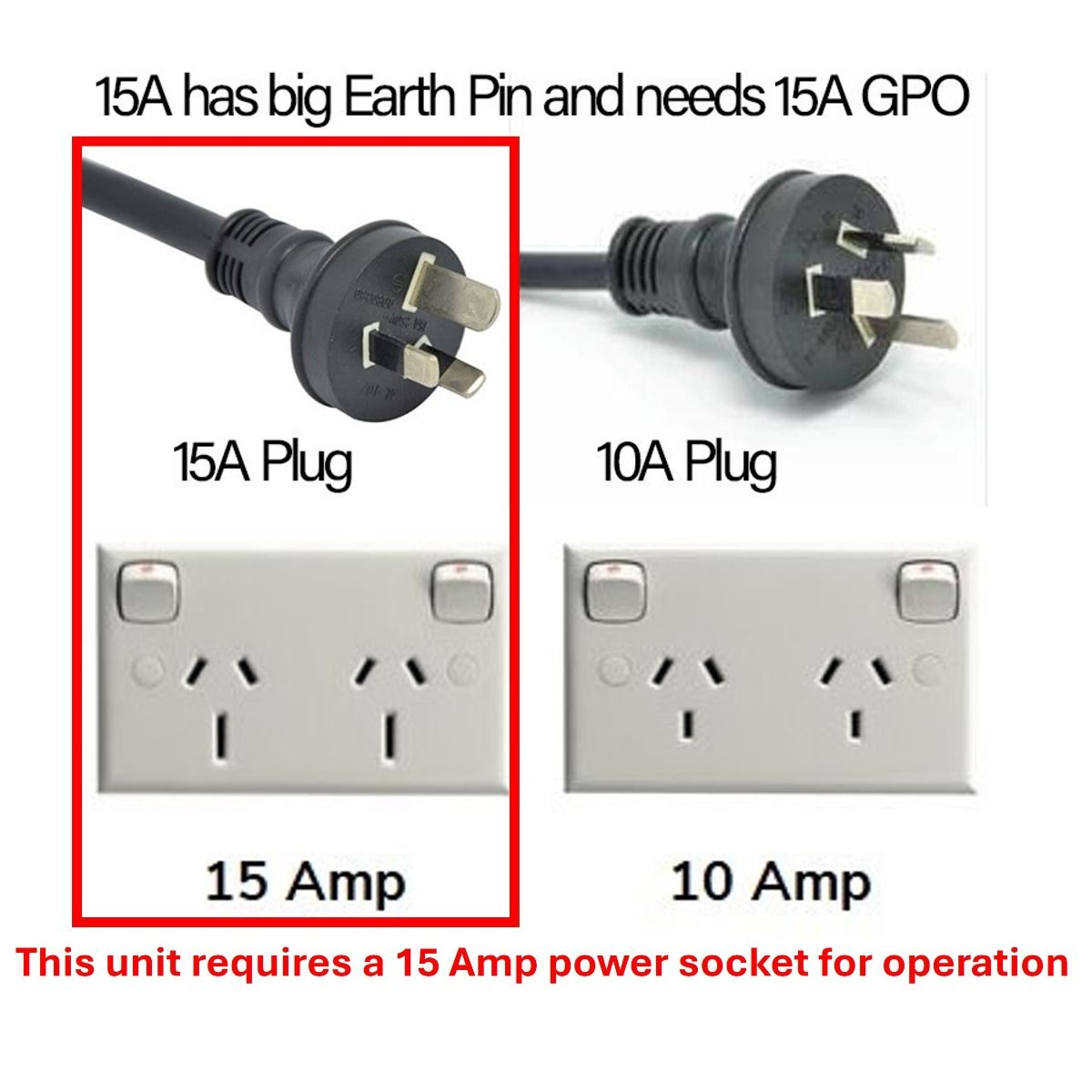

• Power supply: 240V, 3.15 kW / 15A
• Temperature range: +50°C to +280°C
• Includes 1 solid tray and 3 wire racks
• 1 Year Parts and Labour Warranty

Specifications

• Width (mm): 686
• Depth (mm): 663
• Height (mm): 580
• Weight (kg): 50
• Packed Width (mm): 720
• Packed Depth (mm): 725
• Packed Height (mm): 750
• Shipping Weight: 37
• Power Delivery: 240V, 3.15kW/15A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour Warranty
• Temperature Range: +50°C to +280°C
