Overview

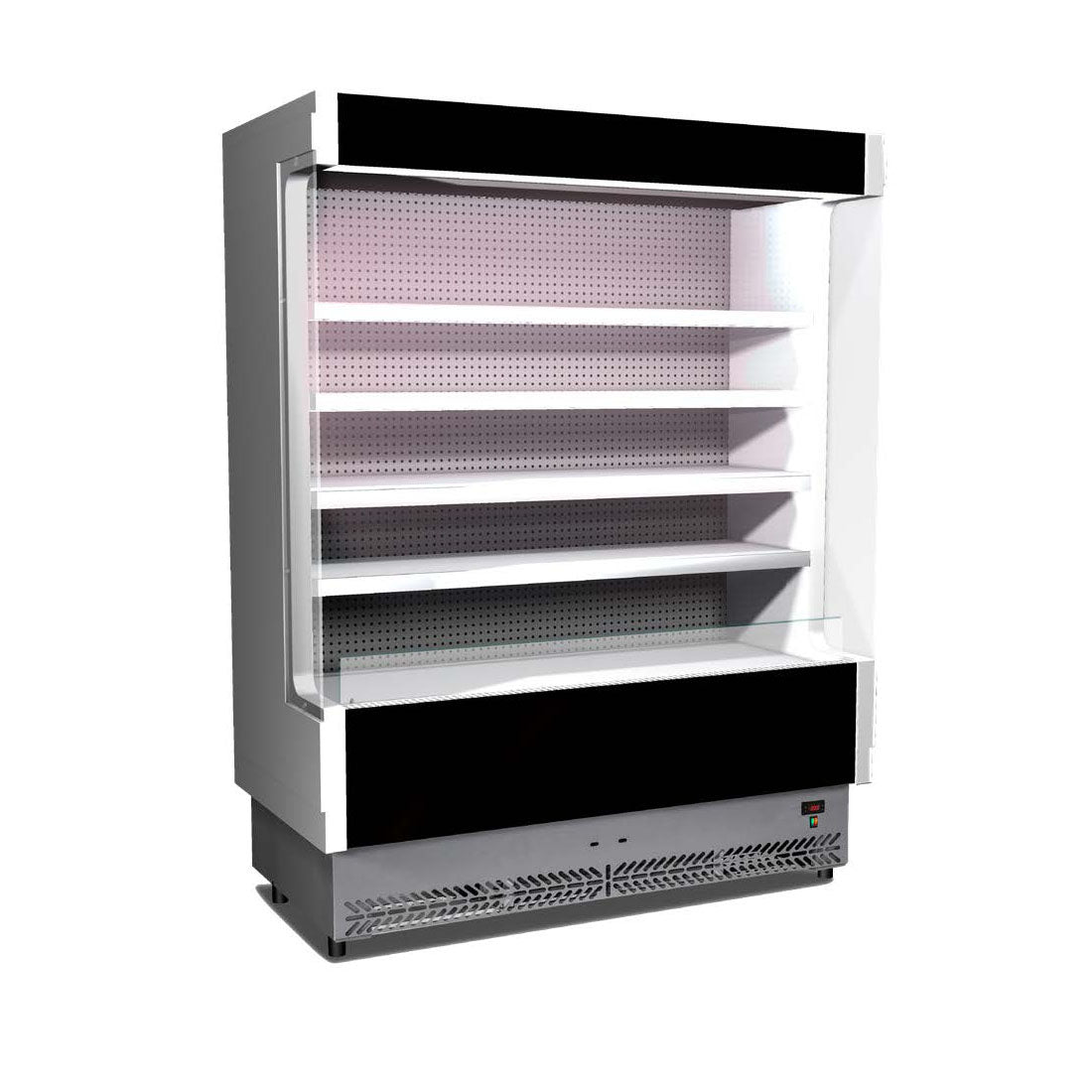

Tecnodom TDV80-CA-125 Open Chiller with 4 Shelves

The Tecnodom TDV80-CA-125 is an open-front display chiller designed for high-impact merchandising of chilled goods in retail, hospitality, and food service environments. Engineered and manufactured entirely in Italy, it delivers a generous 2.54 m² of display surface within a compact footprint, making it well suited to small, medium, and large distribution areas alike. The unit maintains a precise temperature range of 0–2°C, keeping perishables such as meat and dairy at optimal freshness throughout the trading day.

Climate Class 4 rated for operation in ambient conditions up to 30°C with 60% relative humidity, the TDV80-CA-125 is built for the real-world demands of a busy commercial setting. A ventilated cooling system, electronic control panel, and electric defrost cycle combine to ensure consistent performance with minimal manual intervention. The unit is CFC-free, 100% eco-friendly, and backed by a 2-year parts and labour warranty.

Key Benefits

• Open-front display maximises product visibility and encourages impulse purchases without the barrier of doors.
• Precise 0–2°C operating range protects the quality and safety of fresh meat, deli, and dairy products.
• Large 2.54 m² display surface provides ample merchandising space while the compact body conserves valuable floor area.
• Auto-rolling manual night blind reduces energy consumption and maintains product temperature outside trading hours.
• Upper internal pink neon lighting enhances the appearance of fresh meat and chilled produce to attract customer attention.
• Four height-adjustable shelves allow flexible product layouts to accommodate different pack sizes and ranging needs.
• Electronic control panel and electric defrosting simplify day-to-day operation and reduce staff workload.
• CFC-free construction and 100% eco-friendly credentials support sustainability commitments and regulatory compliance.
• Straightforward installation and fixed-leg mounting ensure a stable, ready-to-use setup in any commercial space.

Key Features

• Temperature range: 0–2°C
• Total display surface area: 2.54 m²
• Overall width including 40 mm thick side walls: 1330 mm
• Climate Class 4 rated: designed for ambient conditions of 30°C and 60% relative humidity
• Made in Italy: technology, design, and full production
• Ventilated cooling system for even, consistent temperature distribution across all shelves
• Electronic control panel for straightforward temperature and system management
• Electric defrosting system minimises manual maintenance requirements
• Upper internal pink neon lighting to enhance the visual appeal of chilled products
• Auto-rolling manual night blind for energy saving and overnight temperature retention
• 4 shelves constructed from non-toxic, white-painted steel sheet
• Shelves are easily adjustable in height; supplied without shelf lighting or shelf risers
• CFC-free refrigerant tank construction
• 100% eco-friendly unit
• Net weight: 210 kg
• Power supply: 240 V, 4070 W, supplied with two plugs (15 A + 10 A)
• Body material: Colorbond
• Mounting: fixed legs
• Easy installation
• 2-year parts and labour warranty

Specifications

• Width (mm): 1330
• Depth (mm): 765
• Height (mm): 2130
• Weight (kg): 190
• Packed Width (mm): 1440
• Packed Depth (mm): 880
• Packed Height (mm): 2210
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Power Delivery: 240V, 4070W, Comes with 2 plugs: 15 + 10 A
• Power (kW): 240
• Warranty (months): 2 Years Parts and Labour
