Overview

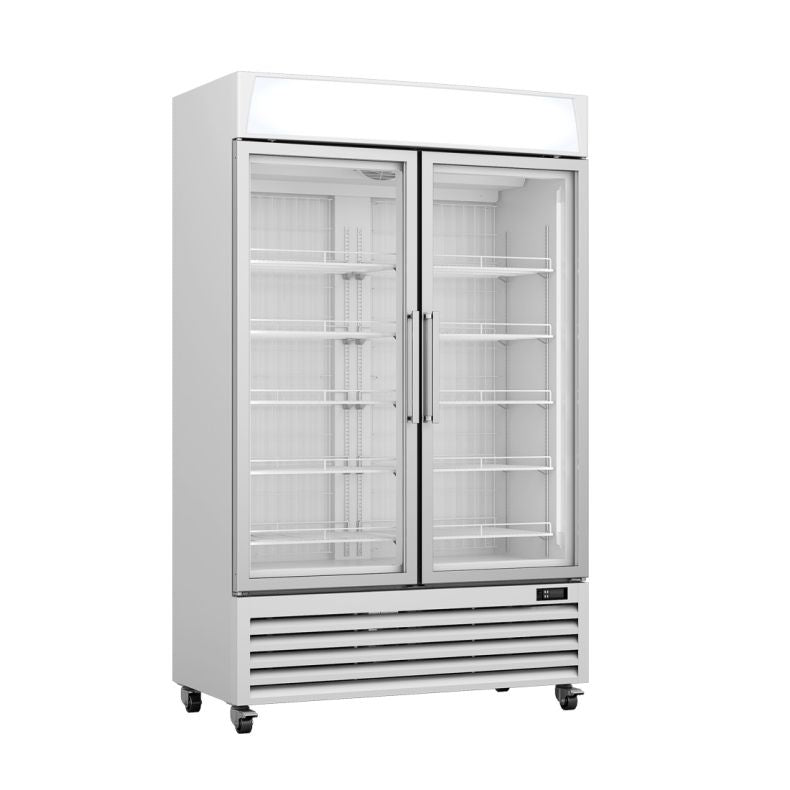

Thermaster LG-800PF Upright Double Glass Door Freezer 800L

The Thermaster LG-800PF is an 800-litre upright double glass door freezer built for high-volume commercial environments including restaurants, supermarkets, and food service businesses. Powered by environmentally friendly R290 natural refrigerant and a fan-forced cooling system, it maintains a consistent temperature range of -18°C to -22°C, keeping large quantities of frozen food, stock, and ingredients in optimal condition throughout a busy service.

Designed with both merchandising and practicality in mind, the LG-800PF features triple-glazed glass doors with heat film for energy efficiency and clear product visibility, an integrated light box, and LED lighting to showcase contents effectively. A digital temperature display, auto-defrost function, self-evaporating drainage, and rounded internal corners make day-to-day operation and cleaning straightforward, while heavy-duty castors with front-wheel brakes allow easy repositioning on the floor.

Key Benefits

• 800-litre gross capacity (648L net) accommodates large volumes of frozen goods, reducing the need for frequent restocking during service.
• Fan-forced evaporator cooling distributes cold air evenly throughout the cabinet, preserving food quality and maintaining consistent temperatures across all shelves.
• Triple-glazed doors with heat film minimise condensation and thermal transfer, lowering running costs while keeping contents clearly visible.
• Auto-defrost and self-evaporating drainage reduce manual maintenance, freeing up staff time during busy periods.
• LED lighting combined with a light box enhances product display and visibility, making the unit equally effective as a merchandising fixture.
• Self-closing, lockable doors improve cold air retention and provide added security for stored stock.
• R290 natural refrigerant is an environmentally responsible choice with a low global warming potential.
• Heavy-duty castors with front-wheel brakes make repositioning simple while keeping the unit stable during operation.
• Rounded internal corners allow thorough, quick cleaning to maintain hygiene standards in busy commercial kitchens.

Key Features

• R290 natural refrigerant for environmentally responsible operation
• Triple-glazed glass doors with heat film for energy efficiency and product visibility
• Slimmer glass door frame design maximises the visible display area
• Integrated light box with LED lighting for effective product showcasing and advertising
• Digital temperature display and controller for precise, easy temperature management
• Temperature range: -18°C to -22°C (ambient 25°C, 60% RH)
• Fan-forced cooling system for even temperature distribution throughout the cabinet
• Auto-defrost function to maintain optimal freezing with minimal manual intervention
• Self-evaporating drainage system reduces labour associated with defrost and cleaning
• 5 adjustable shelves per door section plus a floor shelf
• Self-closing doors to maintain cold air retention and reduce energy loss
• Lock and key security on doors
• Stainless steel door handles
• Rounded internal corners for fast, thorough cleaning
• HFC and CFC-free foam insulation
• Heavy-duty castors with front-wheel brakes for safe and convenient repositioning
• Canopy sticker space: 1180 x 193 mm
• Gross volume: 800L; Net volume: 648L
• Power supply: 240V / 1500W / 10A
• Dimensions: 1220 mm (W) x 693 mm (D) x 2008 mm (H)
• 2 Years Parts and Labour warranty plus an additional 2 Years Parts Only warranty when the product is registered within 14 days of invoice

Specifications

• Width (mm): 1220
• Depth (mm): 693
• Height (mm): 2008
• Weight (kg): 200
• Packed Width (mm): 730
• Packed Depth (mm): 1270
• Packed Height (mm): 2048
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Glass Type: Double Glass
• No. of Doors: 5712
• Defrost Type: Auto
• Cooling Type: Fan Forced
• Temperature Range: Refrigerated -18°C to -22°C (ambient 25°C, 60% RH)
• Energy Rating: 2
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Power Delivery: 240V ; 1500W / 10A
• Power (kW): 240
• Capacity (Litres): 800
