Overview

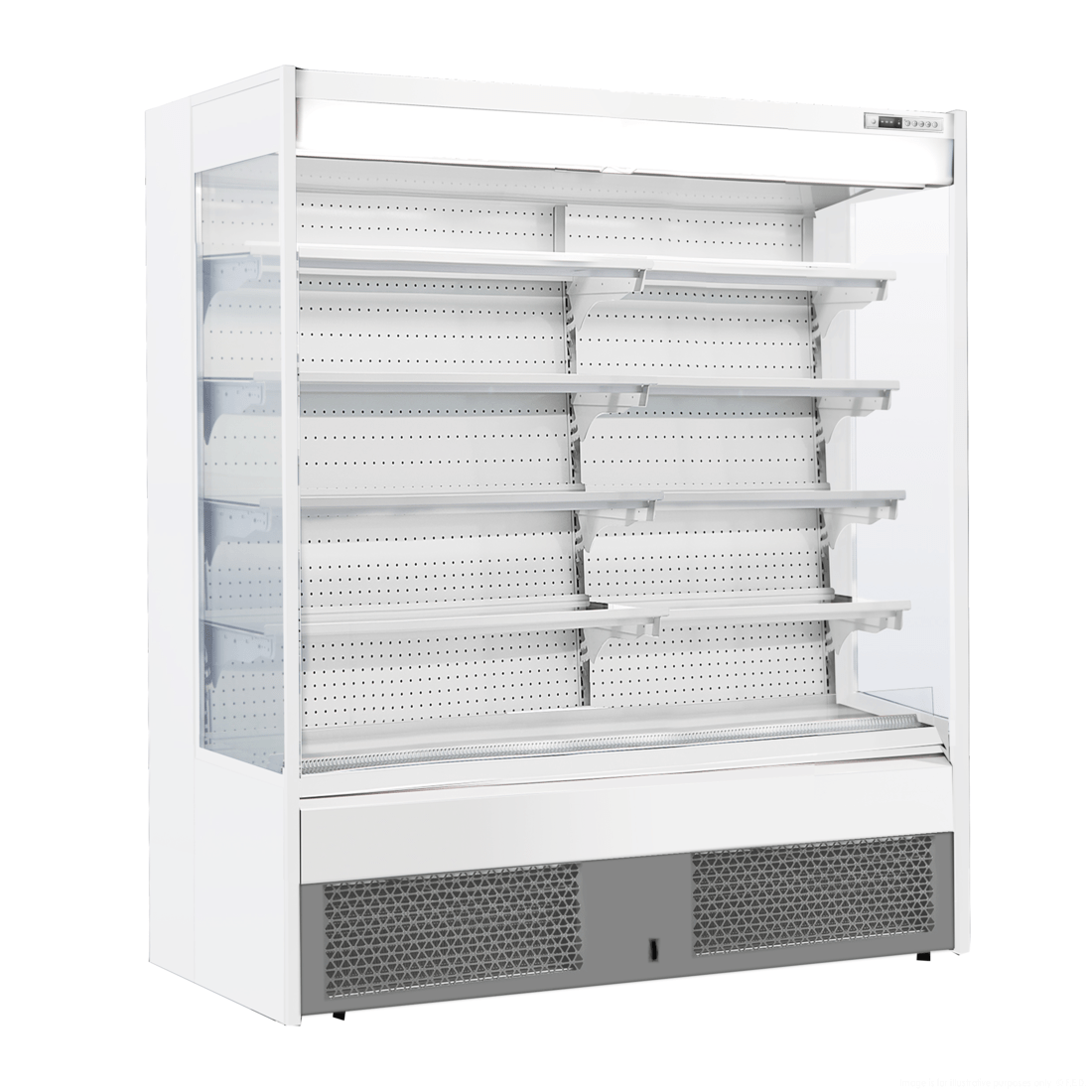

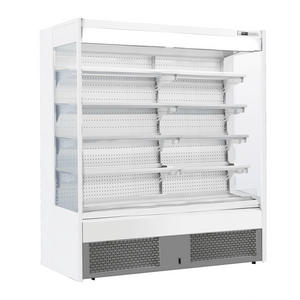

Thermaster OC-1830 Supermarket Open Beverage Display

The Thermaster OC-1830 Supermarket Open Beverage Display is a full-height, open-front refrigerated merchandiser designed to maximise impulse purchases in supermarkets, convenience stores, cafés and medium-to-large food service venues. With an 810-litre net capacity, fan-forced cooling and a temperature range of +1°C to +7°C, it keeps beverages consistently chilled and visually inviting across a generous 3.11 m² display area.

Built with a smaller base footprint to preserve valuable floor space, the OC-1830 uses an R290 natural refrigerant and a Secop compressor for efficient, low-impact operation. Double-layer night blinds reduce energy consumption during closed hours, while the multiplexable design allows multiple units to be assembled in a continuous line-up without a mullion, giving retailers a seamless, high-impact beverage wall.

Key Benefits

• Open-front design encourages impulse buying by putting chilled beverages within easy reach of customers.
• Illuminated top canopy doubles as an advertising panel, drawing shopper attention from across the floor.
• Fan-forced cooling delivers even temperature distribution across all shelves, keeping stock fresher for longer.
• Double-layer night blinds cut energy consumption significantly during off-peak or closed trading periods.
• Multiplexable construction lets you join units side by side without a mullion, creating a seamless, large-format beverage display.
• R290 natural refrigerant and a Secop compressor combine reliable performance with a lower environmental footprint.
• Adjustable glass shelves with selectable 0°, 7° and 14° angles let you optimise product presentation and visibility for different bottle and can formats.
• Compact base profile reduces the overall floor footprint, freeing space for other merchandise or traffic flow.
• Colorbond steel body provides durable, corrosion-resistant construction suited to the demands of busy retail and hospitality environments.

Key Features

• Net capacity: 810 litres
• Display area: 3.11 m²
• Temperature range: +1°C to +7°C
• Temperature class: M2
• Maximum ambient operating conditions: 25°C, 60% RH
• Fan-forced refrigeration system for even cooling throughout the cabinet
• Secop compressor for reliable, energy-efficient refrigeration
• R290 natural refrigerant
• Illuminated top canopy suitable for advertising and brand signage
• LED lighting on the top canopy for bright, consistent product illumination
• Two double-layer night blinds to reduce energy consumption when the store is closed
• Adjustable glass shelves with three angle settings: 0°, 7° and 14°
• Multiplexable design allows side-by-side installation without a mullion for a continuous display run
• Smaller base design reduces floor footprint without sacrificing display capacity
• Body constructed from Colorbond steel
• Fixed installation with leg supports
• Power supply: 240V, 1800W, 15A
• Dimensions (W x D x H): 1890 mm x 770 mm x 2067 mm
• Packed dimensions (W x D x H): 1963 mm x 770 mm x 2110 mm
• Weight: 807.75 kg
• Warranty: 2 years parts and labour plus 2 years parts only, for products registered within 14 days of invoice

Specifications

• Width (mm): 1890
• Depth (mm): 770
• Height (mm): 2067
• Weight (kg): 807.75
• Packed Width (mm): 1963
• Packed Depth (mm): 770
• Packed Height (mm): 2110
• Body Material: Colorbond
• Mobility: Fixed/Legs
• Cooling Type: Fan Forced
• Power Delivery: 240V; 1800W; 15A
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
