Overview

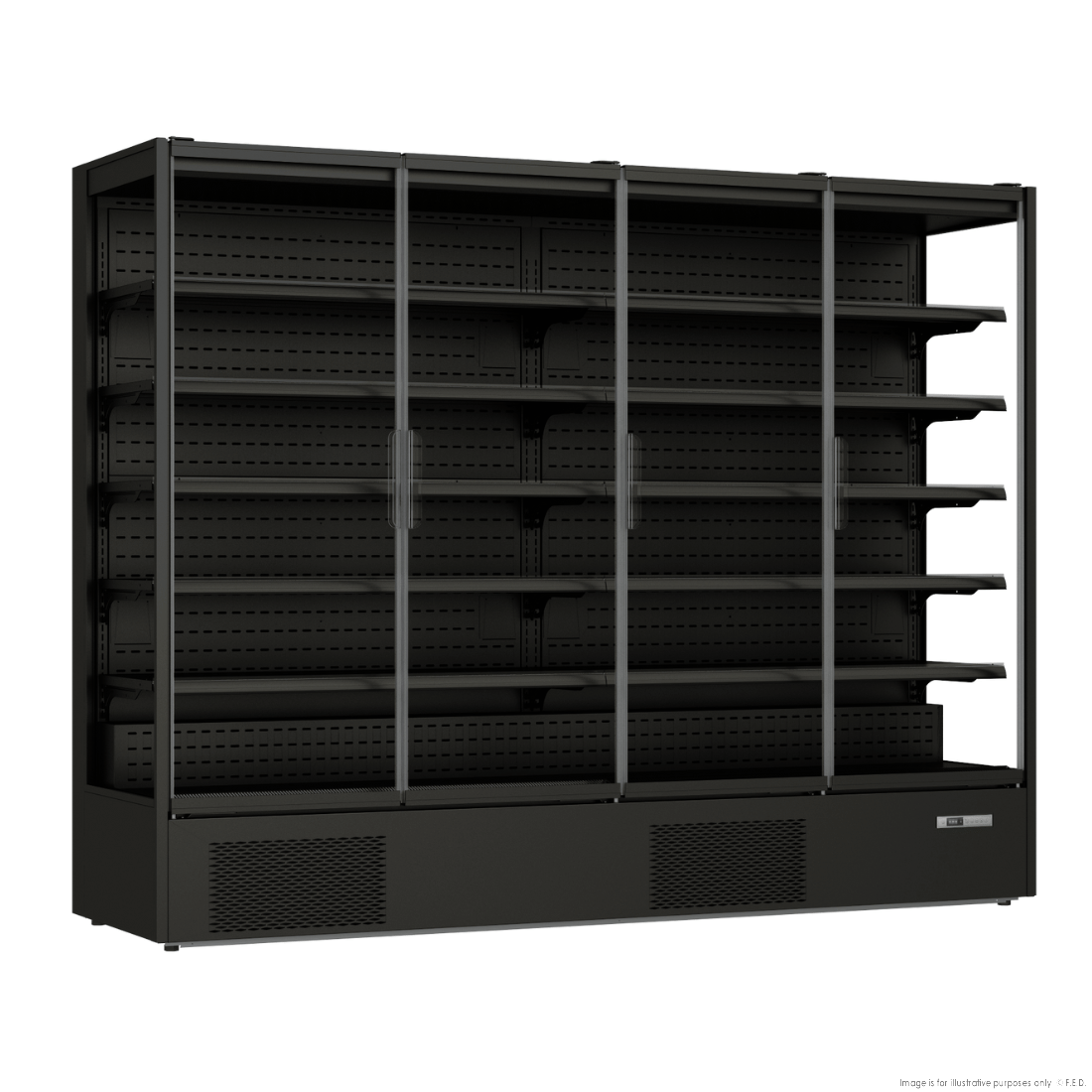

Thermaster DC-250B Supermarket Panorama 4 Door Chiller Display

The Thermaster DC-250B is a large-format, four-door chiller display engineered for supermarkets, delis, convenience stores and busy retail food environments. With a gross volume of 2585 litres and a net display capacity of 1529 litres, it delivers maximum product visibility through frameless Low-E glass doors and fully transparent end walls, so shoppers can browse from the front and both sides simultaneously. Operating across a temperature range of -1 to +5°C, the unit uses environmentally responsible R290 natural refrigerant and achieves an 8-star GEMS energy rating, making it one of the more efficient options in its class.

Practical design decisions run throughout the DC-250B. Five levels of 450 mm deep shelving can each be angled at 0°, 7° or 14° to suit different product types, while per-shelf LED lighting keeps merchandise bright and appealing. EC fans, a compact base footprint and a slide-out condensing unit simplify both daily operation and routine servicing. The unit ships on castors for straightforward positioning, and its multiplexable construction means multiple units can be joined together without mullions to create a seamless display wall. Pricing strips are included as standard, and a Colorbond outer body keeps the cabinet looking sharp in commercial settings.

Key Benefits

• 360-degree-style visibility from the front and both transparent end walls increases shopper engagement and impulse purchases.
• Eight-star GEMS energy rating combined with EC fans and Low-E anti-glare glass keeps running costs and environmental impact low.
• R290 natural refrigerant is an eco-friendly choice with a low global warming potential, supporting sustainability goals.
• Slide-out condensing unit allows technicians to access and service components quickly, reducing downtime.
• Multiplexable design lets multiple DC-250B units be lined up without mullions, enabling scalable display runs as the business grows.
• Adjustable shelf angles (0°, 7° or 14°) let staff optimise product presentation for everything from beverages to packaged food.
• Per-shelf LED lighting and anti-glare, frameless glass doors showcase product in bright, clean light without reflections.
• Castors provide easy repositioning during floor resets or cleaning, while the compact base minimises floor footprint.

Key Features

• Four hinged, self-closing doors with Low-E, anti-glare, frameless glass panels and 20 mm door thickness (each door 611 x 1653 mm)
• Fully transparent end walls maximise panoramic display area across front and both sides
• Gross volume 2585 L; net volume 1529 L
• Temperature range -1 to +5°C; designed for 25°C ambient at 60% RH
• R290 natural refrigerant
• 8-star GEMS energy efficiency rating
• Fan-forced cooling with EC (electronically commutated) fans for reduced energy consumption
• 1060 W / 10 A power supply
• Five-level display shelving, each shelf 450 mm deep with adjustable angles of 0°, 7° or 14°
• LED lighting fitted on each shelf level
• Digital temperature display for at-a-glance monitoring
• Slide-out condensing unit for accessible after-sales servicing and cleaning
• Multiplexable construction — units can be joined together without mullions
• Mounted on castors for easy mobility and repositioning
• Stainless steel inner bottom
• Colorbond outer body construction
• Pricing strips included as standard
• 2 Years Parts and Labour plus 2 Years Parts Only warranty when registered within 14 days of invoice

Specifications

• Width (mm): 2560
• Depth (mm): 740
• Height (mm): 2060
• Weight (kg): 500
• Packed Width (mm): 2600
• Packed Depth (mm): 767
• Packed Height (mm): 2240
• No. of Doors: 4
• Door Type: Hinged Doors
• Body Material: Colorbond
• Mobility: Castors/Wheels
• Cooling Type: Fan Forced
• Energy Rating: 8
• Warranty (months): 2 Years Parts & Labour Plus 2 Years Parts Only Warranty When Products Registered Within 14 Days Of Invoice
• Power Delivery: 1060W / 10A
• Power (kW): 550
• Capacity (Litres): 2585
