Overview

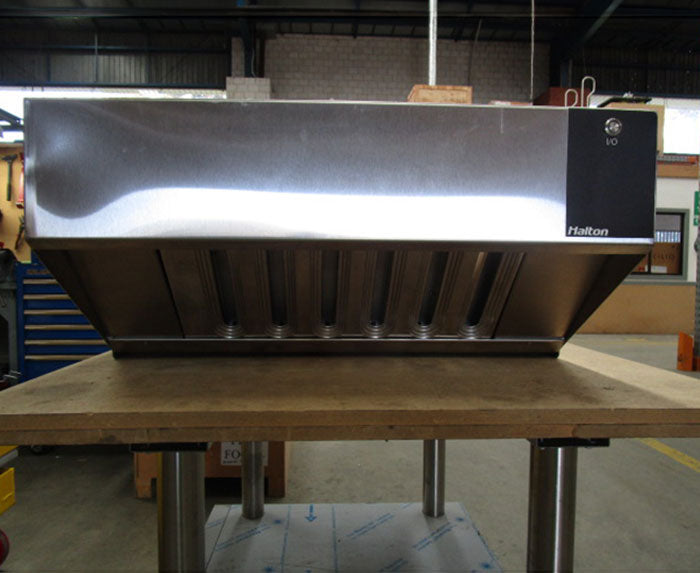

Turbofan VH32 Ventless Condensing Hood

The Turbofan VH32 is a ventless condensing hood engineered specifically for use with Turbofan E32D and E32T convection ovens, eliminating the need for fixed canopy or exhaust ductwork installation. Its self-contained design makes it an ideal solution for commercial kitchens, cafes and bakeries where overhead extraction infrastructure is unavailable or impractical.

The VH32 combines a condensing heat exchanger with a three-stage filtration system to capture grease, particles and odours before air is returned to the kitchen environment. An interlocked two-speed extraction fan operates automatically with the oven, and a built-in condensate collection pan removes the requirement for any connection to a waste drain, keeping installation simple and flexible.

Key Benefits

• Removes the need for fixed overhead canopy or ducted exhaust, opening up installation locations that would otherwise be unsuitable for convection oven placement.
• Oven-interlocked operation means the extraction fan activates and adjusts automatically, reducing manual oversight and ensuring consistent ventilation whenever the oven is running.
• Three-stage filtration captures grease, fine particles and cooking odours, returning cleaner air to the kitchen and supporting a more comfortable working environment.
• The condensing heat exchanger actively reduces heat emissions from the oven exhaust, helping to keep ambient kitchen temperatures lower.
• A self-contained condensate collection pan requires no plumbing connection to a waste drain, simplifying installation and reducing trade costs.
• Removable grease baffle and mesh particle filters make routine cleaning straightforward, supporting hygiene standards and extending filter service life.
• Single-phase electrical connection keeps electrical infrastructure requirements minimal and compatible with standard commercial kitchen supplies.
• Supplied with the VHIK32 installation kit for field assembly and connection directly to the E32D or E32T oven, providing a complete out-of-box solution.

Key Features

• Compatible with Turbofan E32D and E32T convection ovens.
• Ventless design eliminates the need for fixed canopy or ducted exhaust installation.
• Can also be configured as a canopy or ducted oven hood if required.
• Single-phase electrical connection (220-240V, 1 phase, 1.0A/10A plug, 1.8M cordset fitted, 50/60Hz).
• Oven-interlocked operation - hood activates in conjunction with the connected oven.
• Automatic two-speed extraction fan with low-speed default operation.

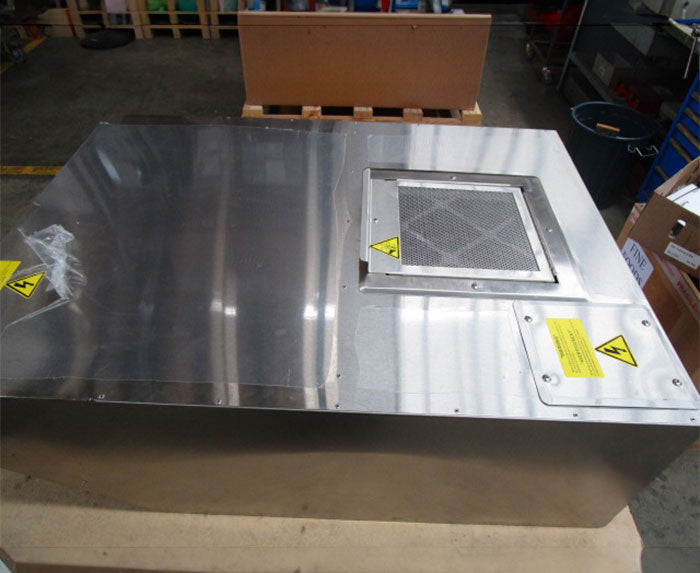

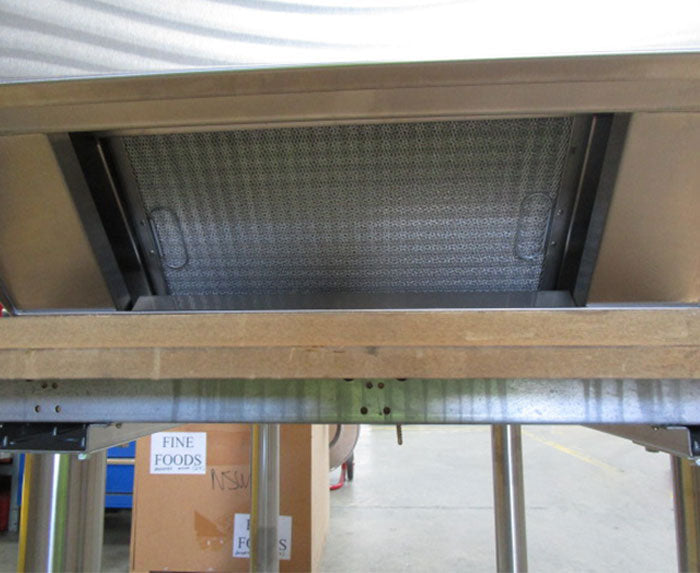

• Three-stage filtration system: grease baffle filter (removable), mesh particle filter (removable), and charcoal odour filter (replaceable).
• Condensing heat exchanger reduces heat emissions released into the kitchen.

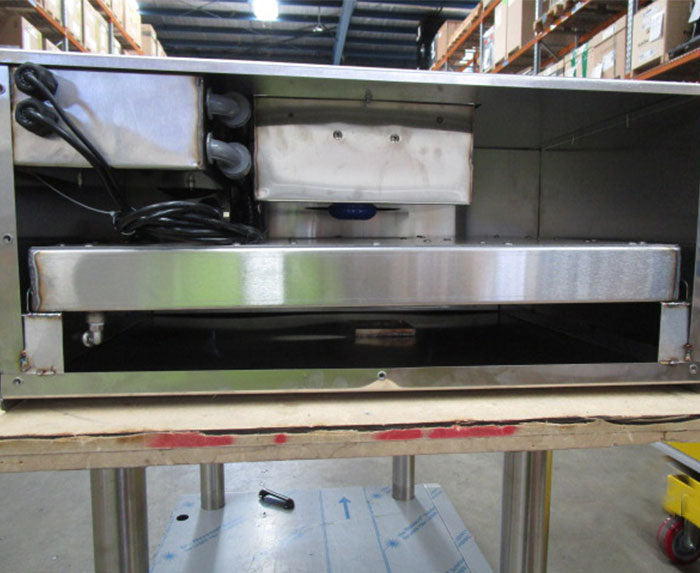

• Self-contained condensate collection pan - no waste drain connection required.
• VHIK32 installation kit included; requires mechanical and electrical field assembly and connection to the E32D/E32T oven.
• 304 stainless steel construction.
• Country of origin: New Zealand.
• Dimensions: W742mm x D1017mm x H368mm.
• Packed weight: 57kg.
• Volume: 0.49m³.

Specifications

• Width (mm): 742
• Depth (mm): 1015
• Height (mm): 340
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 220-240V|1 phase|1.0A|10A plug 1.8M cordset fitted|50/60Hz
• Power Supply: Single Phase 230-240V 10A
• Voltage (V): 230
