Overview

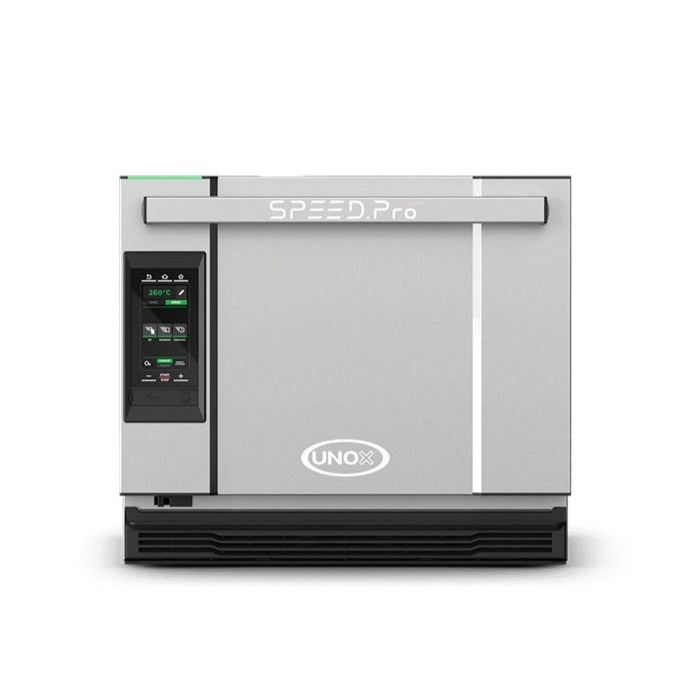

Unox XESR-03HS-EDDN SPEED.Pro™ Commercial Baking Speed Oven 3 Tray 460x330 Electric

The Unox XESR-03HS-EDDN SPEED.Pro™ is the world's first baking speed oven, combining a full convection oven and a speed oven into a single compact unit. In Bake mode, it accommodates up to 3 trays (460x330mm) of bakery and pastry products, including frozen items, delivering perfectly uniform results every time. In Speed mode, it combines controlled hot air, microwave technology and the dedicated Speed.Plate baking tray to cook, toast and regenerate food in record time.

Designed for high-volume professional kitchens where counter space is at a premium, the SPEED.Pro™ features a 6-inch touch control panel, integrated Wi-Fi, and Unox's intelligent cooking platform. With up to 768 stored programs (384 Bake and 384 Speed), 24 fast programs, and automated parameter management via CHEFUNOX and SPEEDUNOX libraries, operators can achieve consistent, repeatable results with minimal training. Three-phase electric power and a compact footprint make it a versatile addition to any commercial kitchen.

Key Benefits

• Two ovens in one unit: switch between full convection baking and microwave-assisted speed cooking without additional equipment, saving space and capital cost.
• Cooks, toasts and regenerates single or multiple portions in record time using the combination of hot air, microwave energy and the Speed.Plate contact-heat tray.
• ADAPTIVE.Cooking™ technology automatically adjusts cooking parameters to compensate for load variations, ensuring repeatable, consistent results across every batch.
• Up to 768 stored programs (384 Bake and 384 Speed) plus CHEFUNOX and SPEEDUNOX recipe libraries mean staff can achieve professional results with minimal intervention.
• SMART.Preheating automatically sets the correct preheat temperature and duration, reducing energy waste and getting the oven ready faster at the start of service.
• Integrated Wi-Fi and USB connectivity allow HACCP data and programs to be downloaded and uploaded remotely, simplifying compliance record-keeping and multi-site menu management.
• Multicoloured LED display gives an at-a-glance visual indication of baking status, helping busy kitchen staff monitor progress without opening the door.
• AIR.Plus dual-speed reversing fans and DRY.Plus humidity extraction work together to optimise crust formation, moisture control and evenness of bake.
• Compact external dimensions (600mm W x 797mm D x 541mm H) maximise usable kitchen space while delivering full commercial baking and speed cooking capacity.

Key Features

• Dual-mode operation: Bake mode for up to 3 x 460x330mm trays; Speed mode for 1 x 450x330mm tray using combined hot air, microwave and Speed.Plate contact heat.
• Maximum temperature: 260°C.
• Up to 9 programmable cooking steps per program.
• 24 fast programs: 12 Speed and 12 Bake.
• 384 Bake programs and 384 Speed programs for extensive menu flexibility.
• CHEFUNOX recipe library: select a product and the oven automatically sets all Bake parameters.
• SPEEDUNOX recipe library: select a product and the oven automatically sets all Speed parameters.
• ADAPTIVE.Cooking™: intelligently regulates cooking parameters to deliver repeatable results regardless of load.
• SMART.Preheating: automatically determines optimal preheat temperature and duration.
• AUTO.Soft: manages heat rise for more delicate product types.
• SPEED.Plus: generates and evenly distributes microwaves throughout the baking chamber.
• DRY.Plus: actively extracts humidity from the cooking chamber.
• AIR.Plus: multiple reversing fans with two speed settings for precise airflow control.
• Cooking chamber constructed from high-resistance AISI 304 stainless steel.
• Baking chamber with integrated tray supports.
• Drop-down door opening.
• 6-inch touch control panel.
• Multicoloured LED visual display of baking status.
• Crumb collection system integrated into the filter beneath the door for easy cleaning.
• Proximity door contact switch.
• Integrated Wi-Fi connectivity.
• Wi-Fi and USB support for downloading and uploading HACCP data.
• Wi-Fi and USB support for downloading and uploading programs.
• Electrical supply: 380-415 V, 3PH+N+E, 20A; power output: 6.5 kW, 16A CB.
• External dimensions: 600mm W x 797mm D x 541mm H.
• Italian engineered and manufactured by Unox.

Specifications

• Weight (kg): 259
• Shipping Weight: 89
• Packed Width (mm): 700.0
• Packed Height (mm): 600.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.336000000m3
