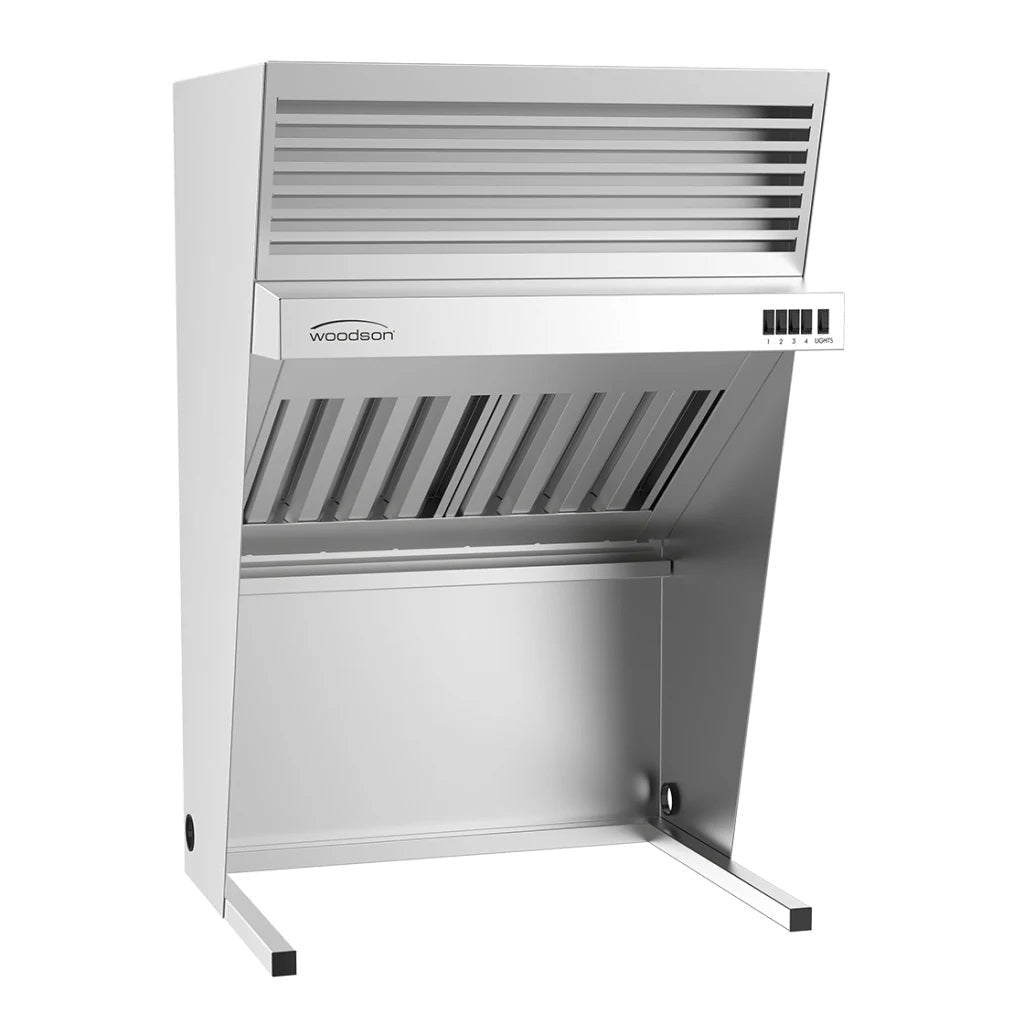

Woodson W.CHD1000 Countertop Ductless Exhaust Hood 1000mm

The Woodson W.CHD1000 is a 1000mm wide countertop ductless exhaust hood built for commercial kitchens and foodservice venues where a ducted extraction system is not practical or required under the National Construction Code. Powered via a standard 10 amp plug and lead, it offers a straightforward plug-and-play installation above benchtop electrical cooking appliances such as fryers, grills and conveyor ovens, making it well suited to cafes, bars and compact commercial kitchen environments. From revision E onwards, the unit satisfies NCC-2022 compliance obligations through both deemed-to-satisfy and performance solution pathways, with testing and certification covering both Australia and New Zealand.

Air is drawn upward through a multi-stage filtration system and returned to the workspace via front-facing louvres, removing grease, smoke and cooking emissions to support indoor air quality in accordance with NCC-2022: F6V1, provided the space has sufficient background ventilation. Heat and humidity generated during cooking must be managed through appropriate mechanical or natural ventilation supply in the space, consistent with NCC-2022: F6P4 and F6D6. This unit is approved solely for use with electrically powered cooking equipment; operation alongside gas-fired or solid-fuel appliances is strictly prohibited.

Key Benefits

• No external ducting is required, giving operators flexible placement above most benchtop electrical cooking equipment through a simple plug-and-play connection
• Holds NCC-2022 certification, giving operators confidence in regulatory compliance without the expense of a full ducted extraction installation
• Multi-stage filtration captures grease, smoke and cooking emissions, meaningfully improving air quality for kitchen staff during service
• Reduces greasy residue accumulating on surrounding benches, floors, walls and ceilings, lowering cleaning labour and maintenance costs
• Approved for use with electrical cooking equipment carrying a combined power rating of up to 10kW, covering a wide range of commercial benchtop appliances including fryers
• LED lighting and a multi-speed fan deliver practical illumination and adjustable extraction performance to suit varying cooking intensities
• Stainless steel construction throughout is durable and easy to clean, suited to the demands of a busy commercial kitchen environment
• Tested and certified for both the Australian and New Zealand markets, allowing operators in either country to deploy a single compliant unit

Key Features

• 1000mm wide countertop ductless exhaust hood with an equipment cavity of 980mm wide x 628mm deep x 790mm high
• Plug-and-play installation via supplied 10 amp plug and lead with no external ducting required
• Multi-stage filtration system draws air upward through filters and returns it to the kitchen through front-facing louvres above
• From revision E onwards, certified under NCC-2022 via both deemed-to-satisfy and performance solution compliance pathways
• Certified as a ductless recirculating solution operating independently of any extraction ductwork, with a reduced separation distance between the cooking surface and the filter
• Tested and certified for use in Australia and New Zealand
• Approved for operation with electrically powered cooking appliances, including fryers; use with gas-fired or solid-fuel burning equipment is not permitted
• Approved for a total connected electrical cooking load of up to 10kW
• Multi-stage filtration reduces airborne contaminants to meet indoor air quality limits under NCC-2022: F6V1, provided adequate background ventilation exists in the space
• The installation space must be supplied with sufficient mechanical or natural ventilation to manage heat and humidity in line with NCC-2022: F6P4 and F6D6
• LED interior lighting for product illumination
• Multi-speed fan for adjustable extraction performance
• Stainless steel construction throughout
• Benchtop/countertop mounting type
• Single phase electric, 1.0kW, 10 amps, 240V
• 12-month warranty

Specifications

• Width (mm): 1000
• Depth (mm): 660
• Height (mm): 1150
• Weight (kg): 90
• Colour: Stainless Steel
• Shipping Weight: 86
• Packed Width (mm): 1050.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 700.0
• Shipping Cubic: 0.882000000m3
• Power (kW): 1
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Power Rating: 1.0kW / 10 amps
• Power Supply: Single Phase
• Plate Width (mm): 1000
• Fuel Type: Electric
• Material: Stainless Steel
• Country of Origin: Australia
• Warranty (months): 12
• Installation Type: Countertop
• Temperature Control: Multi-Speed Fan
• Mounting Type: Benchtop
• Display Type: Parts and Labour
• Interior Lighting: LED
