Overview

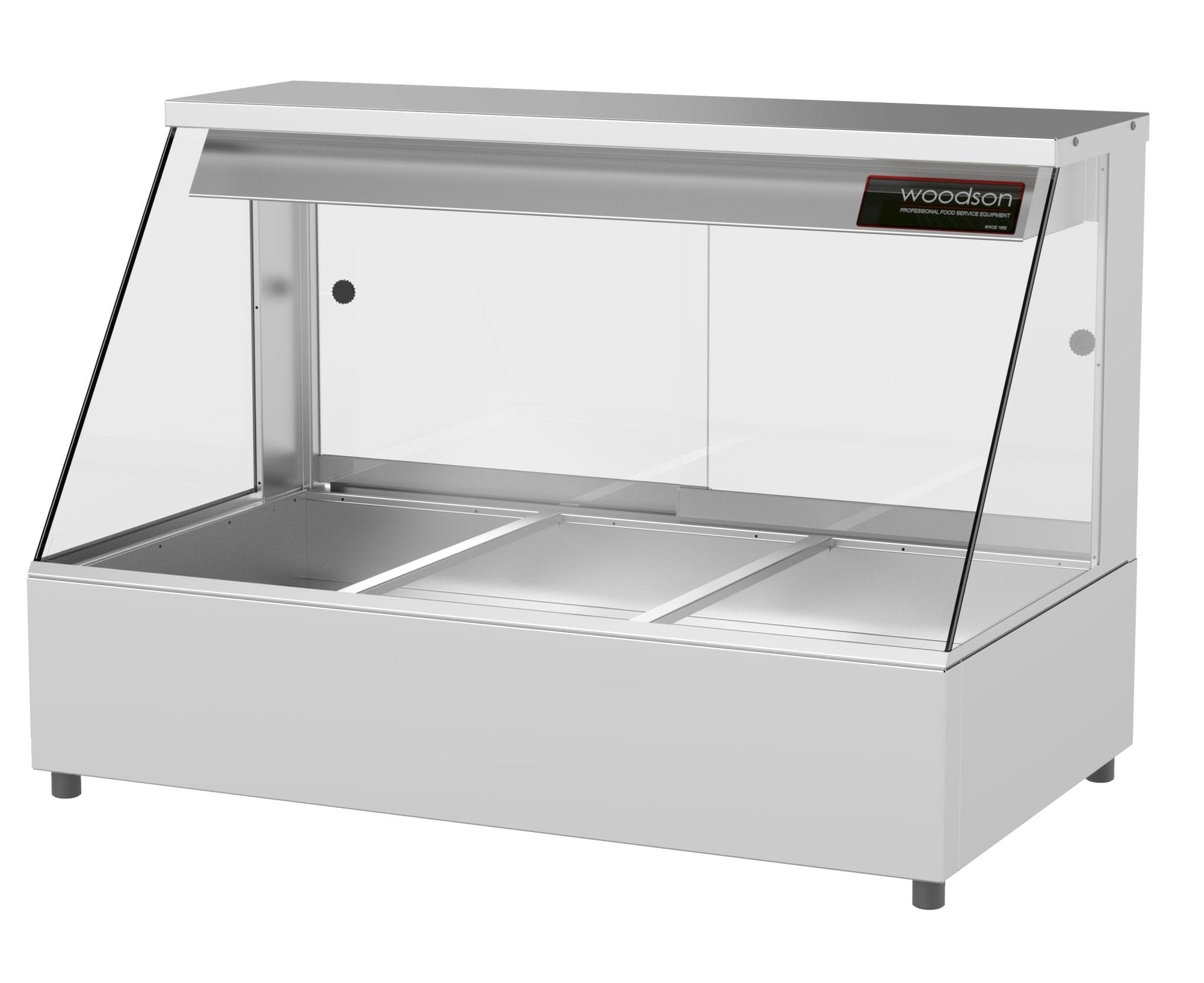

Woodson W.HFS23 Straight Glass Hot Food Display – 3 Bay, 1030mm

The Woodson W.HFS23 is a countertop straight glass hot food display purpose-built for front-of-house presentation in cafes, bakeries, restaurants, buffets, hotels and catering kitchens. Constructed from satin-finished, double-skin stainless steel with fully sealed toughened straight glass panels and rear sliding doors, the unit combines a hygienic, easy-clean build with clear product visibility that actively drives impulse sales.

Designed for wet bain marie operation, the W.HFS23 uses an air-insulated tank, an in-tank thermostat probe and multiple heating elements to maintain food evenly between 70 and 80°C without drying out dishes. Infrared overhead heat lamps supplement the bain marie system, while the energy-efficient double-skin construction keeps running costs down. The unit accommodates three 1/1 GN pans up to 100mm deep across its 3-bay, 2-row layout and runs on a standard 10A, 240V single-phase supply, making installation straightforward in virtually any service counter.

Key Benefits

• Wet bain marie heating maintains safe, even food temperatures across all three bays, keeping dishes moist and ready to serve without quality loss.
• Infrared heat lamps provide supplementary overhead warmth, ensuring hot food at the surface stays at safe holding temperature throughout service.
• In-tank thermostat probe delivers accurate temperature regulation between 70 and 80°C, reducing the risk of undercooling and supporting food safety compliance.
• Air-insulated, double-skin tank construction minimises heat loss and lowers energy consumption, reducing operating costs over long service periods.
• Straight toughened glass canopy gives customers an unobstructed view of the food display, encouraging impulse purchases at the point of sale.
• Rear sliding doors allow staff quick, easy access to pans for replenishment and service without disrupting the front display.
• Compact 1030mm footprint suits smaller service counters where space is at a premium without sacrificing a three-bay holding capacity.
• Satin-finished stainless steel construction throughout is durable, corrosion-resistant and simple to wipe down, supporting high hygiene standards in busy environments.
• Plug-and-lead 10A, 240V single-phase connection means no hard-wiring is required, allowing flexible placement anywhere on a service counter.

Key Features

• 3-bay, 2-row layout accommodating three 1/1 GN pans up to 100mm deep (pans sold separately)
• Satin-finished double-skin stainless steel construction throughout
• Fully sealed toughened straight glass canopy for clear, hygienic product display
• Rear sliding doors for easy staff access and replenishment
• Designed and recommended for wet bain marie operation
• Air-insulated tank for energy-efficient, even heat distribution
• Multiple heating elements ensure consistent temperature across all bays
• Infrared overhead heat lamps provide supplementary surface heating
• In-tank thermostat probe for accurate temperature control between 70 and 80°C
• Countertop (benchtop) installation type
• 2.4kW power rating; 10A, 240V single-phase plug-and-lead connection
• Australian designed and manufactured
• Note: not recommended for displaying chickens; refer to the Woodson W.HFH range for that application
• Designed for use with Woodson GN pans; compatibility with other brands' GN pans is not guaranteed
• Additional accessories sold separately

Specifications

• Width (mm): 1030
• Depth (mm): 600
• Height (mm): 722
• Weight (kg): 67
• Colour: Stainless Steel
• Power (kW): 2.4
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Power Rating: 2.4kW / 10amps
• Power Supply: Single Phase
• Material: Stainless Steel
• Door Type: Rear Sliding Doors
• Glass Type: Straight Toughened Glass
• Country of Origin: Australia
• Warranty (months): 12
• Temperature Range: 70-80°C
• Installation Type: Countertop
• Temperature Control: Thermostat with In-Tank Probe
• Mounting Type: Benchtop
• Display Type: Parts and Labour
• Interior Lighting: Infrared Heat Lamps
• Fuel Type: Electric
