Overview

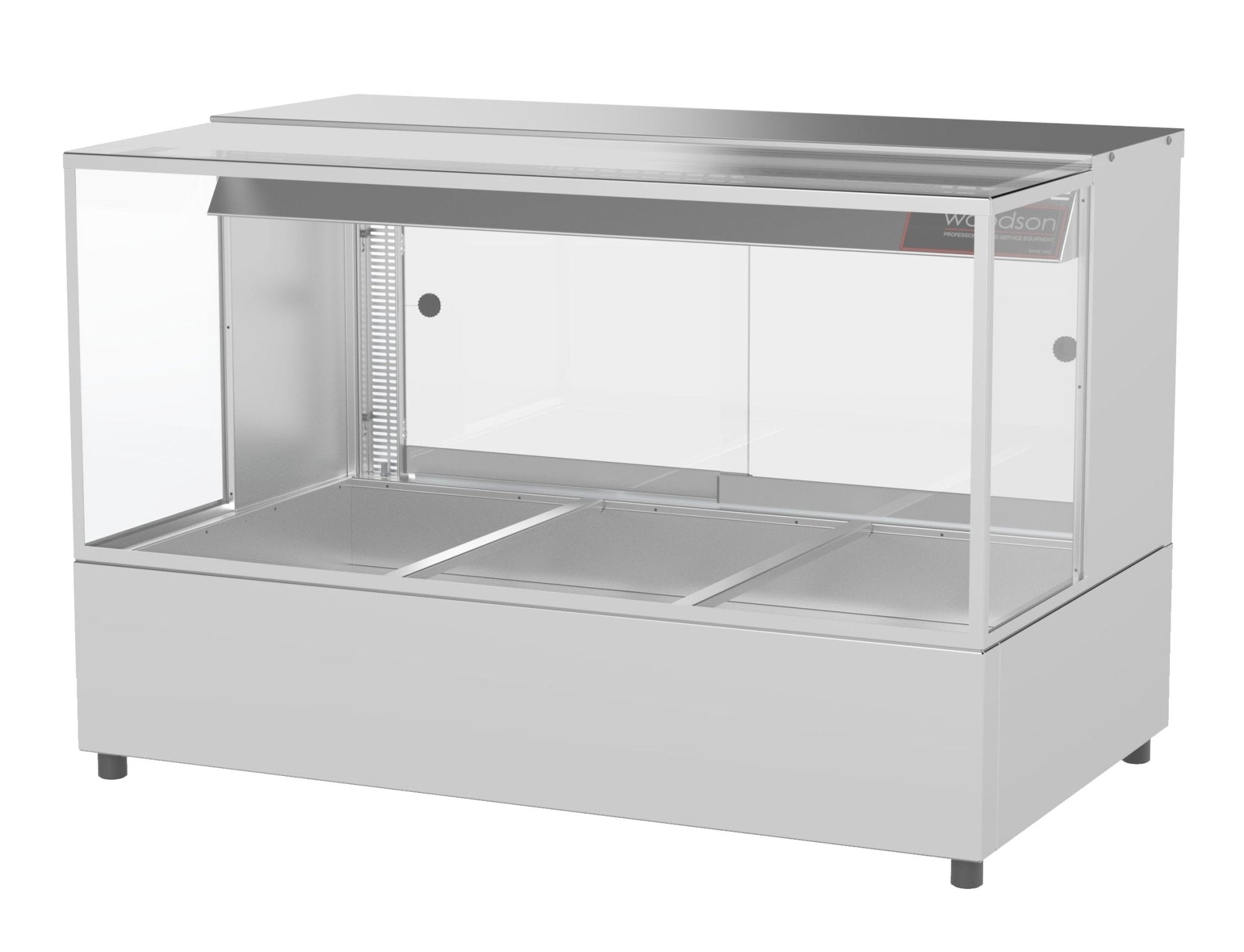

Woodson W.HFSQ23 3 Bay Square Glass Hot Food Display 1030mm

The Woodson W.HFSQ23 is a 3-bay, 2-row countertop hot food display designed for professional food presentation and holding in cafés, bakeries, takeaways, buffets, restaurants, and catering kitchens. Constructed from satin-finished double-skin stainless steel with toughened straight glass panels, the unit combines robust hygiene with an attractive square glass canopy profile that maximises product visibility and drives impulse sales.

Designed for wet operation, the W.HFSQ23 uses an air-insulated bain marie tank with multiple heating elements for even heat distribution, holding food consistently between 70 and 80°C. An in-tank temperature probe and thermostat provide accurate temperature regulation and contribute to lower running costs, making this a reliable, energy-efficient solution for busy service counters. Pans are not included and are sold separately.

Key Benefits

• Wet-heat bain marie operation keeps food moist and maintains safe serving temperatures without drying out dishes
• In-tank thermostat and temperature probe allow precise control, holding product between 70 and 80°C for food safety compliance
• Air-insulated double-skin tank reduces heat loss, lowering energy consumption and ongoing running costs
• Multiple heating elements distribute heat evenly across all three bays, preventing hot and cold spots during service
• Infrared overhead heat lamps supplement tank heating to keep the top of displayed food hot and visually appealing
• Square glass canopy maximises customer-facing visibility, helping to present pies, pastries, and hot meals attractively and encourage sales
• Rear sliding doors provide easy staff access for pan changes and cleaning while containing heat during service
• Satin-finished stainless steel construction is durable, hygienic, and straightforward to clean to commercial kitchen standards
• Plug-and-lead connection at 10A/240V means the unit can be operational immediately without the need for hardwired installation

Key Features

• 3-bay, 2-row configuration with a 1030mm wide footprint suited to service counters
• Square glass canopy profile for a modern, high-visibility presentation aesthetic
• Designed and recommended for wet bain marie operation
• Air-insulated, double-skin stainless steel tank for energy-efficient heat retention
• In-tank temperature probe and thermostat regulate holding temperature between 70 and 80°C
• Multiple heating elements provide even heat distribution across all bays
• Infrared overhead heat lamps assist in maintaining food temperature and appearance
• Toughened straight glass panels for safety and clear product visibility
• Rear sliding doors for convenient staff access during service
• Satin-finished double-skin stainless steel construction throughout
• Accepts 1/1 GN pans up to 100mm deep (pans sold separately)
• Designed for use with Woodson GN pans; compatibility with other brands' pans is not guaranteed
• 10A plug-and-lead electrical connection; 240V, 2.4kW
• Not recommended for displaying whole chickens; refer to Woodson W.HFH models for that application
• Available in a range of sizes from 2 to 6 bays within the same square glass series

Specifications

• Width (mm): 1030
• Depth (mm): 600
• Height (mm): 686
• Weight (kg): 67
• Power (kW): 2.4
• Power Type: Electric
• Amps (A): 10
• Voltage (V): 240
• Plug Type: Plug & Lead
• Voltage/Phase: 10A, 240V plug & lead
• Glass Type: Square Glass
