Overview

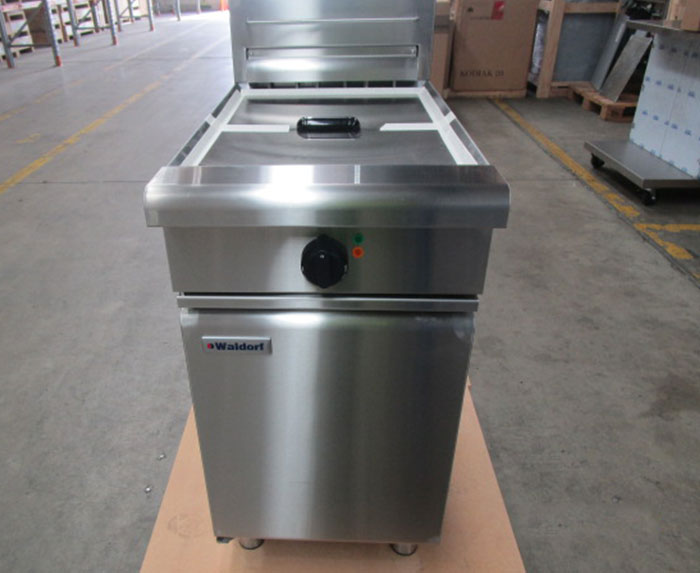

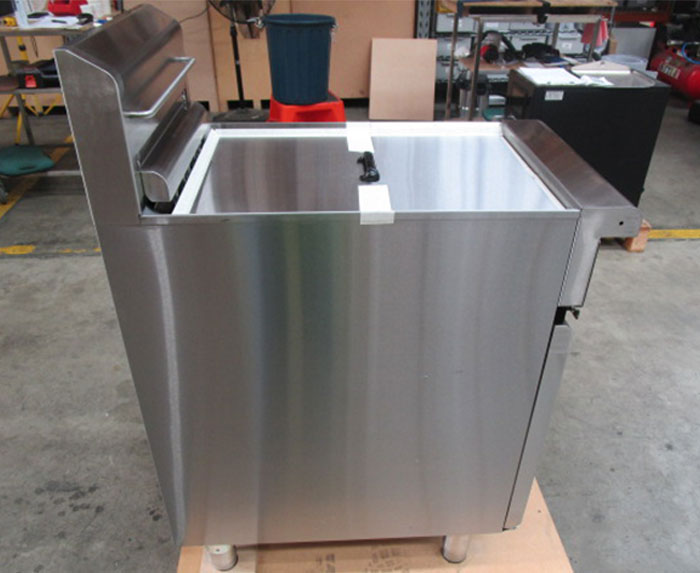

Waldorf FN8127E 800 Series 450mm Single Pan Electric Fryer

The Waldorf FN8127E is a 450mm single pan electric fryer from the Waldorf 800 Series, engineered for high-volume commercial kitchens that demand consistent output and reliable performance. With a 27-litre oil capacity, a production rate of 31kg per hour, and three 5.66kW stainless steel heating elements delivering a combined 17kW, this fryer offers rapid heat recovery and precise thermostatic temperature control across a range of 145 to 195 degrees Celsius.

Constructed throughout in 304 stainless steel, the FN8127E features a fully modular design that simplifies installation, daily cleaning, and servicing. Mechanical controls keep operation straightforward for kitchen staff, while the hinge-out counterbalanced heating elements and 32mm drain valve make routine maintenance quick and practical. The unit is manufactured in New Zealand and carries a 24-month warranty, backed by Waldorf's long-standing reputation in commercial cooking equipment.

Key Benefits

• High 31kg per hour production rate sustains output during peak service periods without compromising food quality.
• Rapid heat recovery from three independent 5.66kW elements minimises wait times between batches.
• Thermostatic temperature control across 145 to 195 degrees Celsius ensures consistent frying results across different menu items.
• Hinge-out counterbalanced heating elements allow quick access for cleaning and servicing, reducing kitchen downtime.
• Fully modular construction integrates seamlessly into an 800 Series suite and simplifies future reconfiguration.
• The 32mm drain valve speeds up oil changes and minimises mess during cleaning routines.
• Mechanical controls are intuitive and durable, reducing the likelihood of control-related faults in a demanding kitchen environment.
• Supplied with two standard baskets and a stainless steel lid so the unit is ready to operate from day one.
• All-304 stainless steel construction across the pan, splashback, side panels, and door resists corrosion and stands up to heavy daily use.

Key Features

• 450mm wide single pan configuration, compatible with the Waldorf 800 Series modular lineup.
• 27-litre oil capacity suitable for high-volume frying operations.
• Production rate of 31kg per hour.
• Three 5.66kW stainless steel heating elements, totalling 17kW output.
• Electrical supply: 17kW, 400-415Vac, 50/60Hz, 3P+N+E (415V three phase).
• Thermostatic temperature control, 145 to 195 degrees Celsius, with analogue display.
• Mechanical controls for straightforward, reliable day-to-day operation.
• Hinge-out counterbalanced heating elements for easy cleaning and servicing access.
• 32mm (1-1/4 inch) drain valve for efficient oil drainage.
• Stainless steel open pan construction with bull nose welded 1.5mm 304 stainless steel.
• Splashback in 1.5mm 304 stainless steel.
• Side panels in 1.2mm 304 stainless steel.
• Double skin door with 0.9mm 304 stainless steel exterior.
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet.
• Supplied standard with two fry baskets and a stainless steel lid.
• Fully modular design for straightforward installation and integration.
• Low-back model variant (FNL) available.
• Splashback included; no undershelf.
• Country of origin: New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 116
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 27
• Temperature Range: 145-195°C
• Fuel Type: Electric
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 17kW, 400-415Vac, 50/60hz, 3P+N+E
• Temperature Control: Thermostatic
• Display Type: Analog
